English
AeroLight Manual
MODEL NAME
-
VSA100
-
VSA150
-
VSAW200
-
VSAW400
KEY FEATURES
VSA100/VSA150
-
2-IN-1 GROW LIGHT : Patented grow light design with integrated highly reliable circulation fan.
-
BETTER CIRCULATION : With the central placement of the fan you have better air, CO₂ circulation, and humidity.
-
UNIFORM LIGHT & AIR : Creative hollow light design and wind guide provide uniform light and wind on plants' canopy.
-
SMART CONTROL : Smart settings for LEDs and fan like sunrise/sunset and natural wind via the GrowHub Controller.
-
TUNABLE SPECTRA : Tunable spectra for SEEDLING, VEG and FLOWER without power loss.
-
UV & FR-ENHANCED : Full spectrum with and UV-A&FR added for better harvest and quality.
VSAW200/VSAW400
-
2-IN-1 GROW LIGHT : Patented grow light design with integrated highly reliable circulation fan.
-
BETTER CIRCULATION : With the central placement of the fan you have better air, CO₂ circulation, and humidity.
-
UNIFORM LIGHT & AIR : Creative hollow light design and wind guide provide uniform light and wind on plants' canopy.
-
SMART CONTROL : Smart settings for LEDs and fan like sunrise/sunset and natural wind via the GrowHub Controller.
-
TUNABLE SPECTRA : Tunable spectra for SEEDLING, VEG and FLOWER without power loss; Samsung with UV, FR.
-
UV & FR-ENHANCED : Full spectrum with and UV-A&FR added for better harvest and quality.
-
FOLDABLE : Foldable design with 2 angle-adjustable wings provides various light distributions.
PRODUCT CONTENTS
VSA100/VSA150
| Image | Name | Quantity |
|---|---|---|
|
LED Light |
1pc |
|

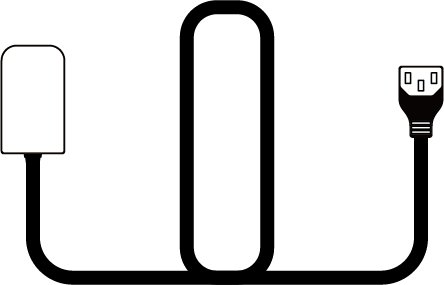

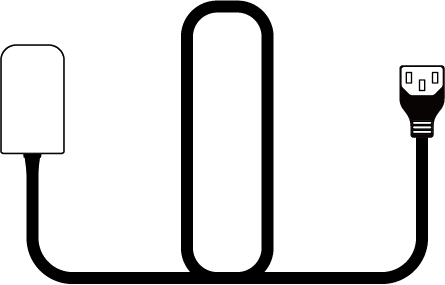

Power Cord |
1pc |
|

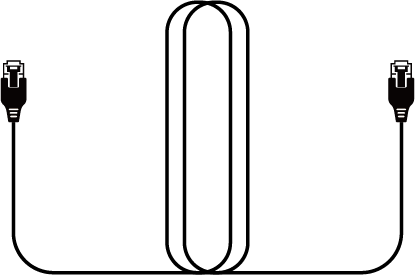

RJ45 Network Cable |
1pc |
|

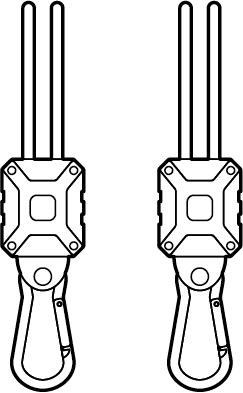

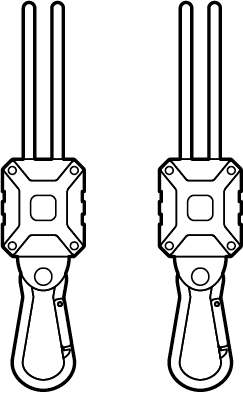

Rope Hanger |
2pcs |
|

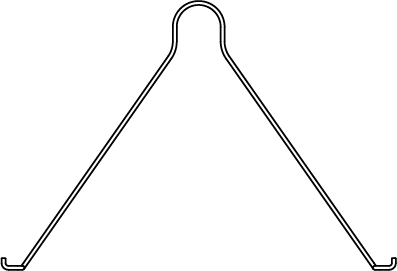

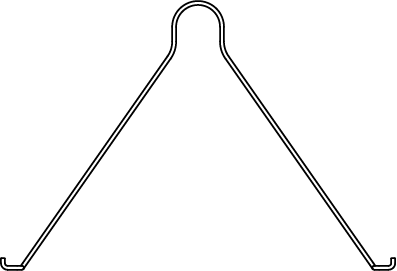

Hook |
2pcs |
|

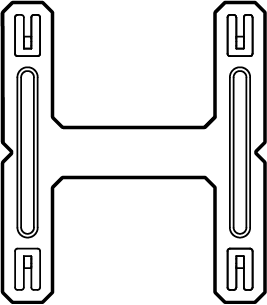

H-Type connector * |
1pc |
|
Hex key wrentch * |
1pc |
VSAW200/VSAW400
| Image | Name | Quantity |
|---|---|---|
|
400W LED Light |
1pc |
|
Power Cord |
1pc |
|

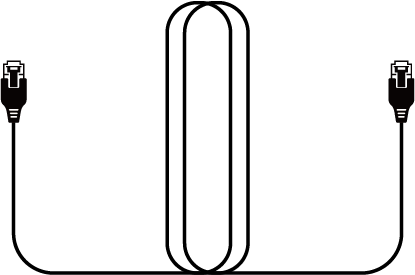

RJ45 Network Cable |
1pc |
|
Rope Hanger |
2pcs |
|
Hook |
2pcs |

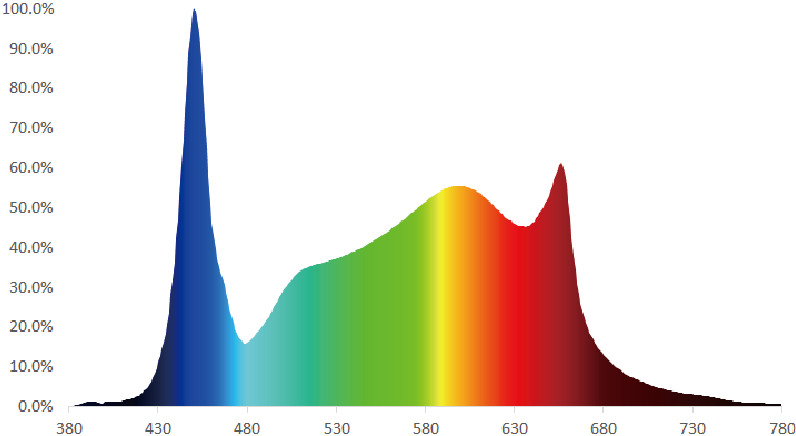

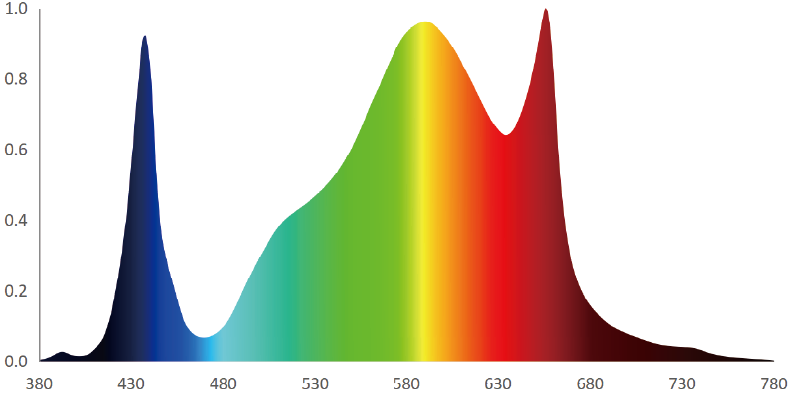

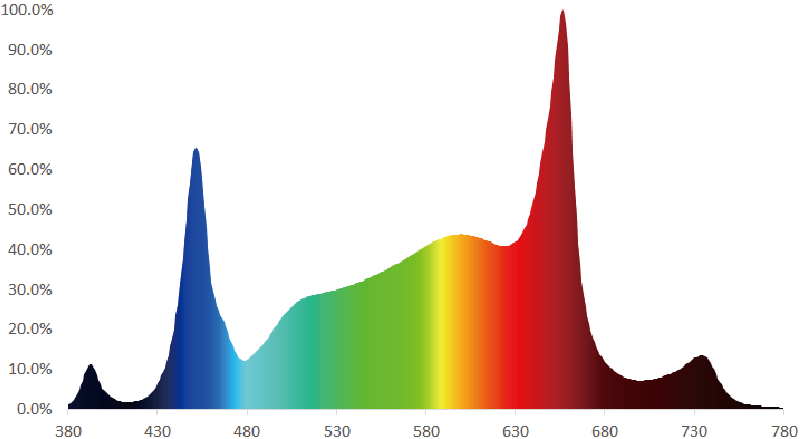

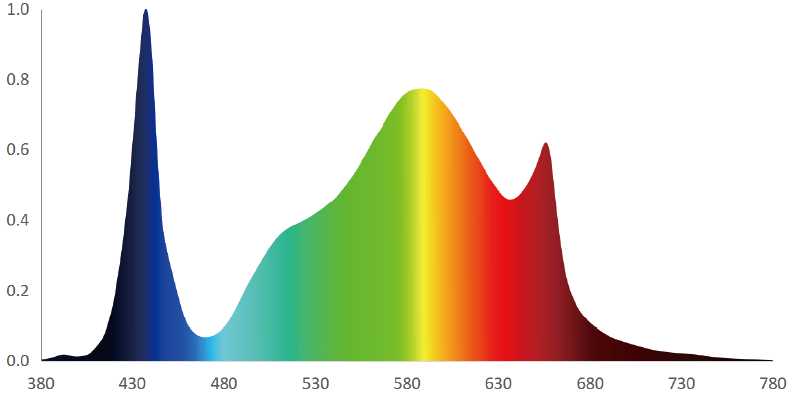

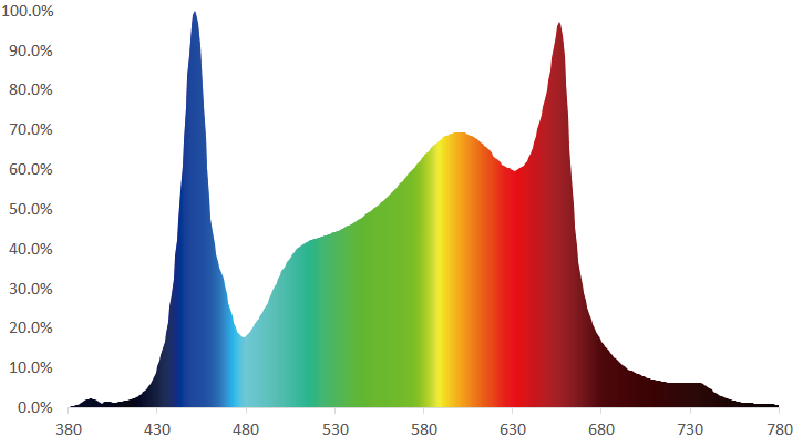

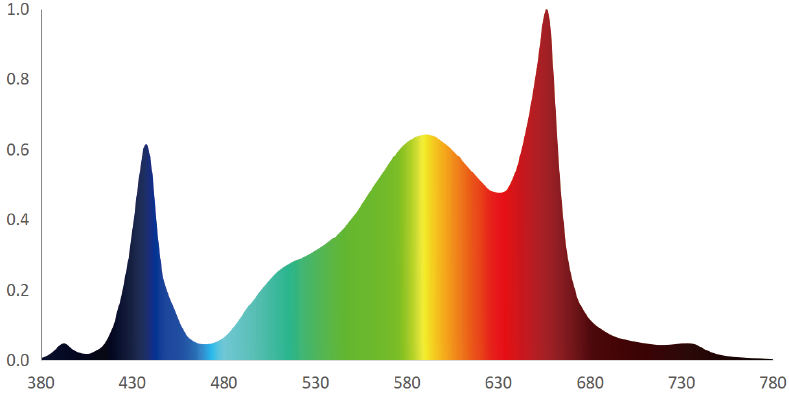

SPECTRUM
The AeroLight Wing is spectrum-tunable and provides 3 spectral ranges for different growth stages (programmed via the GrowHub).
VSA100/VSA150/VSAW200
| Spectrum | Stage | Description |
|---|---|---|
|
Seedling |
More blue light promotes rooting and prevents overstretching. |
|
Veg |
Balanced spectrum for leaves growing. |
|
Flower |
Rich in 660nm red, 450nm blue and 730nm far-red light promote budding & flowering; UV enhanced for better quality. |
VSAW400
| Spectrum | Stage | Description |
|---|---|---|
|
Seedling |
More blue light promotes rooting and prevents overstretching. |
|
Veg |
Balanced spectrum for leaves growing. |
|
Flower |
Rich in 660nm red and 730nm far-red light promote budding & flowering; UV enhanced for better quality. |
DIMENSIONS
-

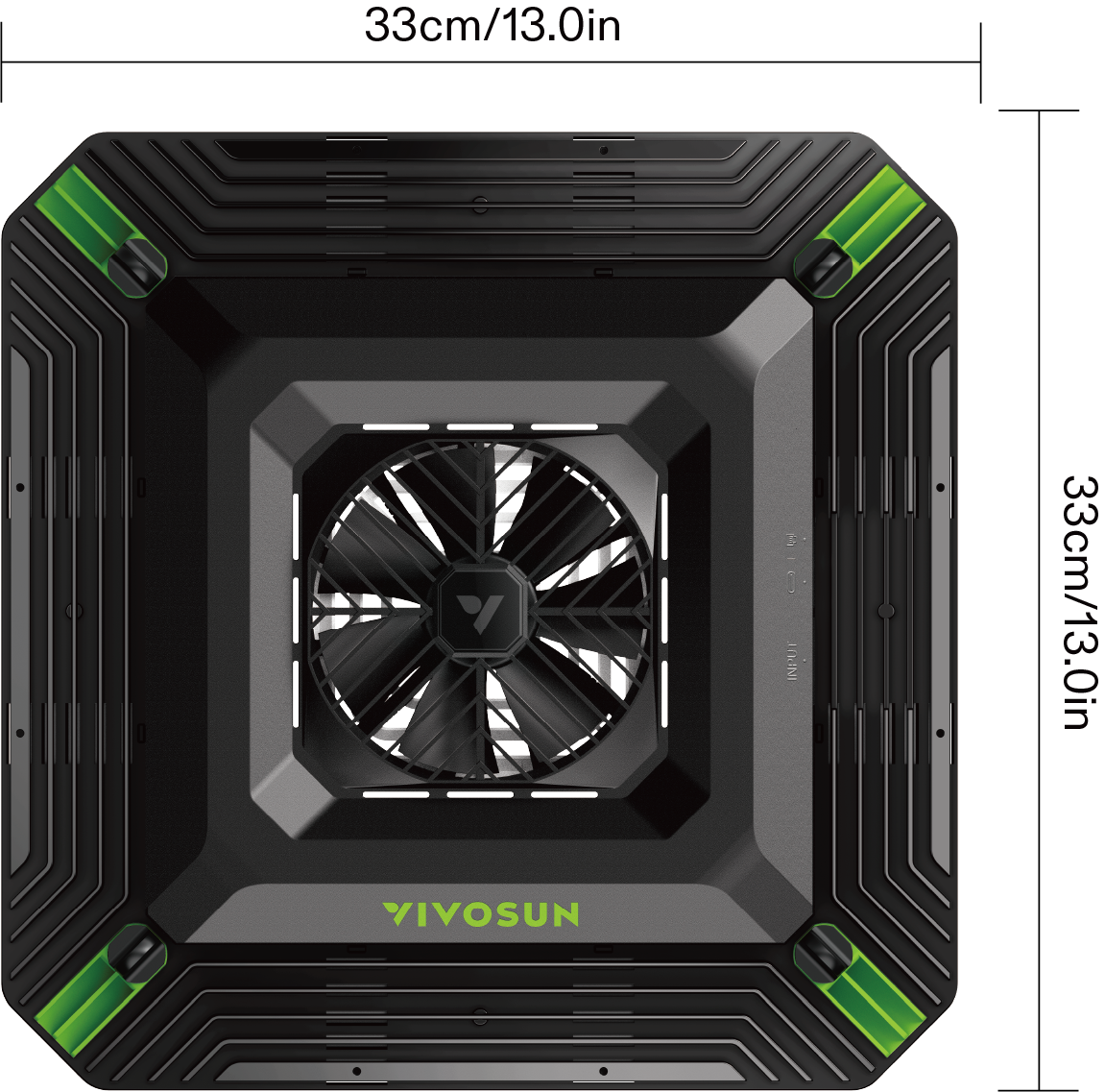

VSA-100
|
|

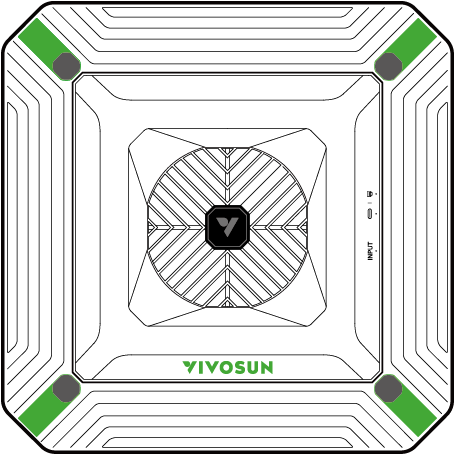

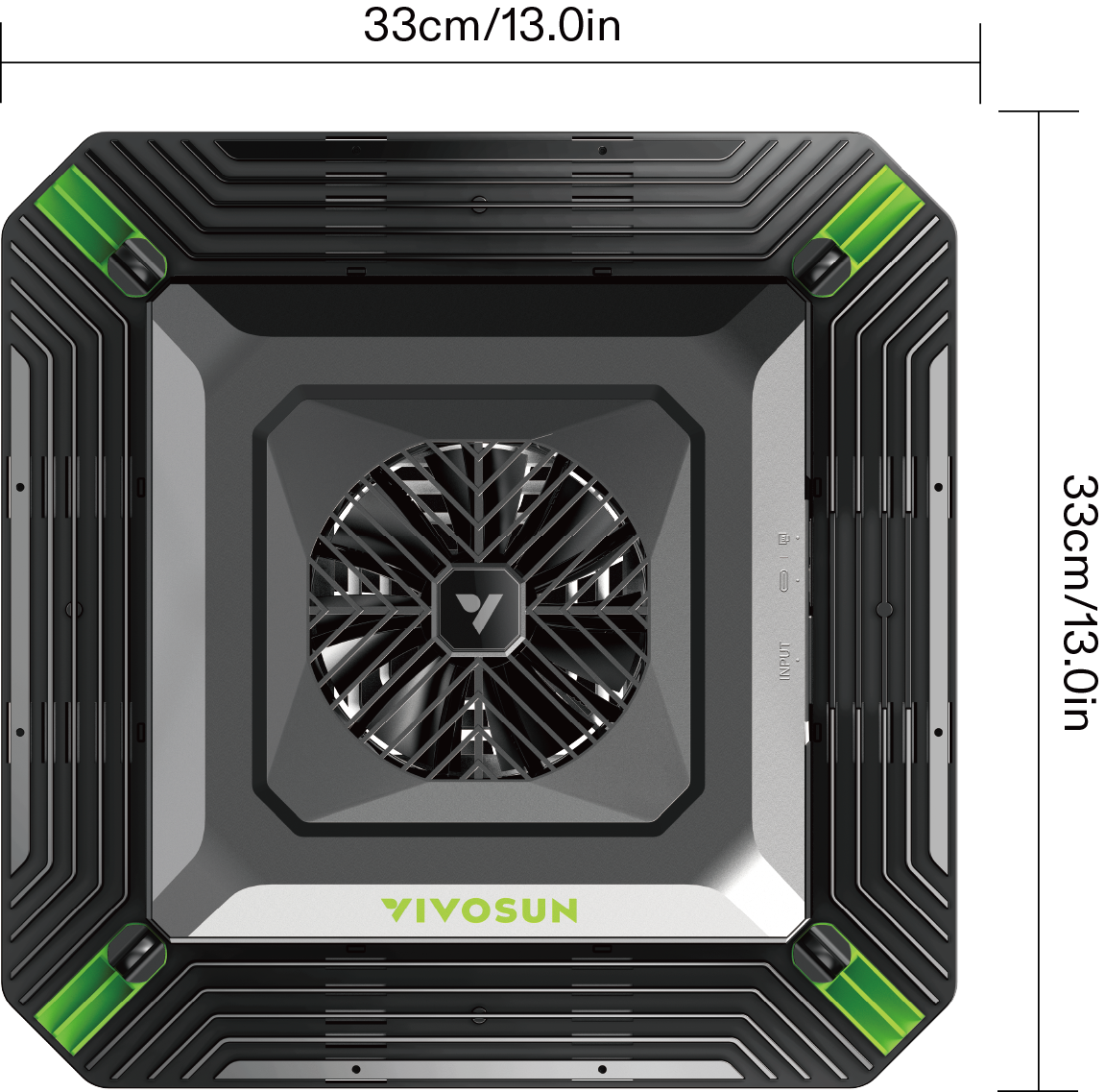

Top View |

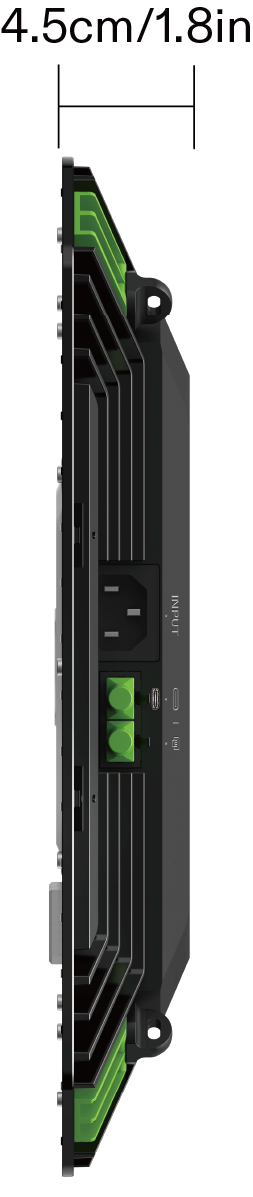

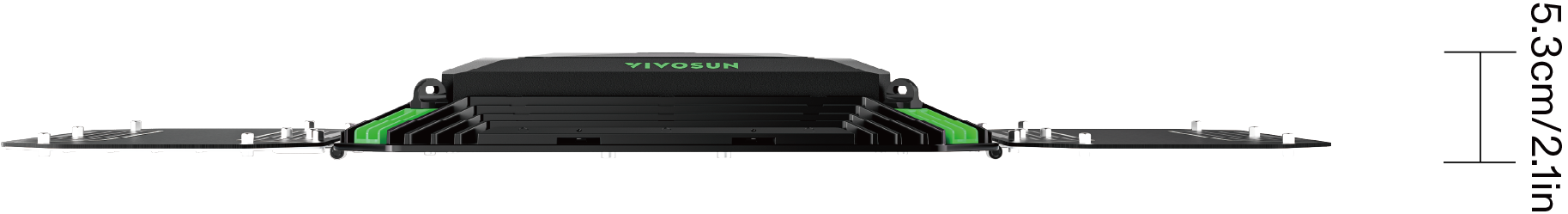

Side View |
-
VSA150
|
|
Top View |
Side View |
-

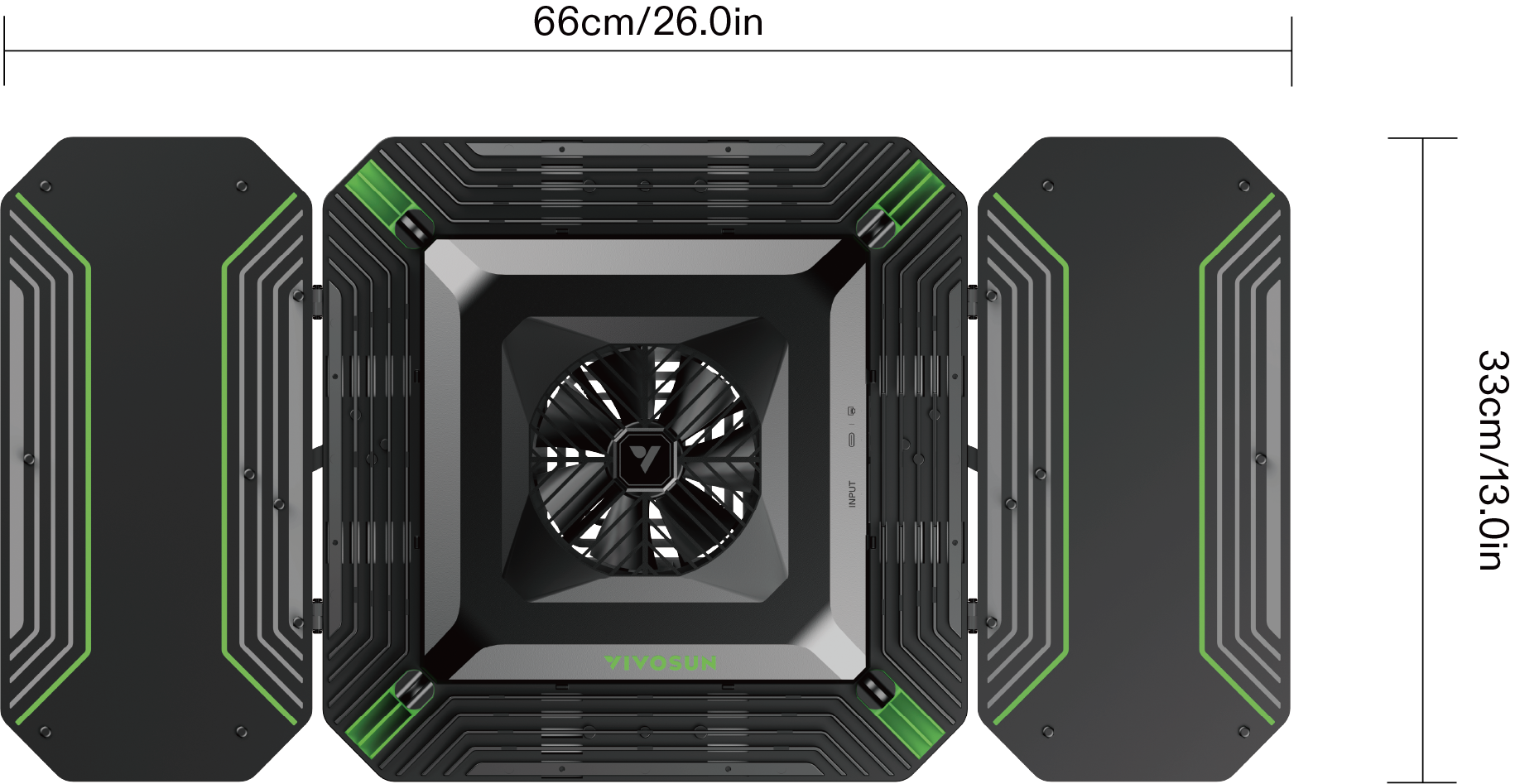

VSAW200
|

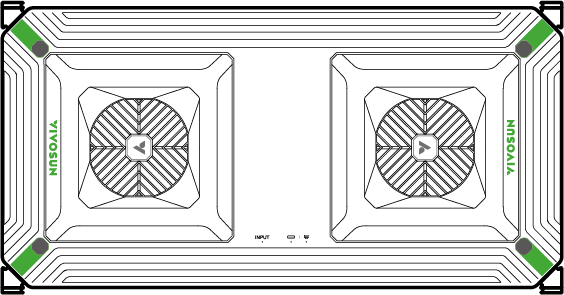

Top View |
|
Side View |
-

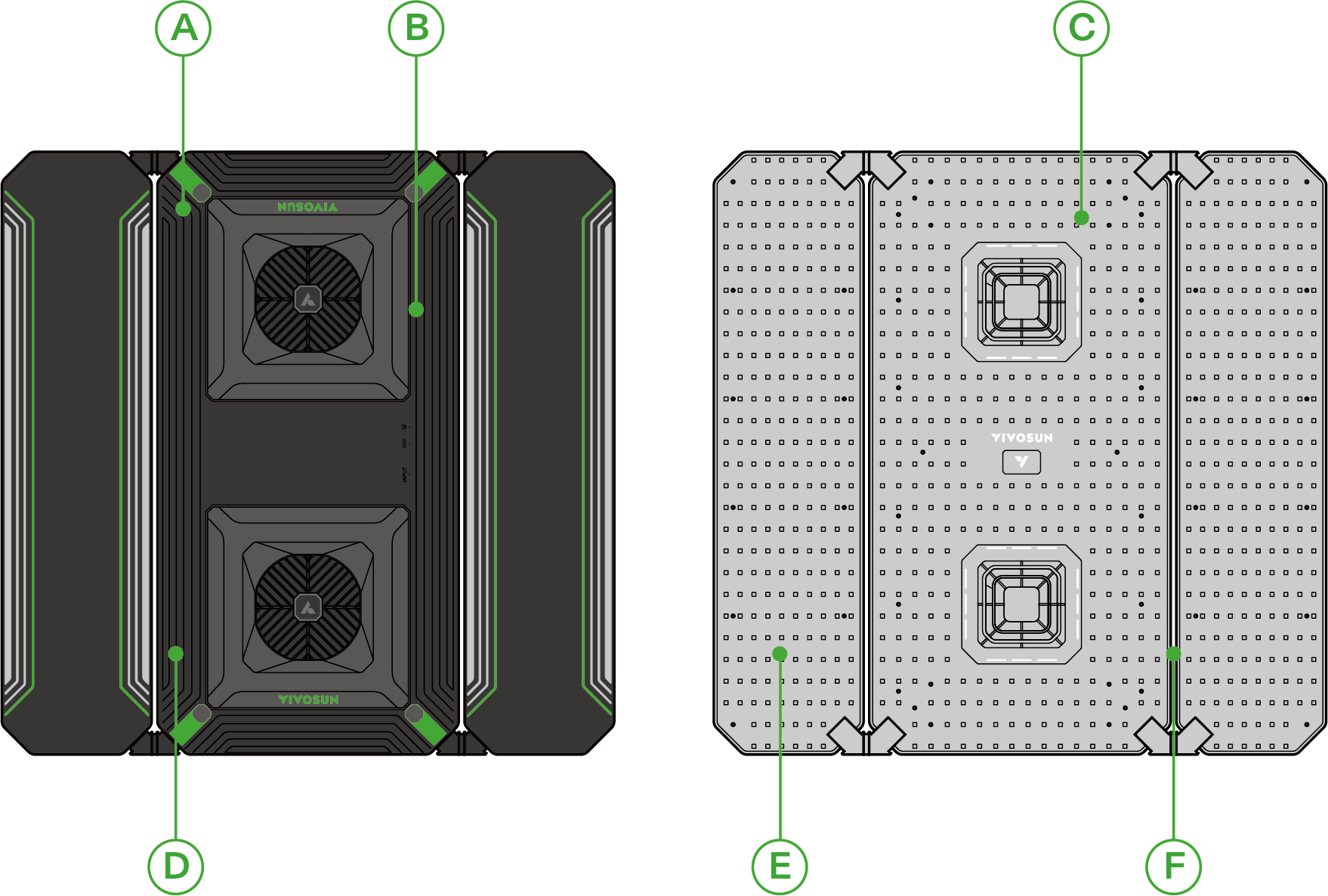

VSAW400
|
|

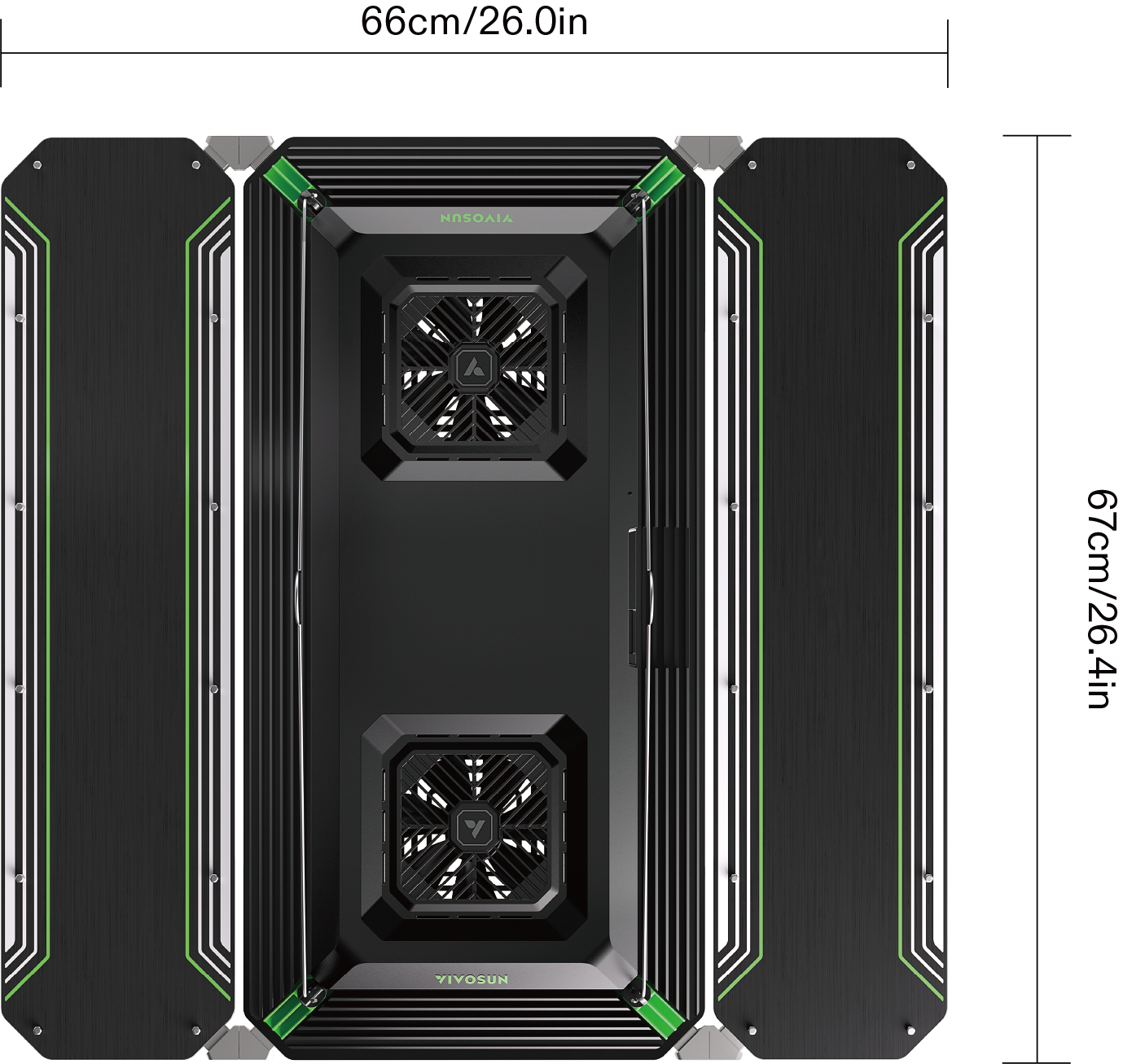

Top View |

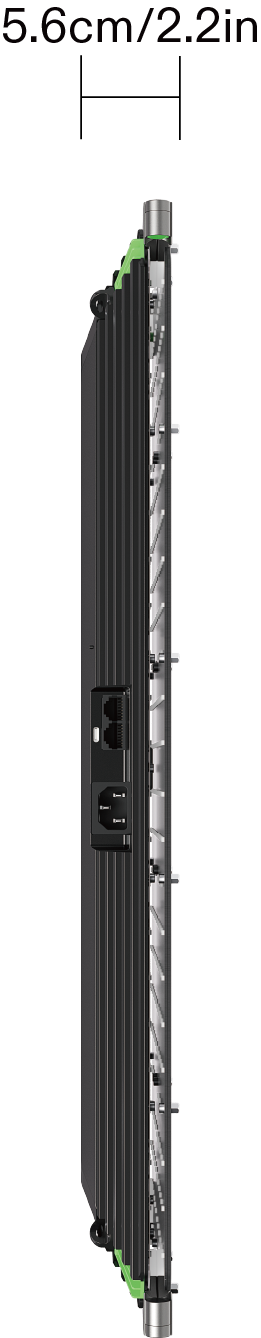

Side View |
SPECIFICATIONS
| VSA100 | VSA150 | VSAW200 | VSAW400 | ||
|---|---|---|---|---|---|
Dimensions |
33cmx33cmx4.5cm 13''x13''x1.8'' |
33cmx33cmx5.3cm 13''x13''x2.1'' |
66cmx33cmx5.3cm 26''x13''x2.1'' |
66cmx67cmx5.6cm 26''x26.4''x2.2'' |
|
Weight |
5.7 lb./2.6 kg |
6.3 lb./2.86 kg |
8.7 lb./3.95 kg |
16.82lb./7.63kg |
|
Input Voltage |
120-240Vac/50-60Hz |
||||
Power Factor |
>0.9 |
||||
Input Power |
100W |
150W |
200W |
400W |
|
Light |
LED Source |
White, 660nm Deep Red, 730nm Far Red, 450nm Blue, 395nm UVA |
|||
Spectrum |
Full Spectrum; 380nm-780nm, rich 660nm with FR and UVA Spectrum tunable (Via GrowHub and VIVOSUN app) |
||||
Light Distribution |
120° |
Adjustable |
|||
Dimming |
GrowHub: 25%/50%/75%/100%/OFF Vivosun APP: 25%-100%/OFF |
||||
Daisy Chaining |
14 |
7 |
7 |
12 |
|
Lifespan |
>50,000 hours |
||||
Fan |
Bearing |
Dual Ball Bearing |
|||
Speed |
2200 RPM. |
||||
Airflow |
84 CFM |
168 CFM |
|||
Noise Level |
33 db(A) |
66 db(A) |
|||
Certifications |
ETL,CE,FCC and IP65 |
||||
INSTALLATION
INSTALLATION OPTIONS
Option 1: Pass the rope hangers through the LED’s hooks, and then fix the other end of rope hangers to the ceiling.

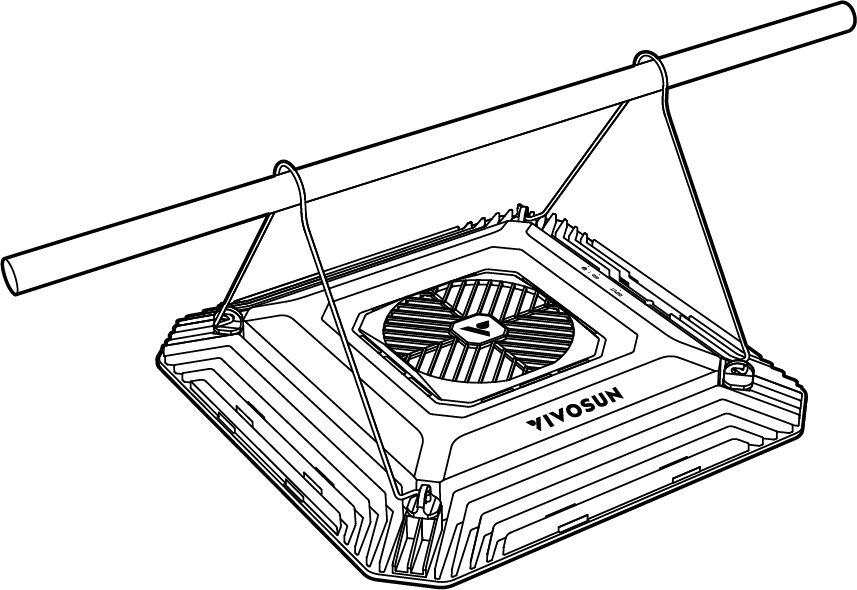

Option 2: Remove the hooks from the LEDs, then fit them onto the ceiling bracket before installing them back onto the LED.

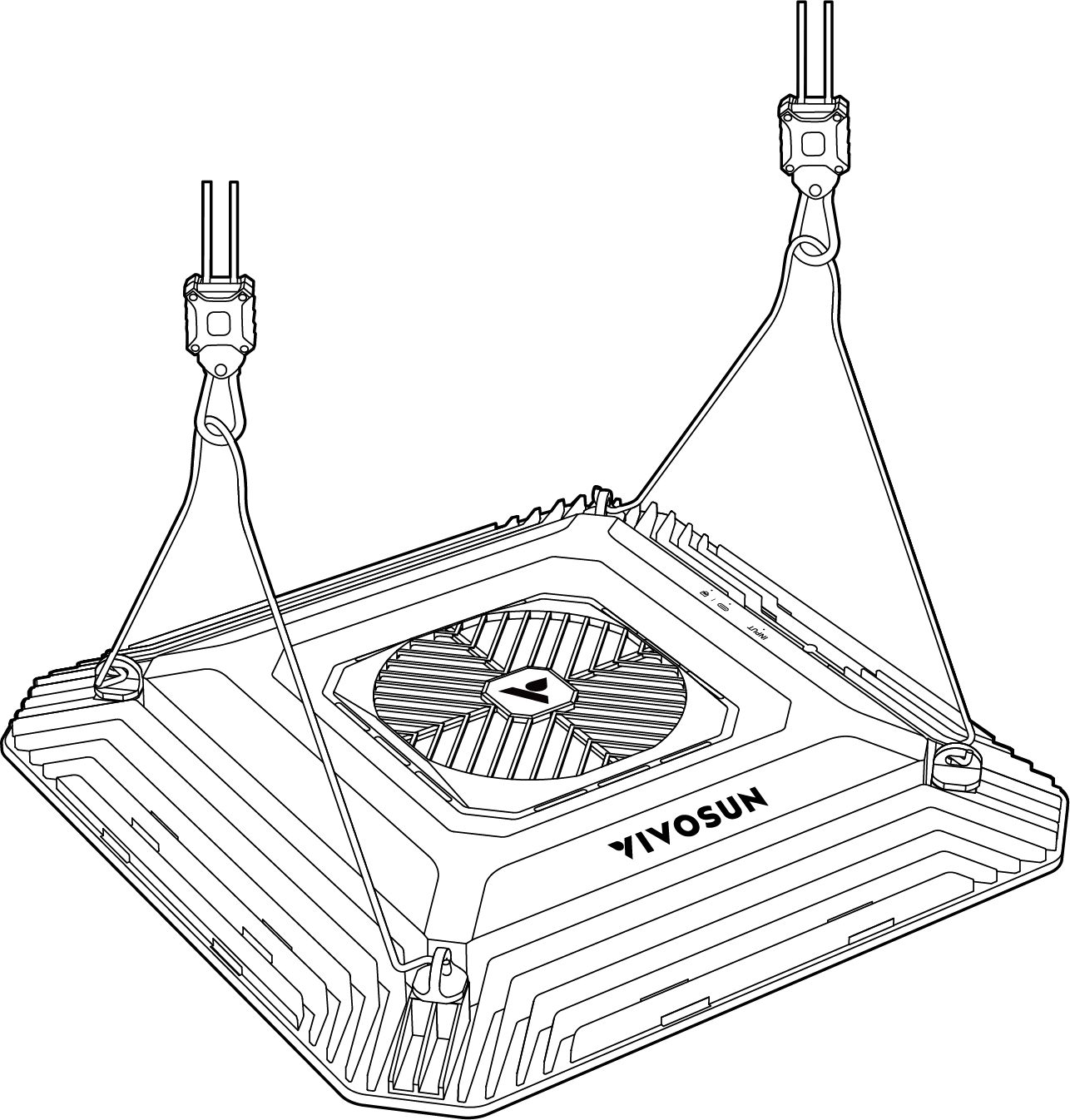

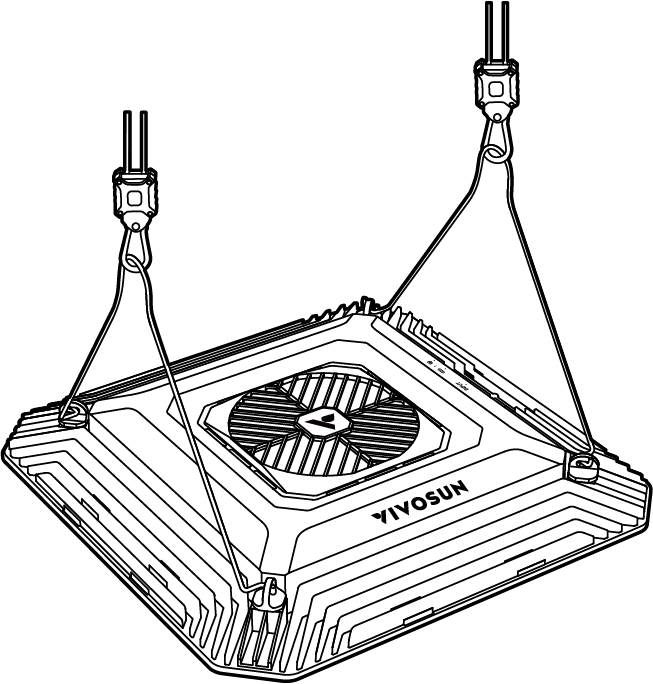

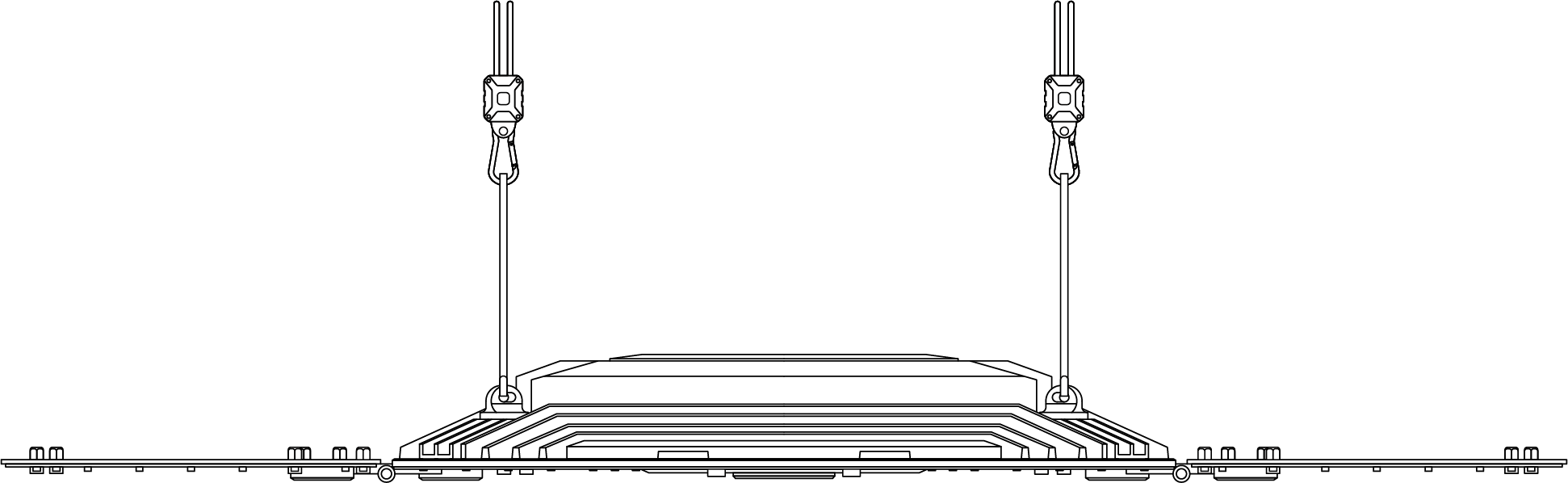

STEP 1

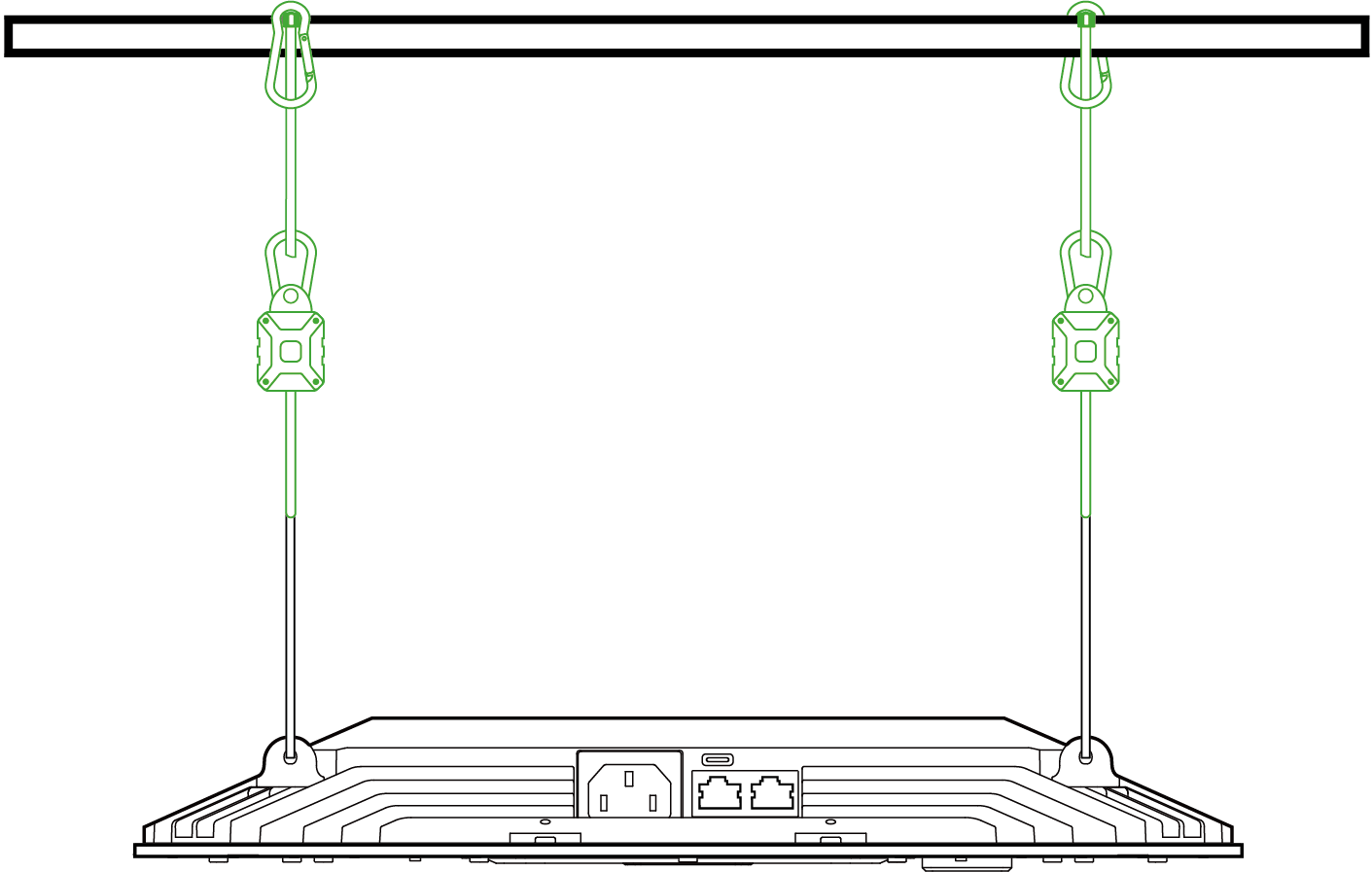

Attach the wire ropes to the frame of the AeroLight. Next, clip the carabiners of the rope hangers to the wire ropes.
STEP 2
Loop the other end of the rope hangers around the crossbeam as shown in the diagram. Lock the carabiners to the rope to secure the grow light to the pole.
STEP 3
Adjust the height of your grow light by pressing the buttons on the rope hangers and lifting until you find the correct height for your grow light.
STEP 4
For VSAW200 & VSAW400, please unfold the light board and adjust to an appropriate angle.

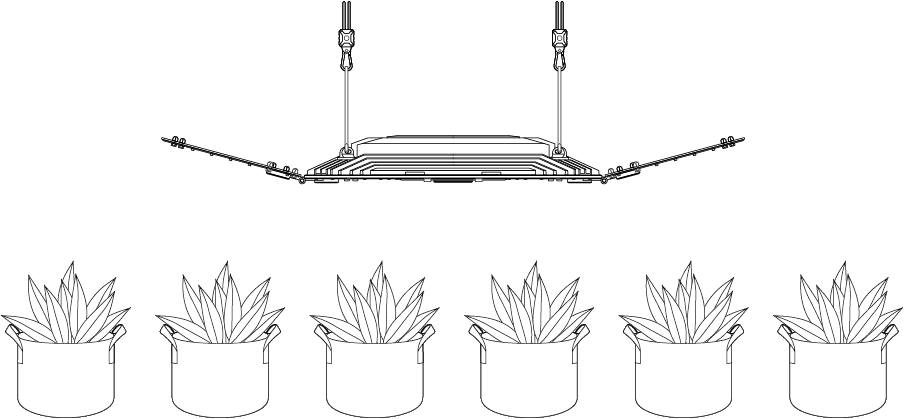

ADJUSTING THE LIGHT DISTRIBUTION
Adjust the angle of the light board on the side to change the light distribution for larger coverage or higher light intensity for different grow stages.
Image |
Stage |
Description |
|

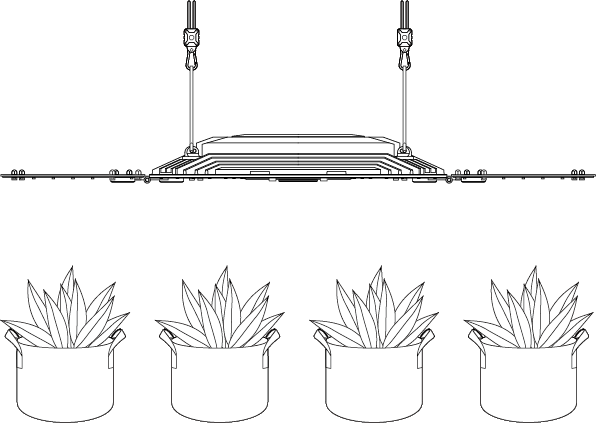

STANDARD |
Standard light coverage and uniformity. |
|
WIDTH |
Larger light coverage with more light for plants on the sides of your lights through improved coverage area. Better for seedling and vegetative stages of growth. |
|

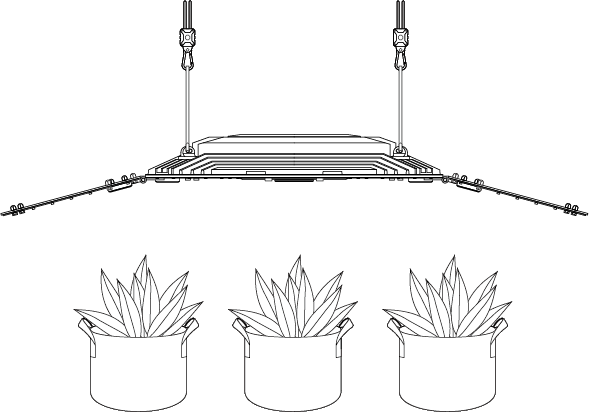

NARROW |
Higher light intensity with smaller light coverage. Better for the flowering stage of growth. |

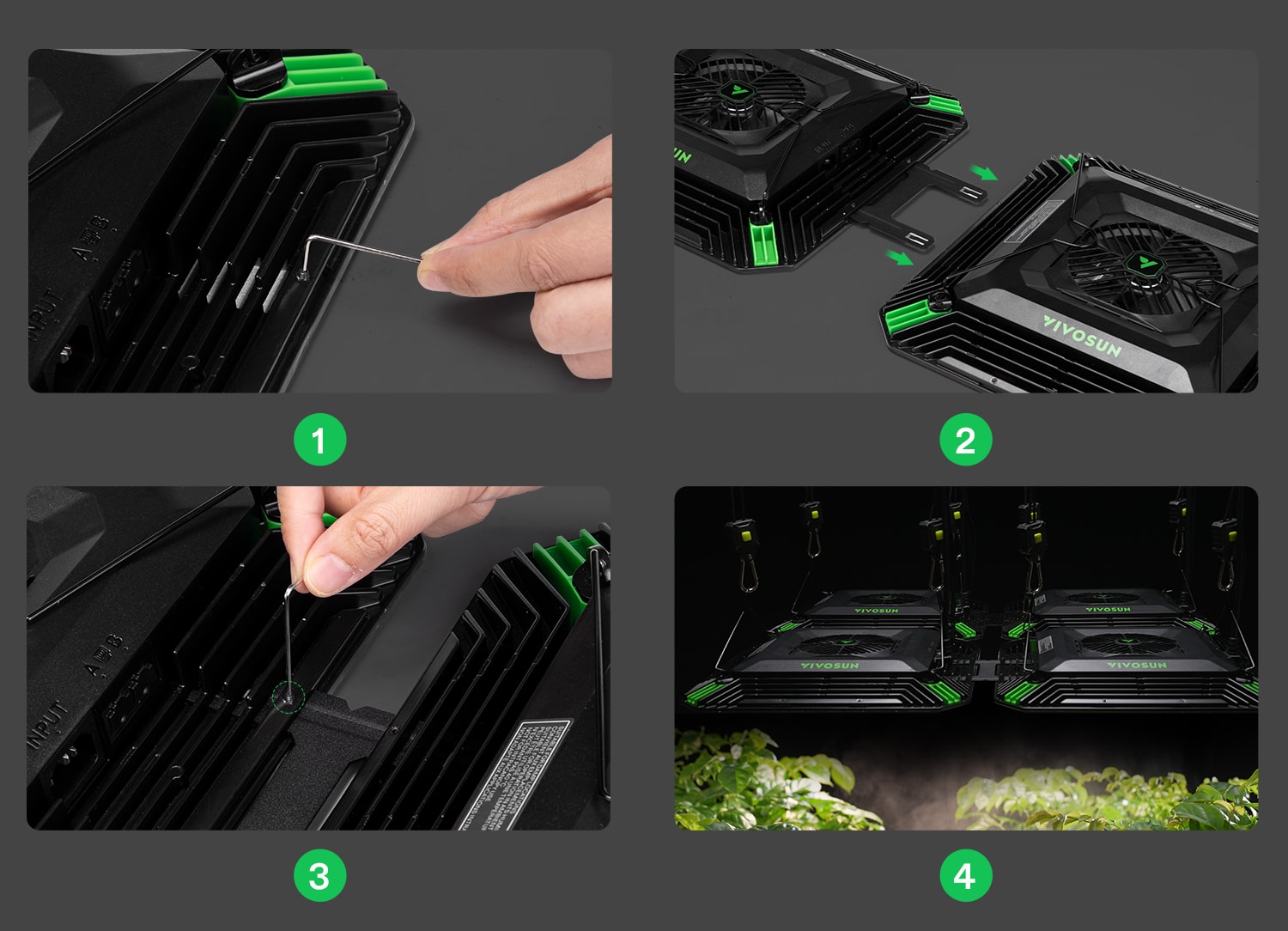

H-Type Connector for MuItipIe Light Connection
-
Loosen the two screws on one side of each light.
-
lnsert the H bracket between the two lights and adjust to the distance you want.
-
Tighten the 4 screws to secure the H bracket in place.
-
Clip the rope hangers on the lamp’s hooks and then hang the light.

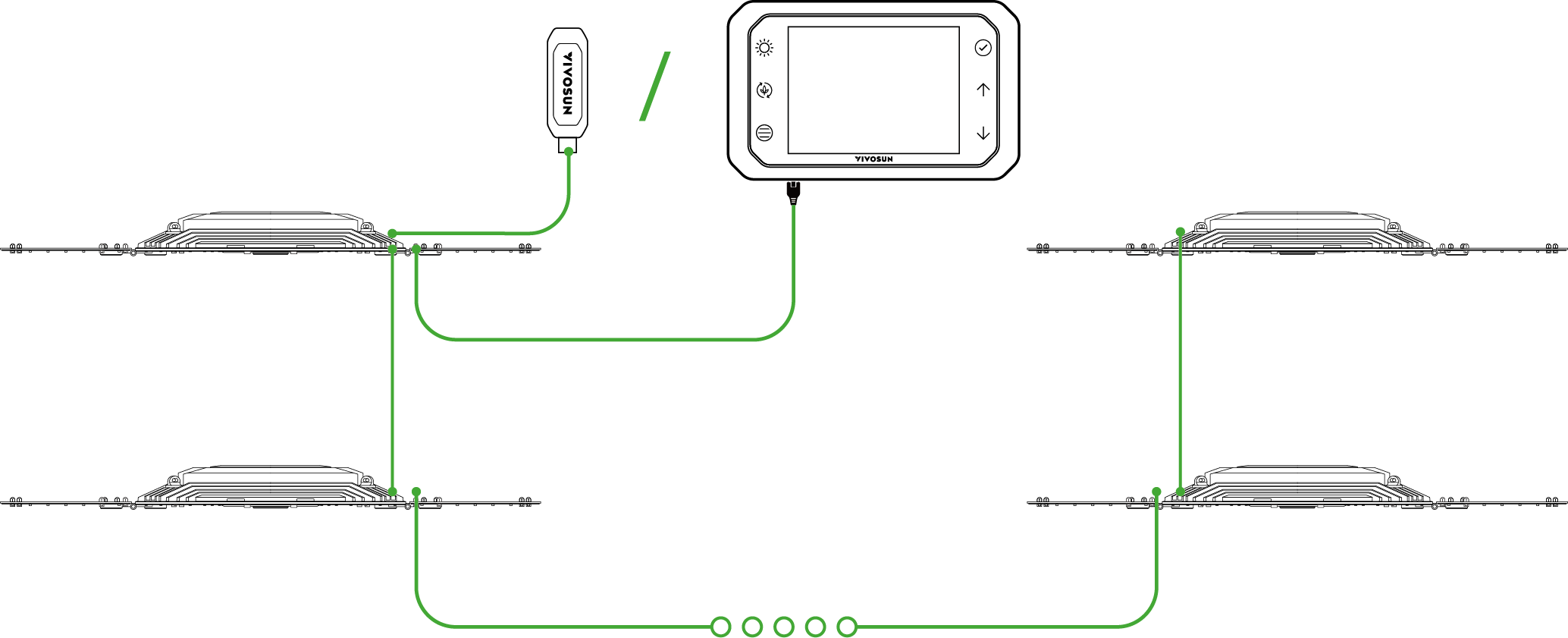

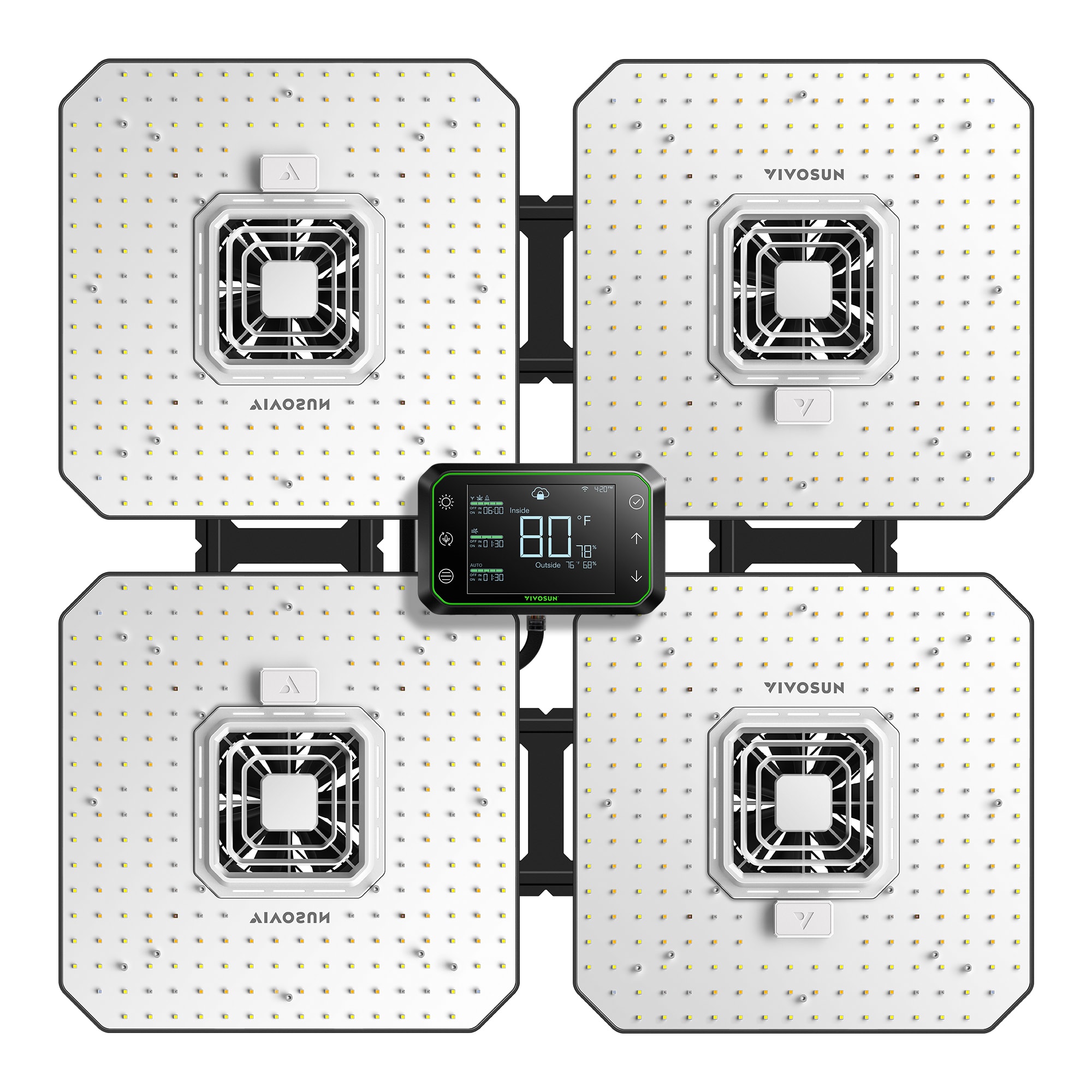

Connection to Controller and Multiple Lights
Connect multiple AeroLights with RJ45 cables, and the first light to a Vivosun GrowHub E42A+/E42A/E25 to control all the lights for dimming, spectrum tuning and ON/OFF cycle setting. Each light needs to connect the AC power separately and the GrowHub controller only needs to connect to an AeroLight to run. Please see the VIVOSUN GrowHub controller manual for information about light control and more.
When connecting to E42A/E42A+, please ensure your Aerolight is connected to the RJ45 port or Type C to RJ11 & RJ45 coverter, using a standard RJ45 cable. When connecting to E25, please use the Type-C port.
GrowHub E25 Manual :
GrowHub E42A Manual :
GrowHub E42A+ Manual :
APPLICATION
SUGGESTED HANGING DISTANCE & SUGGESTED LIGHTING TIME
Product |
Seedling |
Veg |
Early Flower |
Late Flower |
Tent Size |
|
PPFD Target |
150-250 |
300-500 |
500-700 |
700-1000 |
||
Time |
18h |
18h |
12h |
12h |
||
VSA100 |
Distance |
24" |
18" |
12" |
12" |
2’x2' |
Dimming Level |
50% |
75% |
75% |
100% |
||
VSA150 |
Distance |
24" |
18" |
14" |
14" |
2’x2' |
Dimming Level |
25% |
50% |
75% |
100% |
||
VSAW200 |
Distance |
24" |
18" |
12" |
12" |
2’x4' |
Dimming Level |
50% |
75% |
75% |
100% |
||
VSAW400 |
Distance |
24" |
20" |
14" |
14" |
4’x4' |
Dimming Level |
50% |
75% |
75% |
100% |
||
Distance: Light to canopy distance. |
||||||
Set the LED power on high and place the light further away from your plants to cover a wider area, or set the LED at a lower power and place the light closer to your plants for less coverage but a more eco-friendly solution.
WARRANTY INFORMATION
VIVOSUN provides a 3-year warranty against defects on all AeroLight purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.
Our warranty covers the replacement or refund of purchases that exhibit material defects within three years of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility.
This policy does not extend to products that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.
Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This 3-year warranty reflects our confidence in the durability of our products under normal use.
If any product defects are found, customers are encouraged to contact us immediately. Your satisfaction is our priority, and we are committed to resolving any issues in a professional and timely manner.
WARNING
-
This appliance can be used by children aged 8 years and above, as well as by individuals with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, provided they have been supervised or instructed on the safe use of the appliance and understand the associated hazards.
-
Children should not play with the appliance.
-
User maintenance should not be carried out by children without supervision.
-
Keep the appliance and its cord out of reach of children under 8 years old.
-
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
-
Never touch the plug or outlet if your hands are wet.
-
Use only the cable provided with the device.
-
Acceptable operating temperatures range from -20°C to 40°C (-4°F to 104°F).
-
Don’t place the device in the microwave.
-
Avoid looking directly at the lights when they are turned on.
-
Do not insert objects into the fan blades.
-
Don’t cover the fan or spray anything on it.
-
Don’t insert fingers or objects into the gaps between the light boards.
-
Avoid touching the LED diodes when adjusting the light board.
-
Don’t adjust the angle of the light board beyond the specified limits (Aerolight Wing).
-
Don’t use water or any detergent to clean the product.
DO NOT dispose of this product with your regular trash. Electrical appliances contain hazardous materials that can harm the environment if not disposed of properly.
Please contact your local government for information on nearby drop-off centers or recycling programs that accept electronic waste.
