vivosun

Smart Grow Tent Kit Manual

For your convenience, you can change the interface language using the menu in the top right corner of the screen ( 7dfa65b15ea3a3f5351c4bd054d338d2 ) .

MODEL NAME

VSK-GIYS224
VSK-GIYS276
VSK-GIYS336
VSK-GIYS425
VSK-GIYS448

SAFETY INFORMATION

Please read the following information carefully before using. Failure to observe these safety instructions may result in serious injury and will release VIVOSUN of all liability and void all product warranties.

Before commencing the installation, operation, and maintenance of this product kit, we strongly urge you to thoroughly read and adhere to the instructions provided in this manual, as well as the manuals for each individual device included within the kit.
Make sure your AC power source conforms to the electrical requirements of each device of this product kit.
Ensure that you verify and adhere to any local laws and regulations governing the installation and operation of this product, as they may stipulate additional safety requirements.
DO NOT use the devices in this kit in outdoor areas or within hazardous locations, such as those in proximity to flammable, explosive, or corrosive chemicals, or in wet environments.
DO NOT put fingers or other objects into fans.
DO NOT cover the inlet or outlet of the fans. DO NOT cover the power cords with rugs or other materials.
DO NOT look directly at the LED grow light. Wear appropriate glasses while the light is operating.
Before installation, maintenance, or relocation, be sure to unplug and power off the devices.
If your device or power cord is damaged, stop using the device and contact us immediately for service. Disassembly or modifications of devices without VIVOSUN’s permission may cause damage and may void the warranty.

DO NOT dispose of this product with your regular trash. Electrical appliances contain hazardous materials that can harm the environment if not disposed of properly.

Please contact your local government for information on nearby drop-off centers or recycling programs that accept electronic waste.

PRODUCT CONTENTS

Image	Name	Box Number
	Grow Tent	Box A
	Lumalight	Box B
	GrowHub Controller E42A+	Box C
	AeroZesh G Duct Fan	Box D
	Carbon Filter	Box E
	Prefilter	Box E
	Ducting and Clamps	Box F
	5 Gal. Grow Bags	Box G
	Elastic Trellis Net	Box H
	Vent Covers	Box H
	Garden Twist Ties	Box H
	Aluminum Ducting Tape	Box H
	Pruning Shears	Box H


Name

Box Number

debbc6a30b7f0f9c72488f8051f42ac1

Grow Tent

Box A

a10395d79802745cbf9525d2c4d06e2d

Lumalight

Box B

e523f6090f9ccf5b174db7111e450970

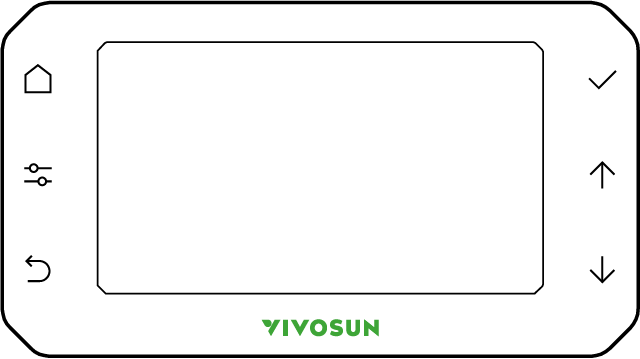

GrowHub Controller E42A+

Box C

07c0e3943f90aa867139426aa34245e6

AeroZesh G Duct Fan

Box D

8c8d5bd715a09d832456c45c92d80a46

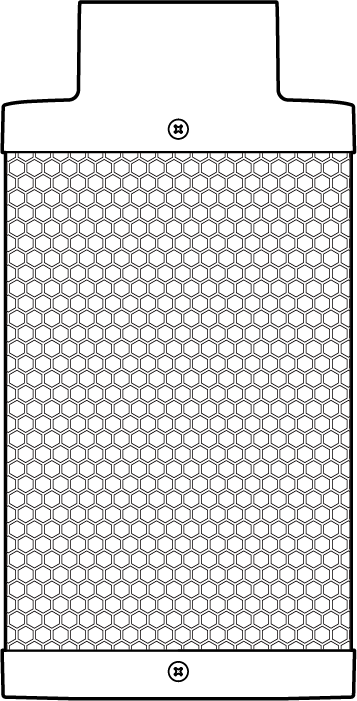

Carbon Filter

Box E

bb588569e1ca08199fa8320e427d73f4

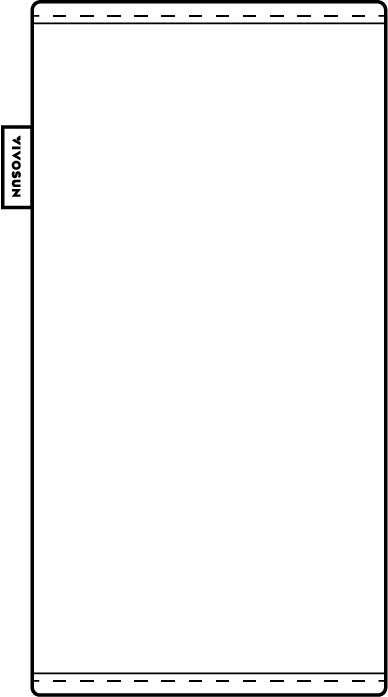

Prefilter

Box E

63f43d8fa9e885477ea5d1d40e679269

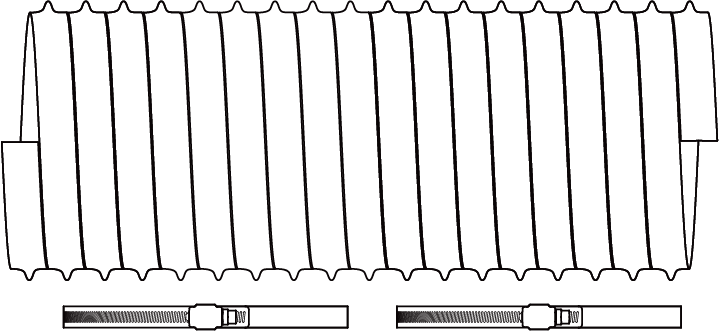

Ducting and Clamps

Box F

036457dab170ea6adfcc8f6ff0b4f74b

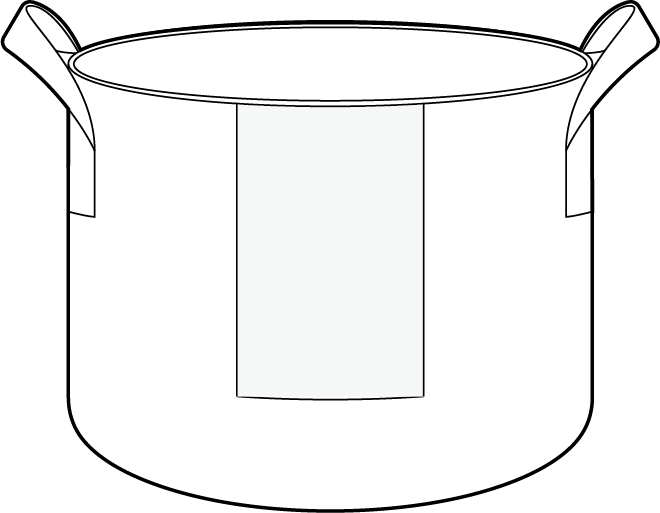

5 Gal. Grow Bags

Box G

568e9006dfed5c76af892b1210250c24

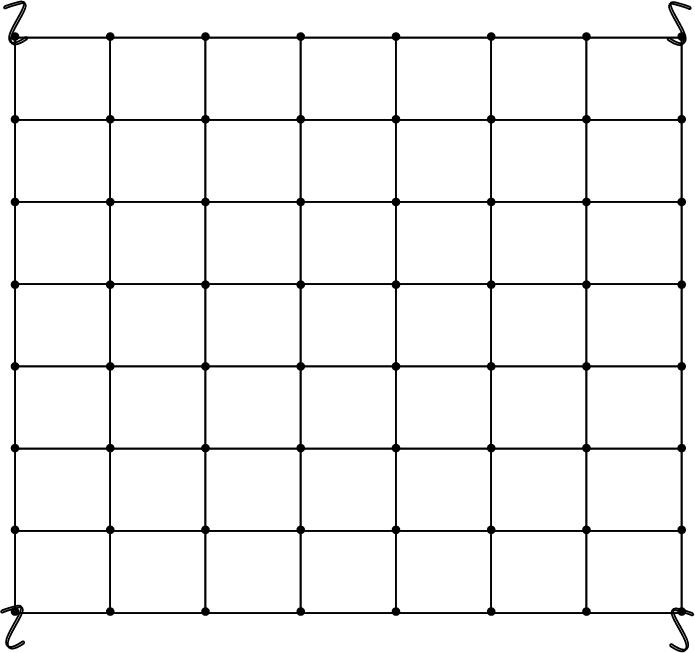

Elastic Trellis Net

Box H

09c57c52d20e16ff5f5d329c953937e0

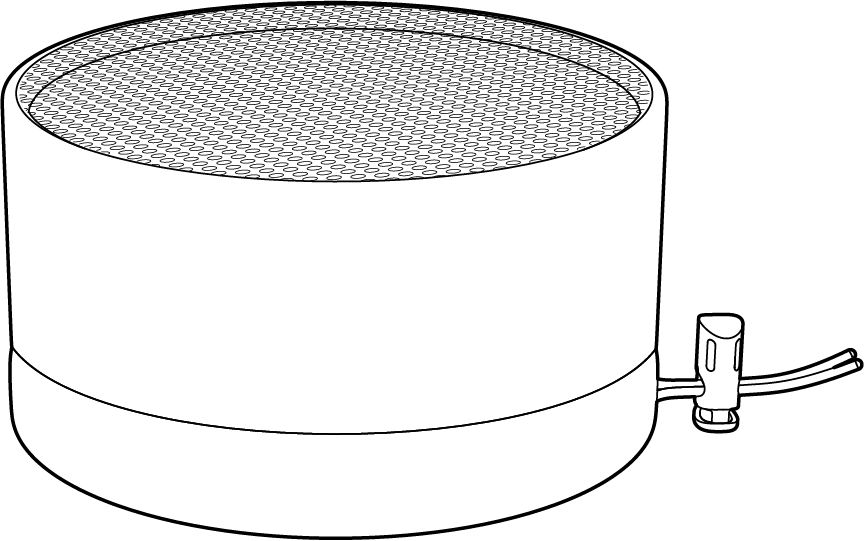

Vent Covers

Box H

01c955f4050af347974a40c450de54a5

Garden Twist Ties

Box H

d145edfd29d2498c8d851916611bf692

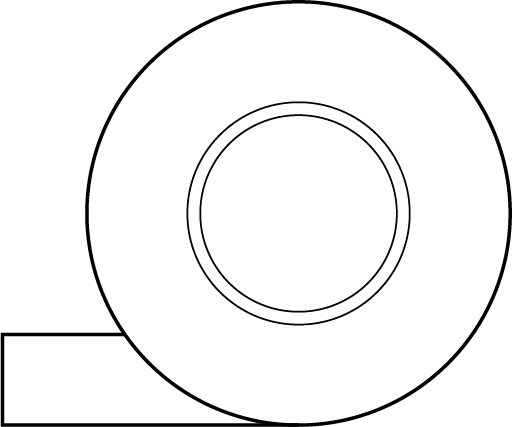

Aluminum Ducting Tape

Box H

b0b92652a6bba43fb7f8117fef00c801

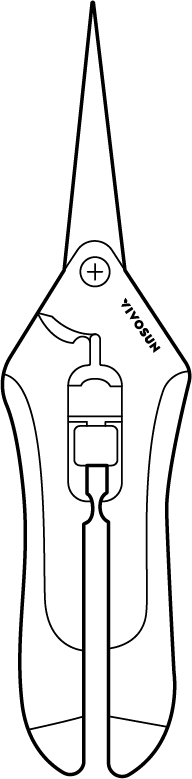

Pruning Shears

Box H

	VSK-GIYS224	VSK-GIYS276	VSK-GIYS336
BOX A	Grow Tent	24x24x48" x1 (60cmx60cmx120cm)	32x32x63" x1 (80cmx80cmx160cm)	36x36x72" x1 (90cmx90cmx180cm)
BOX B	Grow Light	Lumalight 100W x1	Lumalight 150W x1	Lumalight 200W x1
Rope Hangers	Rope Hanger x2
BOX C	Controller	GrowHub E42A+ x1
BOX D	Duct Fan	AeroZesh G4 4" (10.2cm) x1
BOX E	Carbon Filter	Carbon Filter 4" (10cm) x1
Prefilter	Prefilter 4"(10cm) x1
BOX F	Ducting	4" (10.2cm) Ducting 8ft (2.4m) x1
Clamps	4" (10.2cm) Metal Clamp x2
BOX G	Grow Bags	5gal (18.9L).Grow Bag x5
BOX H	Trellis Net	Trellis Net 24"x24" (60cmx60cm) x1	Trellis Net 36"x36" (90cmx90cm) x1
Vent Cover	Vent Covers-4" (10.2cm) x2
Twist Ties	Twist Tie-328ft (100m) x1
Shears	Pruning Shears x1
Ducting Tape	Aluminum Ducting Tape-5ft (1.55m) x1

VSK-GIYS224

VSK-GIYS276

VSK-GIYS336

BOX A

Grow Tent

24x24x48" x1 (60cmx60cmx120cm)

32x32x63" x1 (80cmx80cmx160cm)

36x36x72" x1 (90cmx90cmx180cm)

BOX B

Grow Light

Lumalight 100W x1

Lumalight 150W x1

Lumalight 200W x1

Rope Hangers

Rope Hanger x2

BOX C

Controller

GrowHub E42A+ x1

BOX D

Duct Fan

AeroZesh G4 4" (10.2cm) x1

BOX E

Carbon Filter

Carbon Filter 4" (10cm) x1

Prefilter

Prefilter 4"(10cm) x1

BOX F

Ducting

4" (10.2cm) Ducting 8ft (2.4m) x1

Clamps

4" (10.2cm) Metal Clamp x2

BOX G

Grow Bags

5gal (18.9L).Grow Bag x5

BOX H

Trellis Net

Trellis Net 24"x24" (60cmx60cm) x1

Trellis Net 36"x36" (90cmx90cm) x1

Vent Cover

Vent Covers-4" (10.2cm) x2

Twist Ties

Twist Tie-328ft (100m) x1

Shears

Pruning Shears x1

Ducting Tape

Aluminum Ducting Tape-5ft (1.55m) x1

	VSK-GIYP425	VSK-GIYP448
BOX A	Grow Tent	48x24x60" x1 (120cmx60cmx150cm x1)	48x48x80" x1 (120cmx120xcm200cm x1)
BOX B	Grow Light	Lumalight 200W x1	Lumalight 400W x1
Rope Hangers	Rope Hanger x2
BOX C	Controller	GrowHub E42A+ x1
BOX D	Duct Fan	AeroZesh G4 4" (10.2cm) x1	AeroZesh G6 6" (15.2cm) x1
BOX E	Carbon Filter	Carbon Filter 4" (10cm) x1	Carbon Filter 6" (15cm) x1
Prefilter	Prefilter 4" (10cm) x1	Prefilter 6" (15cm) x1
BOX F	Ducting	4" (10.2cm) Ducting 8ft (2.4m) x1	6" (15.2cm) Ducting 8ft (2.4m) x1
Clamps	4" (10.2cm) Metal Clamp x2	6" (15.2cm) Metal Clamp x2
BOX G	Grow Bags	5gal (18.9L), Grow Bag x5
BOX H	Trellis Net	Trellis Net 48"x24" (120cm x 60cm) x1	Trellis Net 48"x48" (120cm x 120cm) x1
Vent Cover	Vent Covers-4" (10.2cm) x2	Vent Covers-6" (15.2cm) x2
Twist Ties	Twist Tie - 328 ft (100 m) x1
Shears	Pruning Shears x1
Ducting Tape	Aluminum Ducting Tape-5ft (1.55m) x1

VSK-GIYP425

VSK-GIYP448

BOX A

Grow Tent

48x24x60" x1

(120cmx60cmx150cm x1)

48x48x80" x1

(120cmx120xcm200cm x1)

BOX B

Grow Light

Lumalight 200W x1

Lumalight 400W x1

Rope Hangers

Rope Hanger x2

BOX C

Controller

GrowHub E42A+ x1

BOX D

Duct Fan

AeroZesh G4 4" (10.2cm) x1

AeroZesh G6 6" (15.2cm) x1

BOX E

Carbon Filter

Carbon Filter 4" (10cm) x1

Carbon Filter 6" (15cm) x1

Prefilter

Prefilter 4" (10cm) x1

Prefilter 6" (15cm) x1

BOX F

Ducting

4" (10.2cm) Ducting 8ft (2.4m) x1

6" (15.2cm) Ducting 8ft (2.4m) x1

Clamps

4" (10.2cm) Metal Clamp x2

6" (15.2cm) Metal Clamp x2

BOX G

Grow Bags

5gal (18.9L), Grow Bag x5

BOX H

Trellis Net

Trellis Net 48"x24" (120cm x 60cm) x1

Trellis Net 48"x48" (120cm x 120cm) x1

Vent Cover

Vent Covers-4" (10.2cm) x2

Vent Covers-6" (15.2cm) x2

Twist Ties

Twist Tie - 328 ft (100 m) x1

Shears

Pruning Shears x1

Ducting Tape

Aluminum Ducting Tape-5ft (1.55m) x1

QUICK SETUP GUIDE

step 1

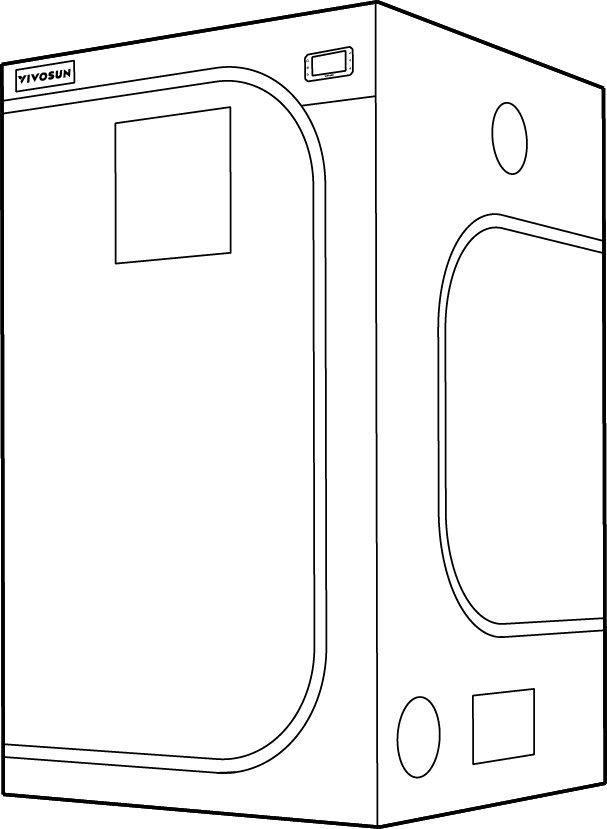

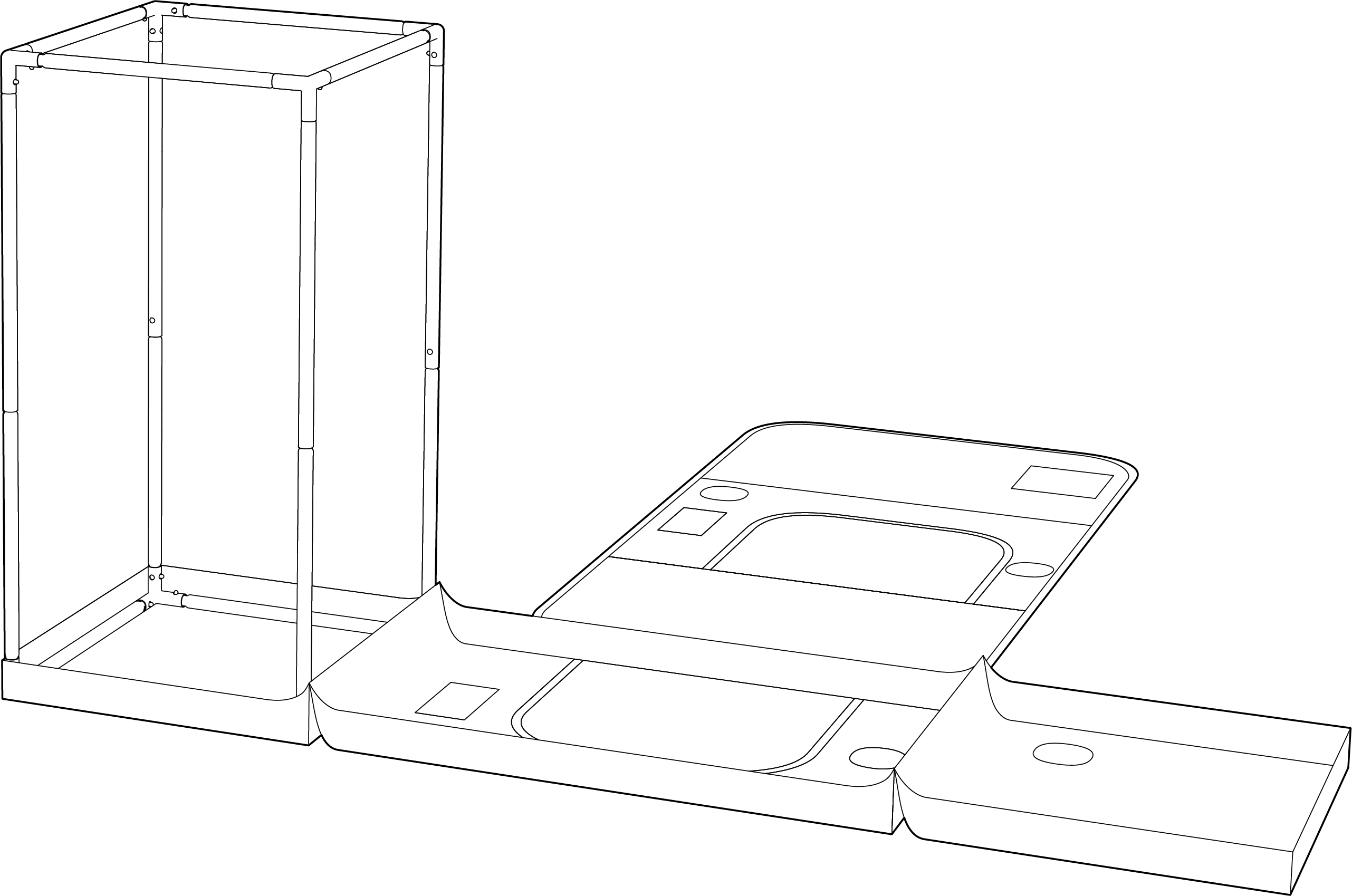

Setup your Grow Tent ( BOX A ) by following the instructions in the Grow Tent manual .

https://vivosun.com/support/guide/grow-tent-standard-series

STEP 2

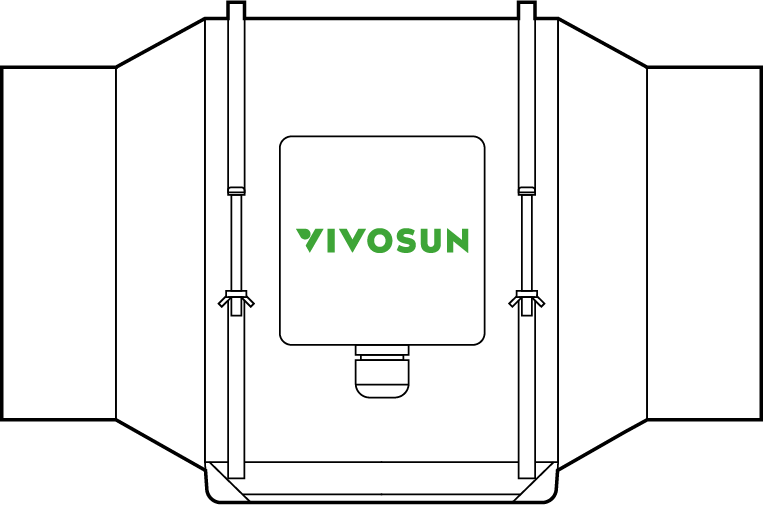

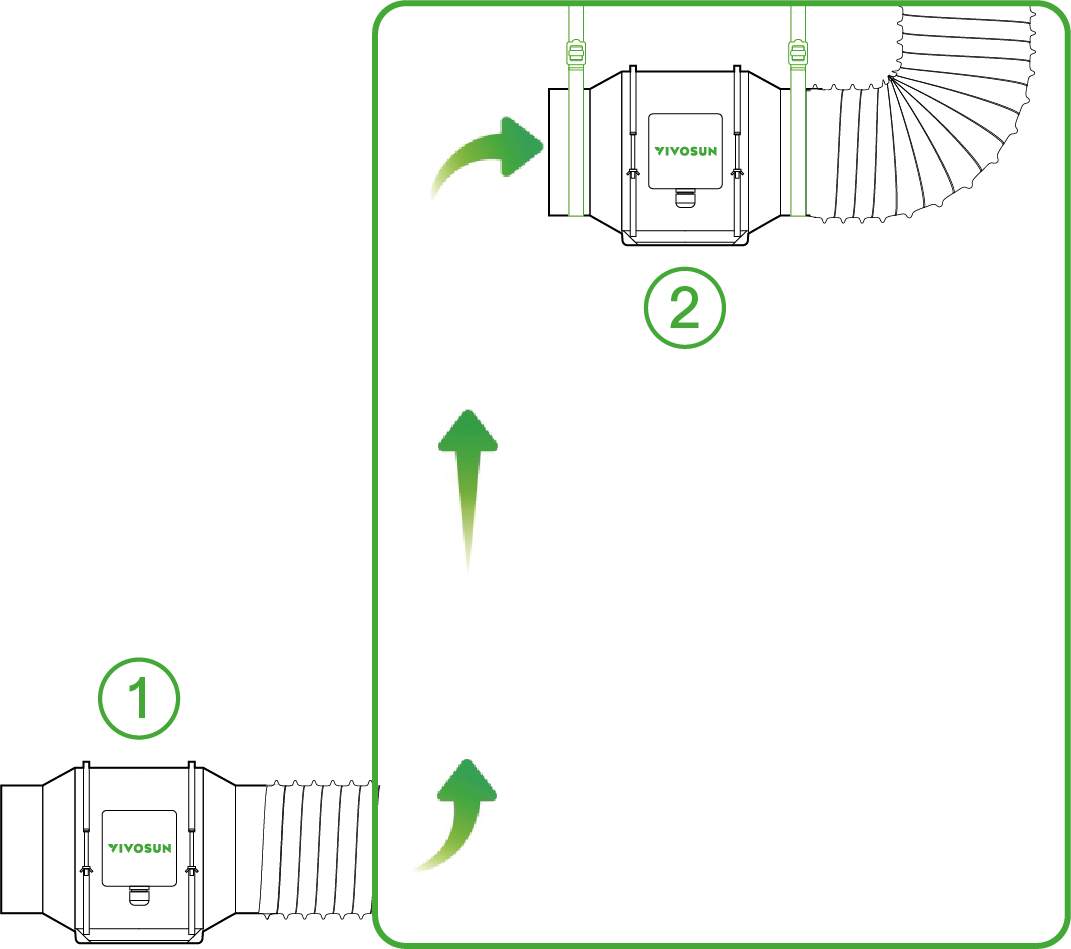

Install the AeroZesh Duct Fan (BOX D) at your preferred position. Hang the Duct Fan with Straps (BOX D) . For specific instructions, refer to the AeroZesh manual .

https://vivosun.com/support/guide/aerozesh-g

*1.Intake Fan
*2.Exhaust Fan

STEP 3

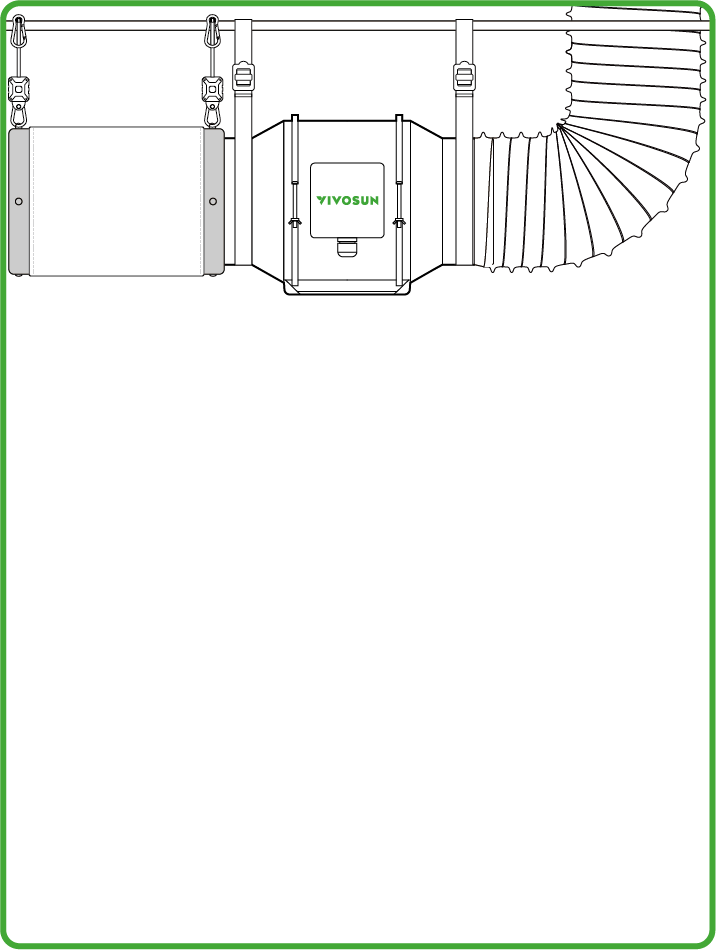

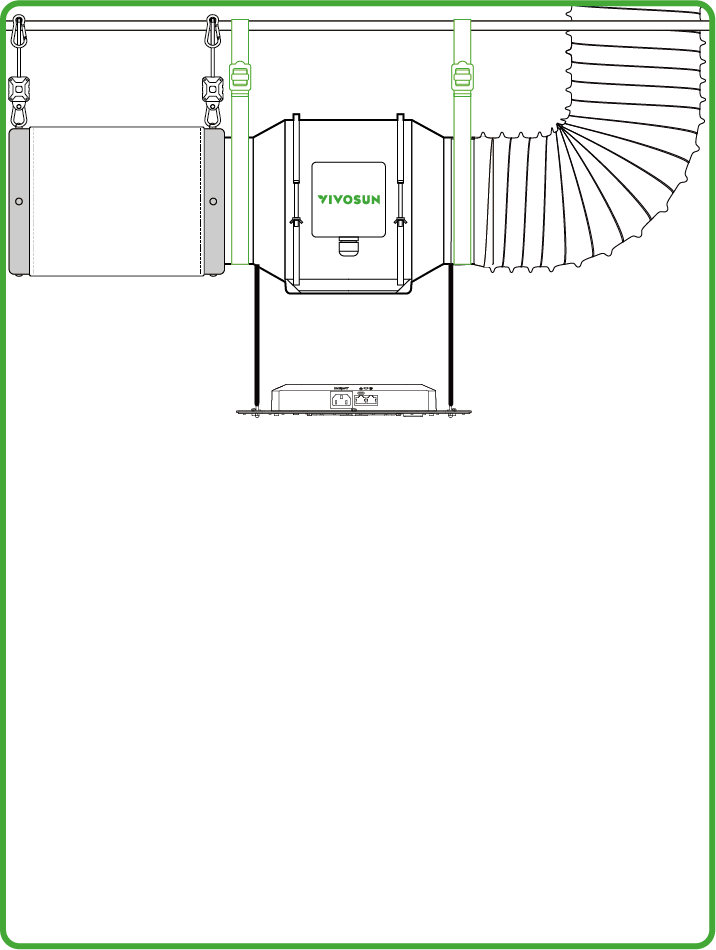

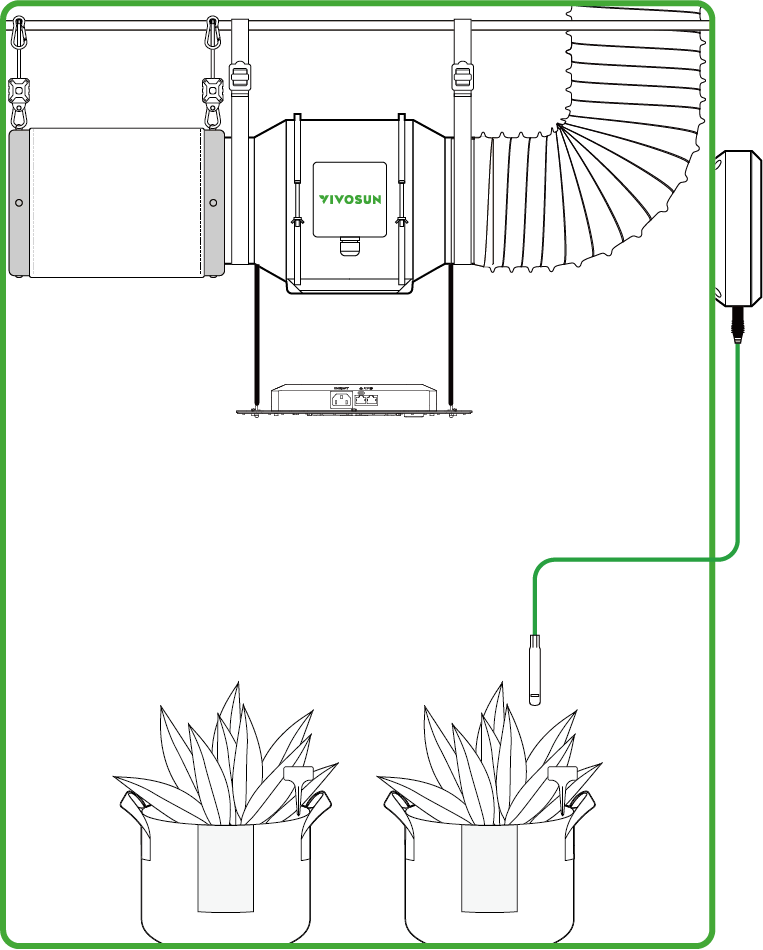

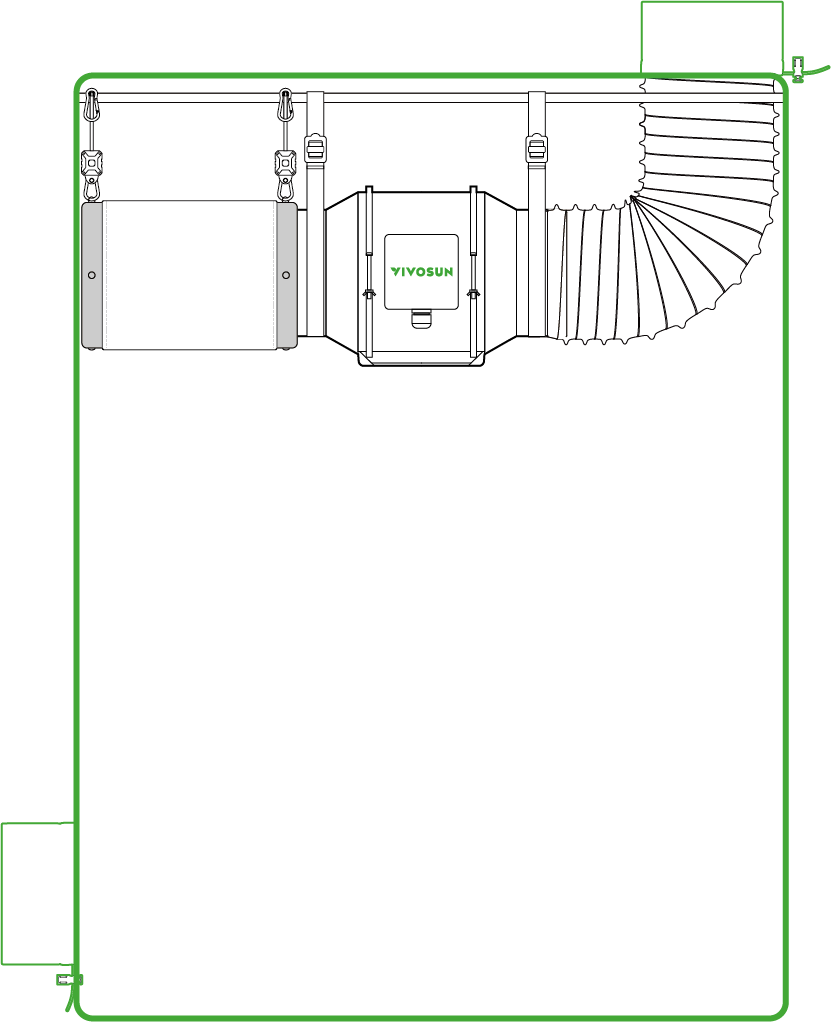

Cover the Prefilter on the Carbon Filter (BOX E) . Install the Carbon Filter and Ducting (BOX F) on the AeroZesh Duct Fan with Clamps and hang the with Straps (BOX E) .

STEP 4

For extra vent protection, put the Vent Cover (BOX H) into the inlet vent of the tent or outlet of the ducting if needed. (OPTIONAL) .

STEP 5

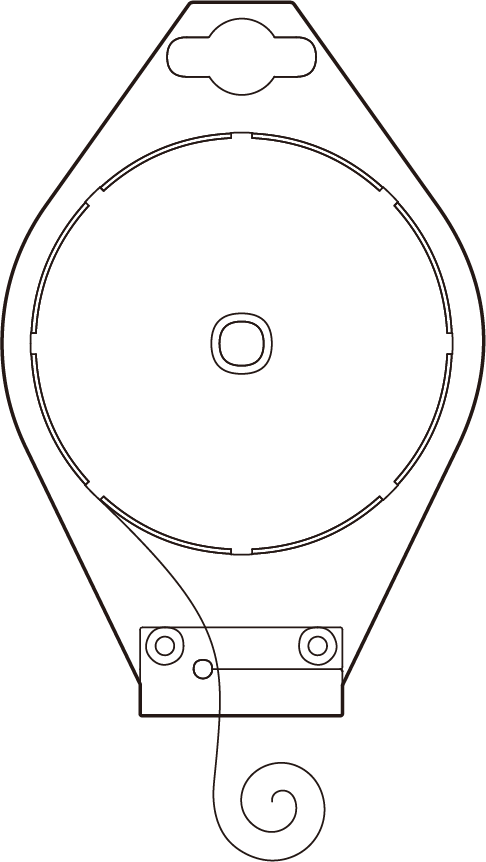

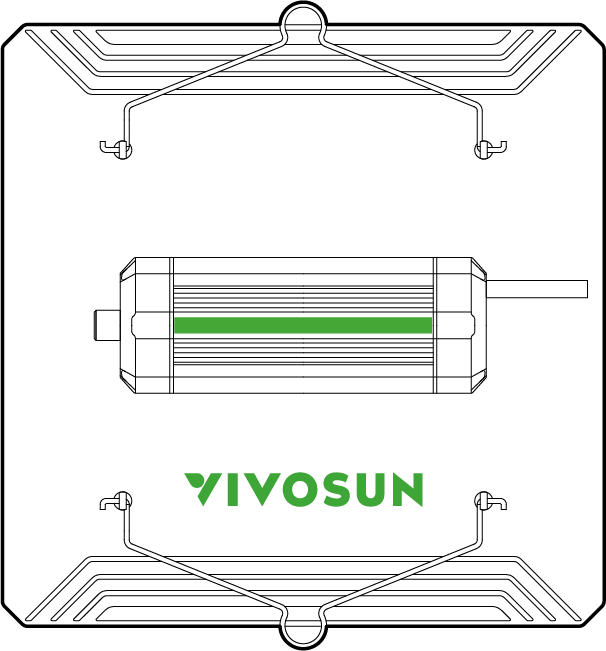

Install the Lumalight (BOX B) to a ceiling rod or other appropriate fixture using the Rope Hangers (BOX B) and adjust to an appropriate height. For instruction specifics , please refer to the Lumalight manual .

https://vivosun.com/vivosun-lumalight-led-grow-light-100w-p164284961561524491-v164284961561524490

STEP 6

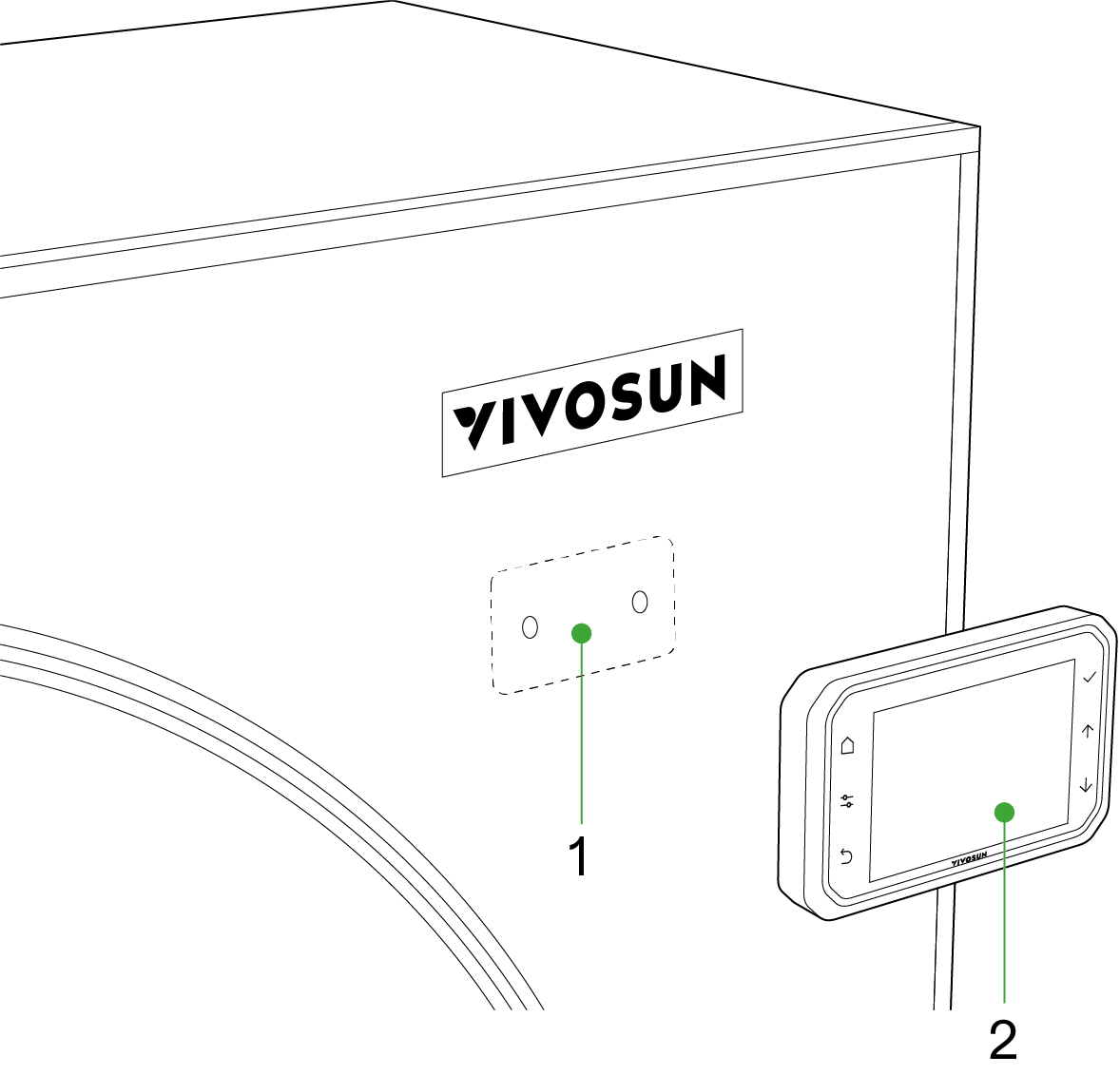

Mount the GrowHub Controller E42A+ (BOX C) on your tent or wall using the iron plate. For specific instructions, please refer to the GrowHub manual .

https://vivosun.com/support/guide/growhub-e42ap

*1.Iron Plate
*2.GrowHub Controller E42A+ (with Magnet)

STEP 7

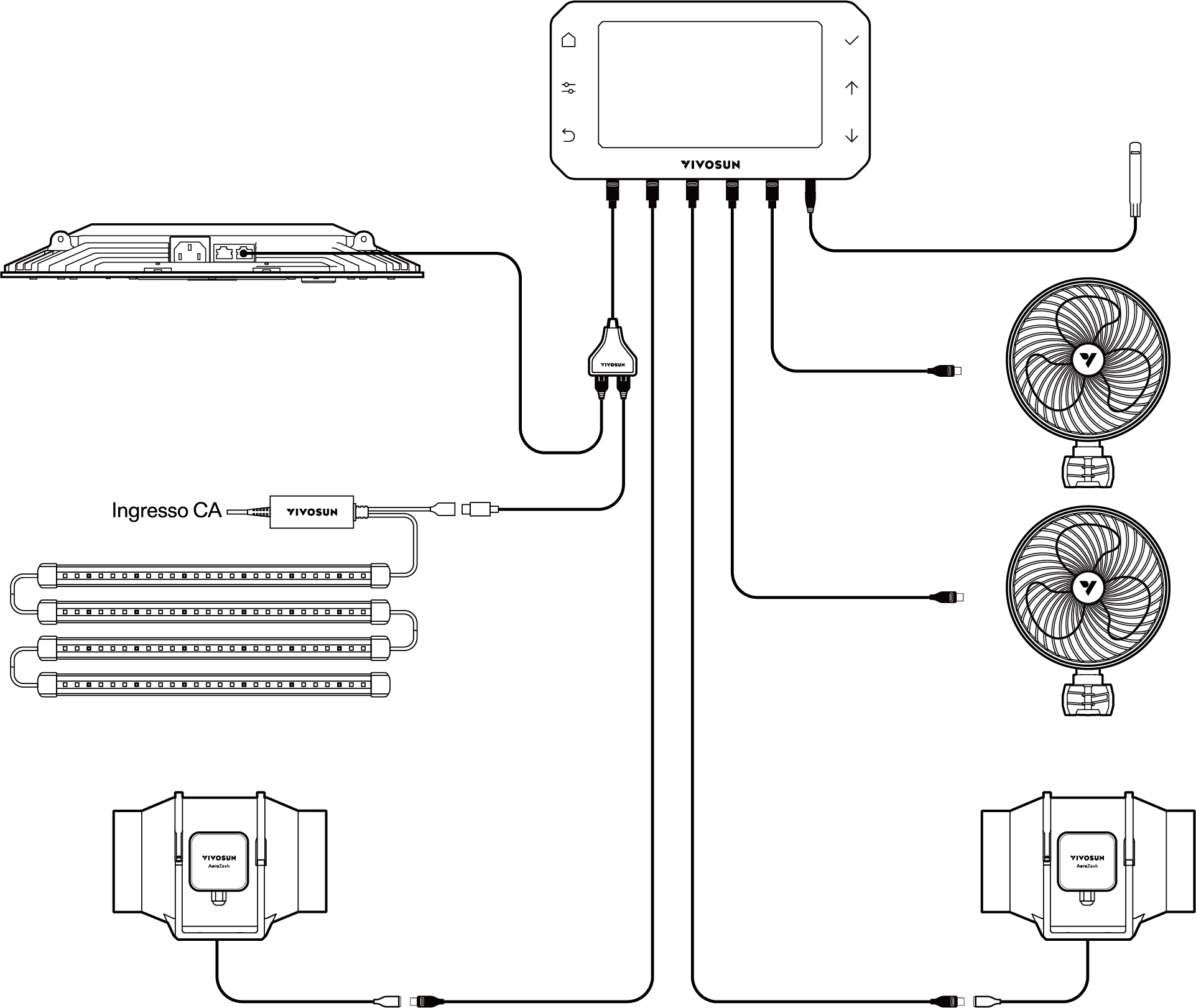

Connect the Lumalight to the GrowHub with a RJ11 Cable (BOX B) plugged into the RJ11&RJ45 converter. Connect the AeroZesh with a Type-C cable (BOX C) to one of the Type-C ports. Plug the Temp./Humidity Sensor (BOX C) into the AUX port. For installation specifics, please refer to the GrowHub manual.

https://vivosun.com/support/guide/growhub-e42ap

STEP 8

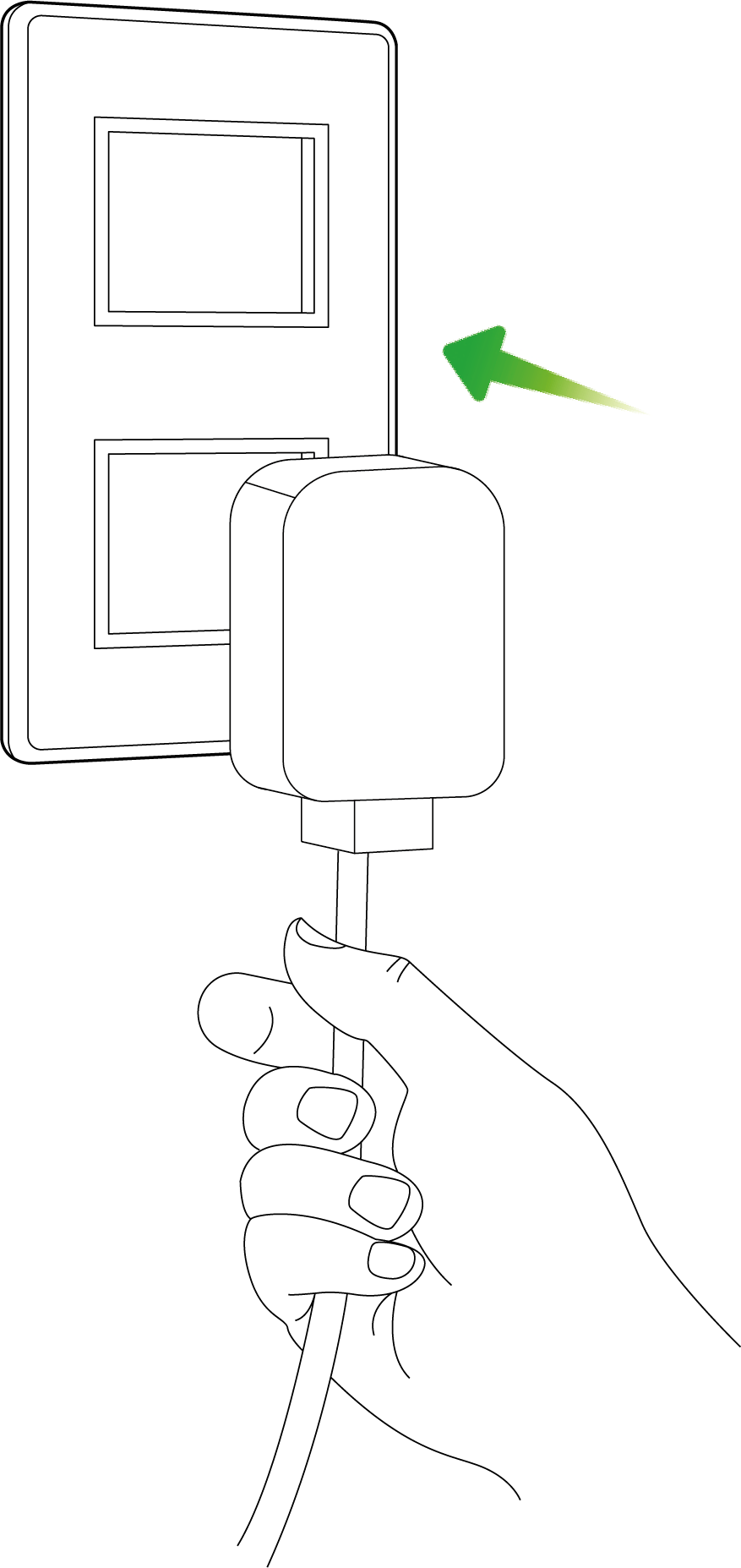

Plug the Lumalight and AeroZesh into nearby AC outlets using the power cords in BOX B and D .

STEP 9

CONNECTING TO THE VIVOSUN APP

1 . Download the Vivosun App

Search ''VIVOSUN'' in the Apple App Store or in the Google Play Store to download the Vivosun app.

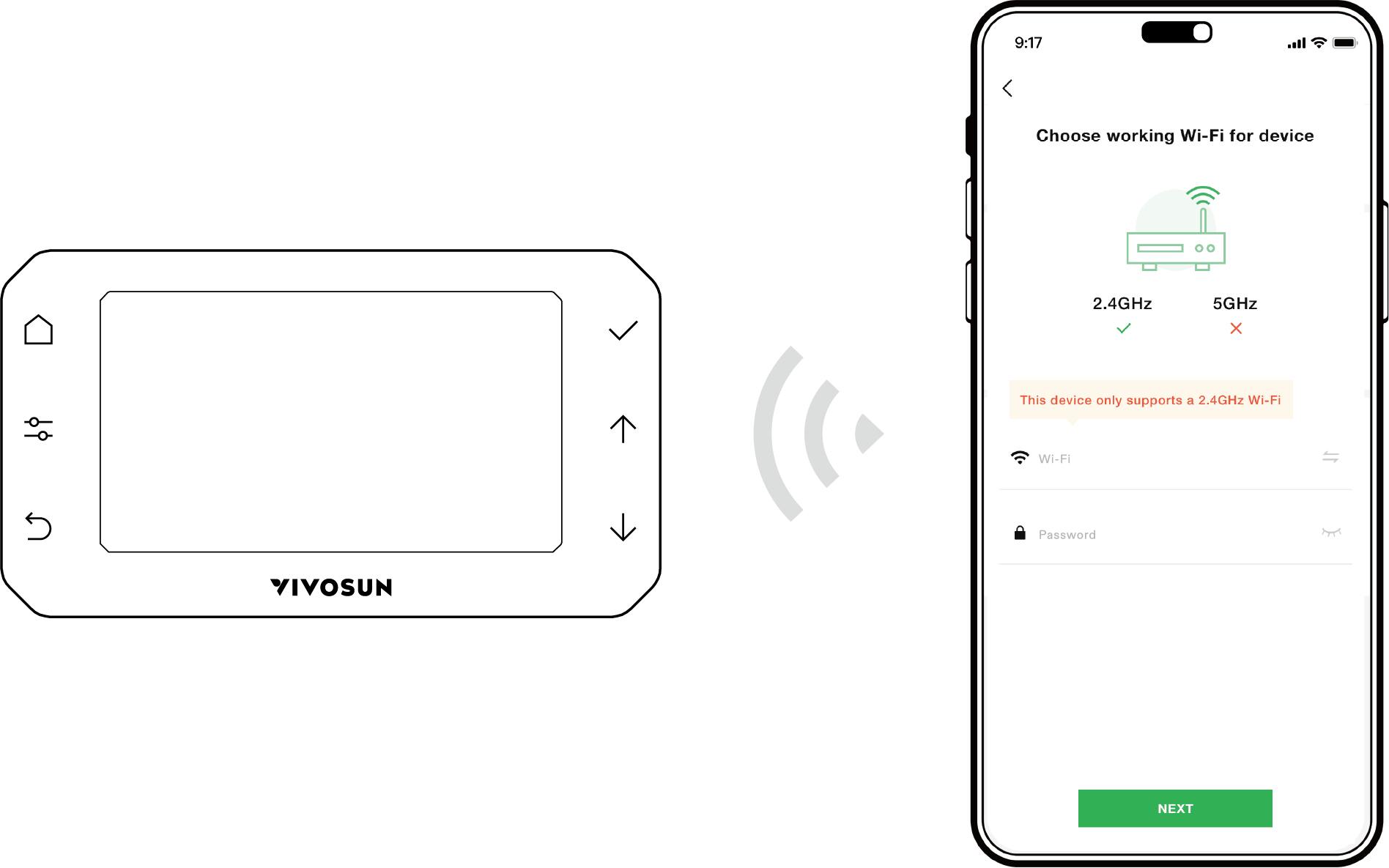

2 . Add your GrowHub Controller E42A+

Tap " + " or 9aad7b0c71aab6ded02bde95ff545c2b to add your GrowHub Controller E42A+. When connecting to the Vivosun app, b8cb64e95b3281687e05a58b463a2031 will flash on the screen.

For more specific instructions on how to opetrate E42A+, please refer to the GrowHub manual.

Note:

Make sure you have a 2.4 GHz Wi-Fi connection, and that Bluetooth is enabled on your phone

STEP 10

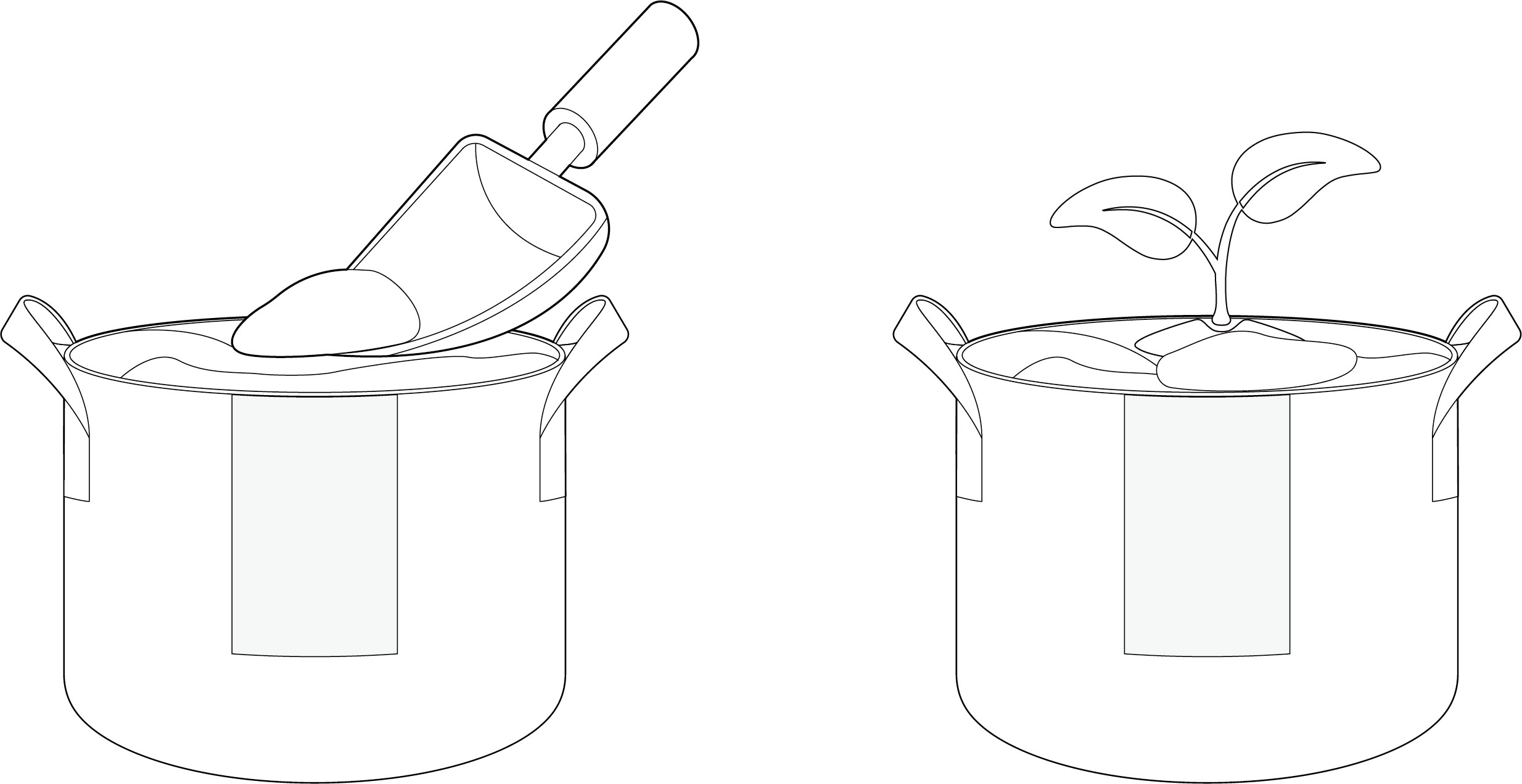

Fill the Grow Bags (BOX G) with growing medium and place the plants seeds or seedlings .

STEP 11

Place the Temperature/Humidity Sensor (BOX C) in an appropriate position in the Grow Tent to monitor the environmental conditions.

STEP 12

Log into your account and start a new ”garden” by connecting your GrowHub controller through Wi-Fi.

For specifics on how to do so, please refer to the GrowHub manual.

STEP 13

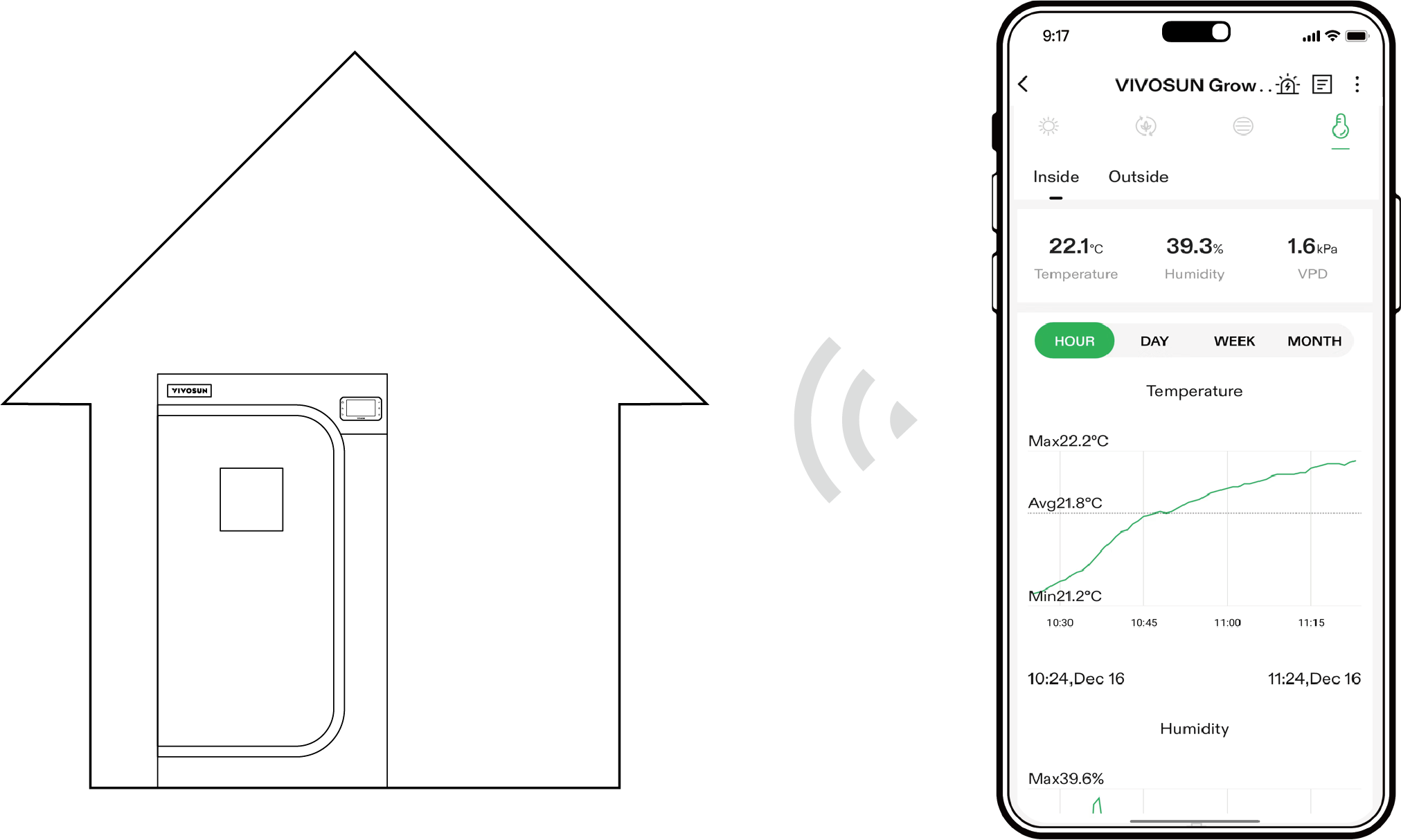

After connecting your GrowHub, you can set up a grow recipe, remotely control your devices, revisit archived logs, set alarms, record and share your experience.
