GrowCam C4 Manual

Product Contents

Image Name Quantity

40ed0da8540f34c660d874fdf7f7ce49

Camera

1 pc

4e6abfd145cc03c0ac662c7ac7378493

Power Cable

1 pc

1dc874c84a200e495823fc2c65c5480e

Power Adapter

1 pc

d4ed4964da00a4181b9a79cba79d7c36

Screw Kit

1 pc

11df960de46401e2dc442bbf9e582951

Position Sticker

1 pc

20115a4ed96de6b6f7bd513fb78b9b37

Camera Mount

1 pc

e1eb6c318b0a1427b81e74fb01c1392f

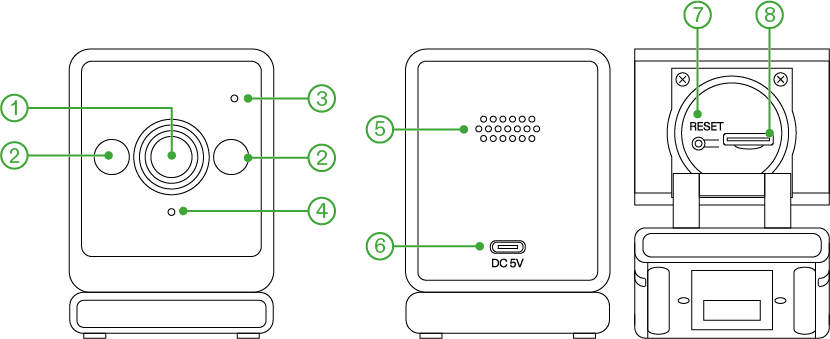

Number Description Number Description

Lens

IR LED

Mic

LED Indicator

Speaker

Power Supply Port

Reset Button

MicroSD Card Slot

Specifications

Model

VSC-GCC4

Dimensions

1.8"x2"x3" (4.57× 5.08× 7.62 cm)

Input

DC 5 V 1 A

Resolution

2564×1440

Lens

FOV 117°

IR

2 × 920 nm IR LEDs

Wi-Fi

2.4 GHz Wi-Fi

SD Card

Up to 512 GB

Water Resistance

IP54

Wi-Fi operation frequency

2412MHz~2484MHz

Wi-Fi maximum output

14dBm

Setup

NOTICE

Ensure both your phone and the device are connected to the same Wi-Fi network.

For local storage, ensure you insert the microSD card before powering on the device to avoid potential damage.

If the device doesn’t enter pairing mode, press and hold the reset button until you hear, "Restoring factory settings, please do not power off." The camera will automatically enter pairing mode once the reset is complete.

Step 1

Download the Vivosun app. Search ‘Vivosun” in the App Store or in the Google Play Store to download the Vivosun app.

Step 2

Connect the camera to a power outlet and wait for 5 seconds. You will hear the message, "Waiting to connect, please configure the network according to the instructions." and the status light will flash blue rapidly. This indicates that the camera is in pairing mode and ready to connect.

Step 3

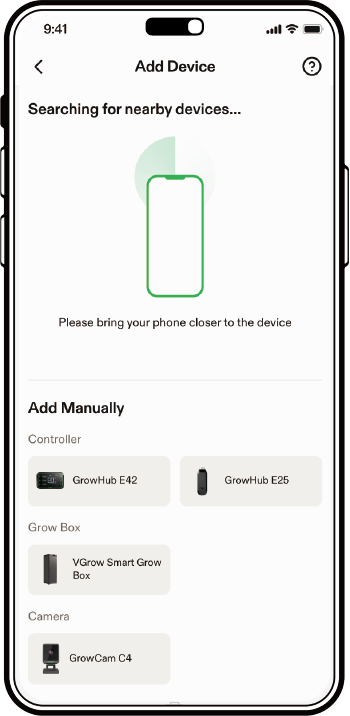

Tap "+" or 65a70d10a7b8e62a118539463648a6d3 to add a device and select "GrowCam C4". Follow the instructions in the Vivosun App to finish setting up the device.

1a3caecdb32cebddf7da392309bcbad7

LED Status Indicator

LED Indicator

Status

Rapid flashing blue light

The device is trying to connect.

Rapid flashing green light

The device is connected and working properly (without a microSD card).

Solid green light

The device is connected and working properly (with a microSD card).

Slow flashing green light

Time-lapse or recording is in progress.

Notice:

When the GrowCam C4 is disconnected from the network, the LED indicator will continuously flash blue until the connection is restored.

Installation

Notice: Please install away from grow lights to avoid overheating.

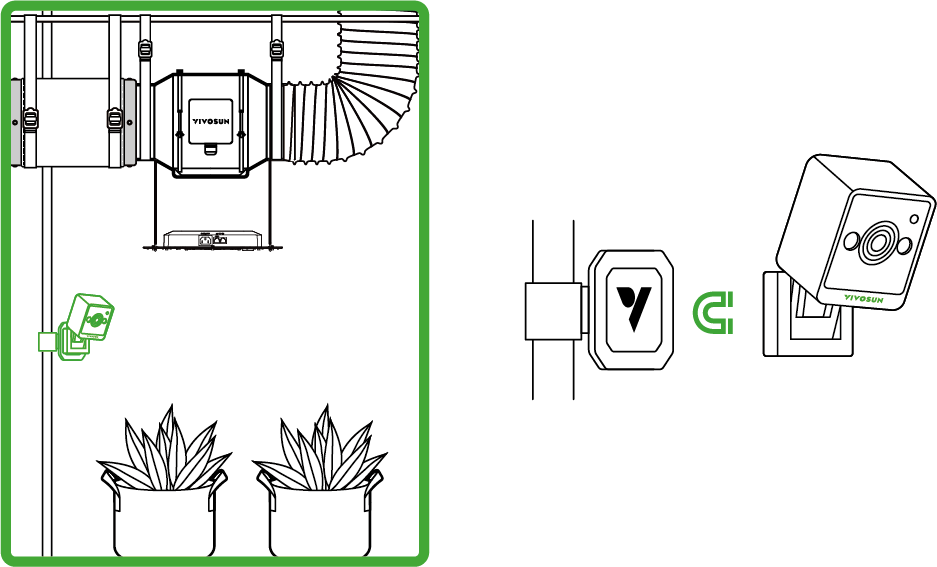

Grow Tent

e1b5bfaf488337bc2014c29770ffb7b4

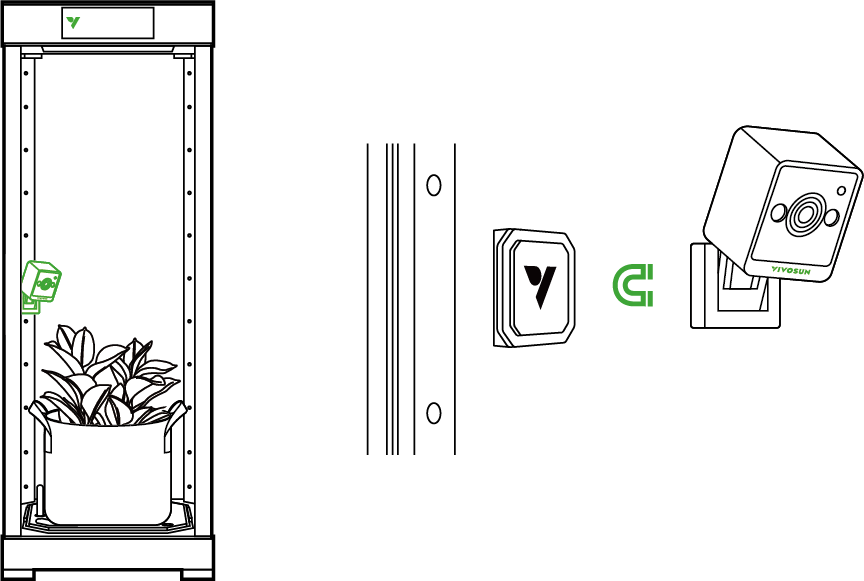

VGrow Smart Grow Box

75993665c4db556158dd10340fb19c17

Warranty

Vivosun provides a one-year warranty against defects on GrowCam C4 purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakages that may occur during normal use of our products.

Our warranty covers the replacement or refund of purchases that exhibit material defects within one year of the original purchase date. In such events, customers may contact us to initiate the claim process. Proof of purchase is required to verify coverage eligibility.

This policy does not extend to products that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.

Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This one-year warranty reflects our confidence in the durability of our products under normal use.

Safety Information

  1. Carefully review all instructions before installing and using this product.

  2. Plug the product in correctly and keep it out of reach of children.

  3. This product is intended for dry, indoor use only. Avoid using it in hazardous environments such as flammable, explosive, chemical-laden, or wet areas.

  4. If your device or power cord is damaged, please contact us immediately. Do not disassemble or modify the devices without Vivosun’s direction, it may cause damage to the device and will void the warranty.

FCC Warning

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.

  • Increase the separation between the equipment and receiver.

  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

  • Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISED RSS Warning

This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

ISED Radiation Exposure Statement

This equipment complies with ISED RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Any changes or modifications not expressly approved by the party res responsible for compliance could void the user’s authority to operate the equipment.
