LumaRay Side Lights Manual

MODEL NAME

VSL-LRSF50-4
VSL-LRSF50-8

Product Contents

VSL-LRSF50-4

Image	Name	Box Number

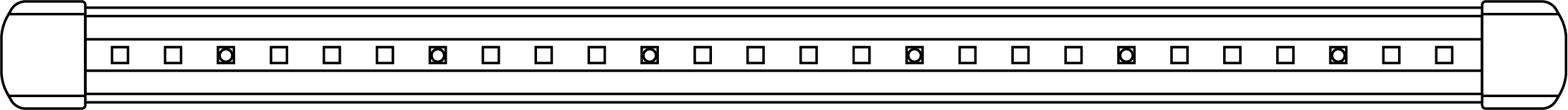

	LED Light Bars	4 pcs
	Power Adapter	1 pc

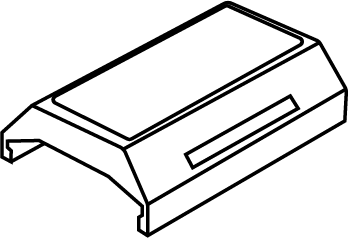

	Magnetic Clamp	4 pcs
	Metal Plate	4 pcs

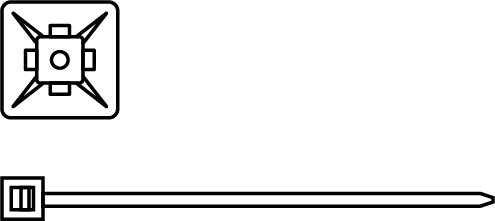

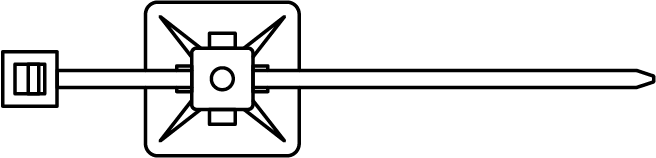

	Wire Mount	7 pcs
	Pole Clamp	4 pcs

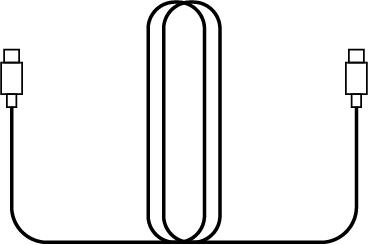

	Connecting Cable	1 pc


Name

Box Number

4440f5c129523a9541762528fb3749a3

LED Light Bars

4 pcs

ec121b1d85887796ee05097f20c27380

Power Adapter

1 pc

44dcb8d4bf9e7b6b4abc5260a466d53b

Magnetic Clamp

4 pcs

63c71a56b6e53bd326e7b8ccf706f73d

Metal Plate

4 pcs

6caf11eb1412eca9216c9dd225fb9b5e

Wire Mount

7 pcs

1dfe5409d5b908b080330e0190923bb8

Pole Clamp

4 pcs

db9bc65fafb3934d6b215f1c1388217e

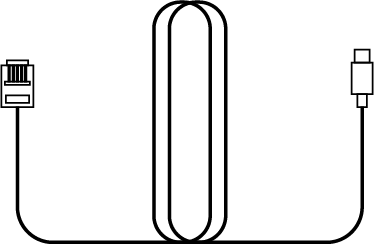

Connecting Cable

1 pc

VSL-LRSF50-8

Image	Name	Box Number
	LED Light Bars	8 pcs
	Power Adapter	2 pcs
	Magnetic Clamp	8 pcs
	Metal Plate	8 pcs
	Wire Mount	14 pcs
	Pole Clamp	8 pcs
	Connecting Cable	2 pcs
	Connecting Cable 2	1 pc

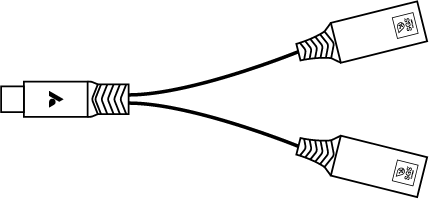

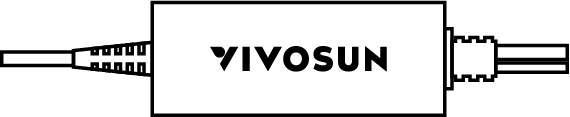

	USB-C Splitter	1 pc


Name

Box Number

4440f5c129523a9541762528fb3749a3

LED Light Bars

8 pcs

ec121b1d85887796ee05097f20c27380

Power Adapter

2 pcs

44dcb8d4bf9e7b6b4abc5260a466d53b

Magnetic Clamp

8 pcs

63c71a56b6e53bd326e7b8ccf706f73d

Metal Plate

8 pcs

6caf11eb1412eca9216c9dd225fb9b5e

Wire Mount

14 pcs

1dfe5409d5b908b080330e0190923bb8

Pole Clamp

8 pcs

db9bc65fafb3934d6b215f1c1388217e

Connecting Cable

2 pcs

b50ea8df127ce2f42806a696452311be

Connecting Cable 2

1 pc

65f58e161d7215c79211b00f598f6dec

USB-C Splitter

1 pc

Key Features

1 . High-Efficiency Diodes

Full spectrum with high ratio of 600-700nm red to 60%, use high-efficiency red diodes enhance photosysthesis.
Highly efficient design: The surface of the lamp board features 99% reflective film

2 . Optical Lens Protective Cover

Optical lens cover featuring a prism design for high light transmittance.
Protects the LED chips and is easy to clean.
User-friendly design, glare-free.
120° light coverage angle.

3 . Dimming LED

0%-100%/OFF (via GrowHub and VIVOSUN app)

4 . Easy and flexible installation

Can be easily attached both inside the tent and tent’s support pole.

5 . Gallium Nitride Power Supply

Compact in size and high in efficiency; achieving a higher light conversion rate at the same power
Low heat output, high durability

Specifications

SKU

VSL-LRSF50-4 VSL-LRSF50-8

Spectrum

Full spectrum + 660nm deep red，Red ratio: 60%

Input Voltage

120-240V

Frequency

50-60Hz

Input

50W

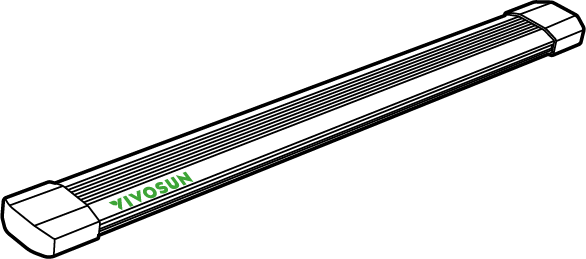

Light Bar Length

16inch / 40CM

Dimming by APP

25%~100%/OFF

Dimming by E42A+/E42A

25%/50%/75%/100%/OFF

Warranty

3 years

Installation

Mounting on Tent Support Poles

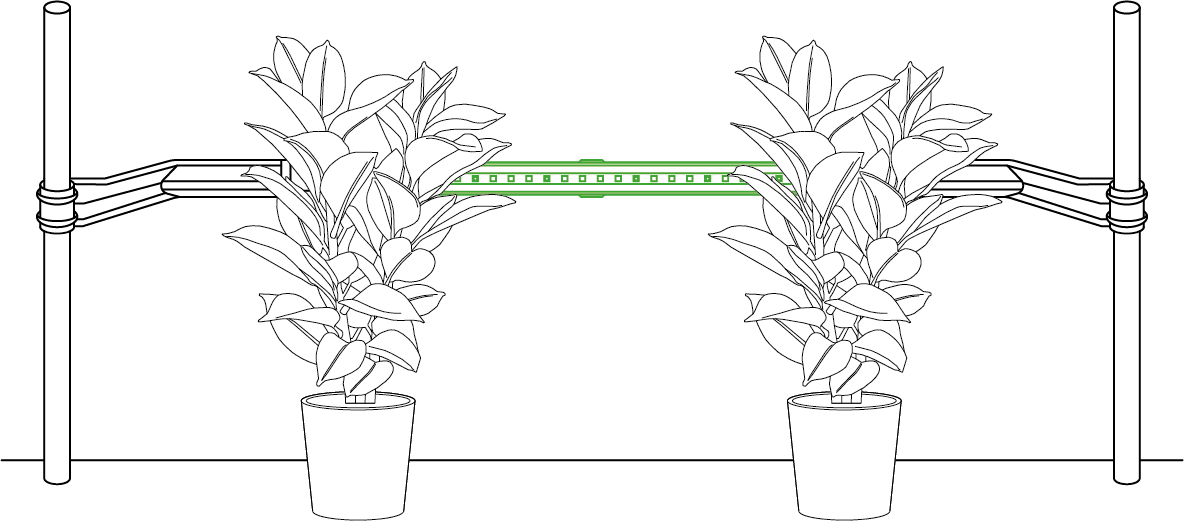

Step 1:

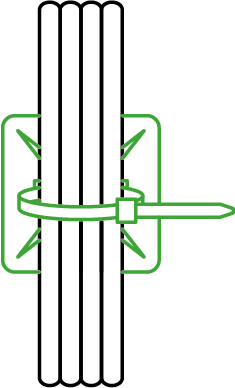

Attach the Pole Clamp onto the tent’s support pole.

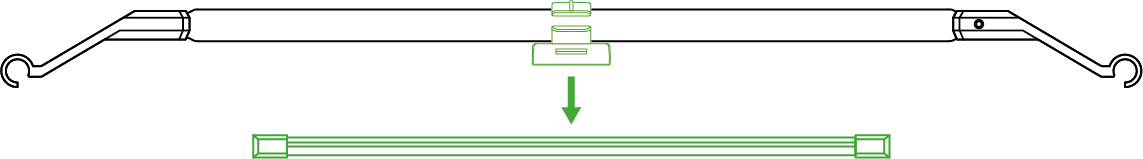

Step 2:

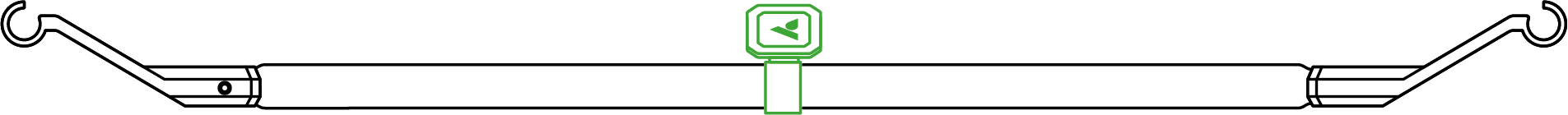

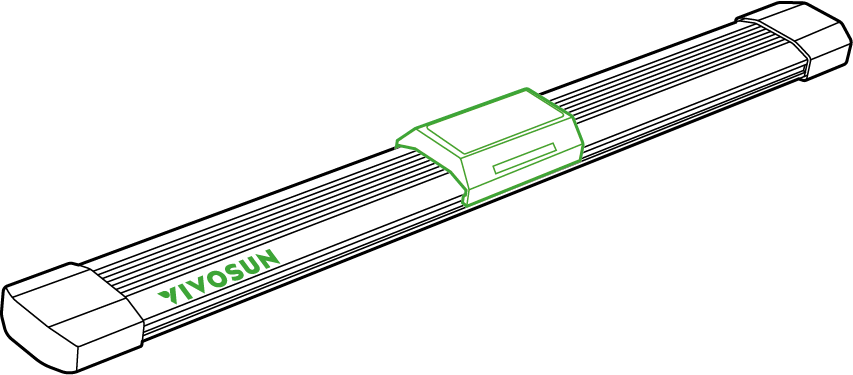

Take out the LumaRay side lighting bar and attach the magnetic clamp to the center of the light bar. Use the magnetic clamp to secure it to the Pole Clamp, completing the installation.

Step 3:

Adjust the tent support poles to the appropriate height. Align the light output with the upper-middle part of the plant.

Step 4:

Repeat the steps to install the other three light bars.

Magnet on the tent

Step 1:

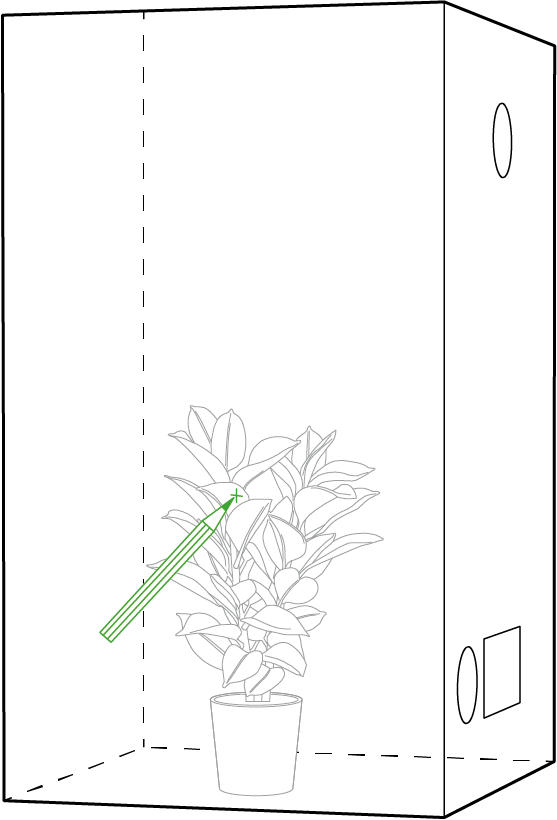

Select the light bar installation position based on plant height and mark it on the tent’s outer side.

Step 2:

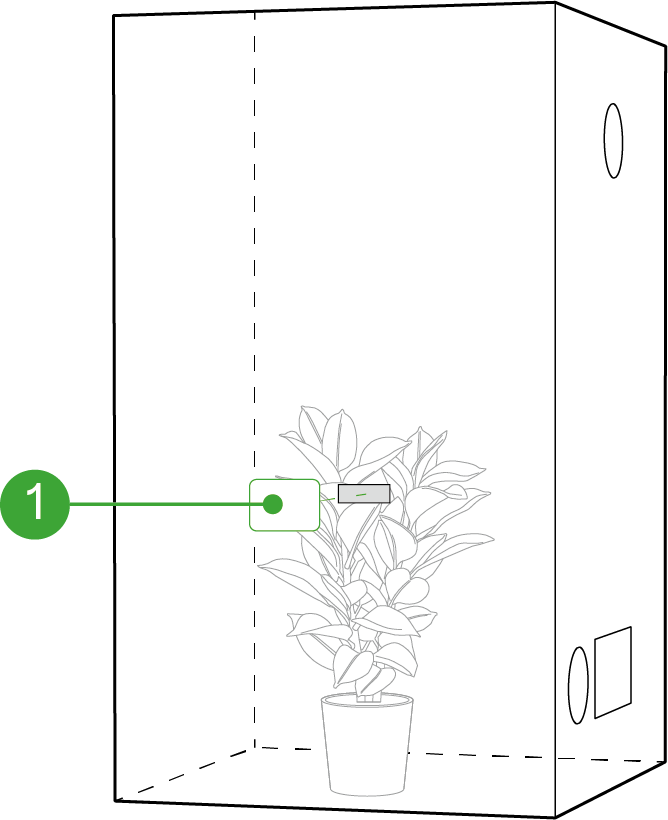

Attach the adhesive metal plate to the marked spot on the tent’s outer side.

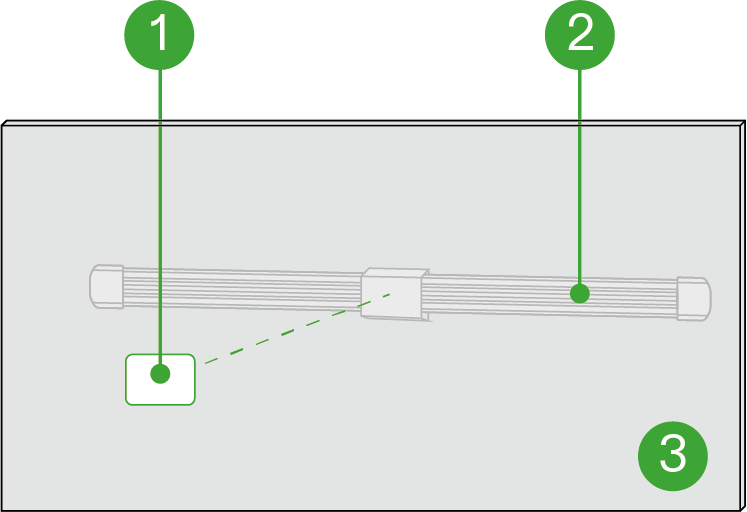

*1. Metal Plate

Step 3:

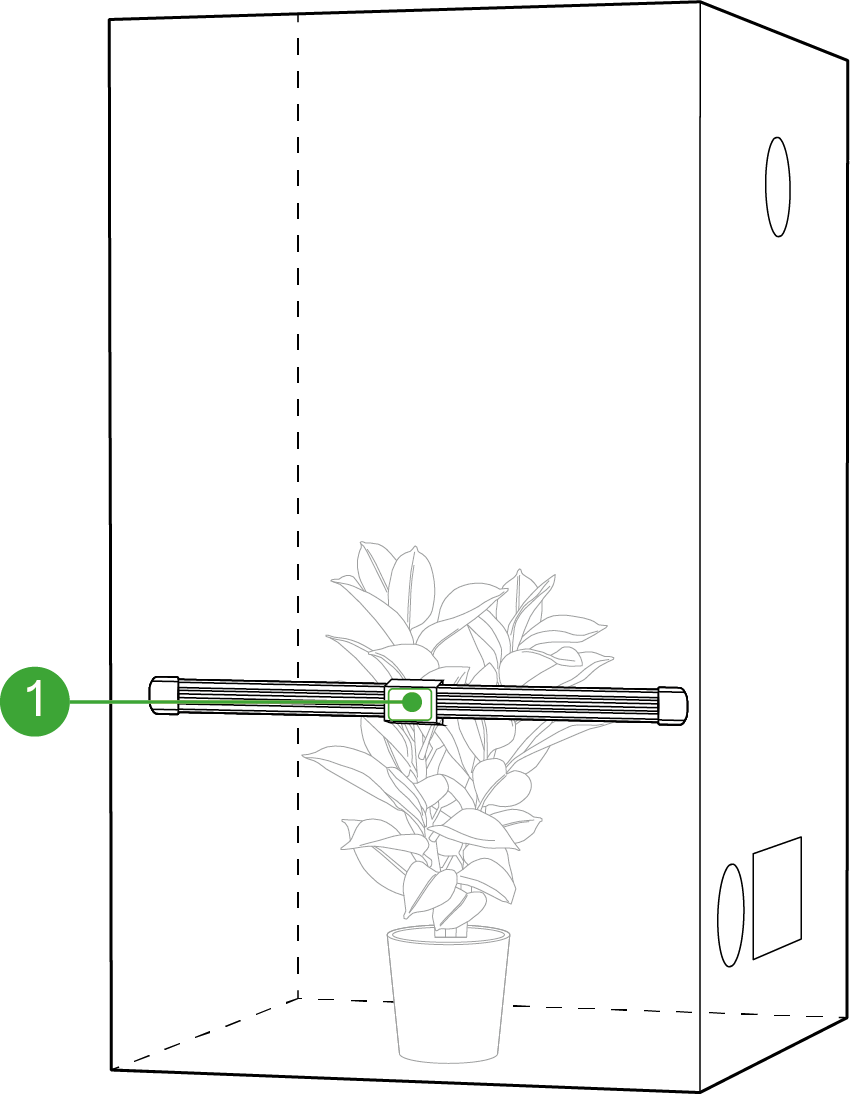

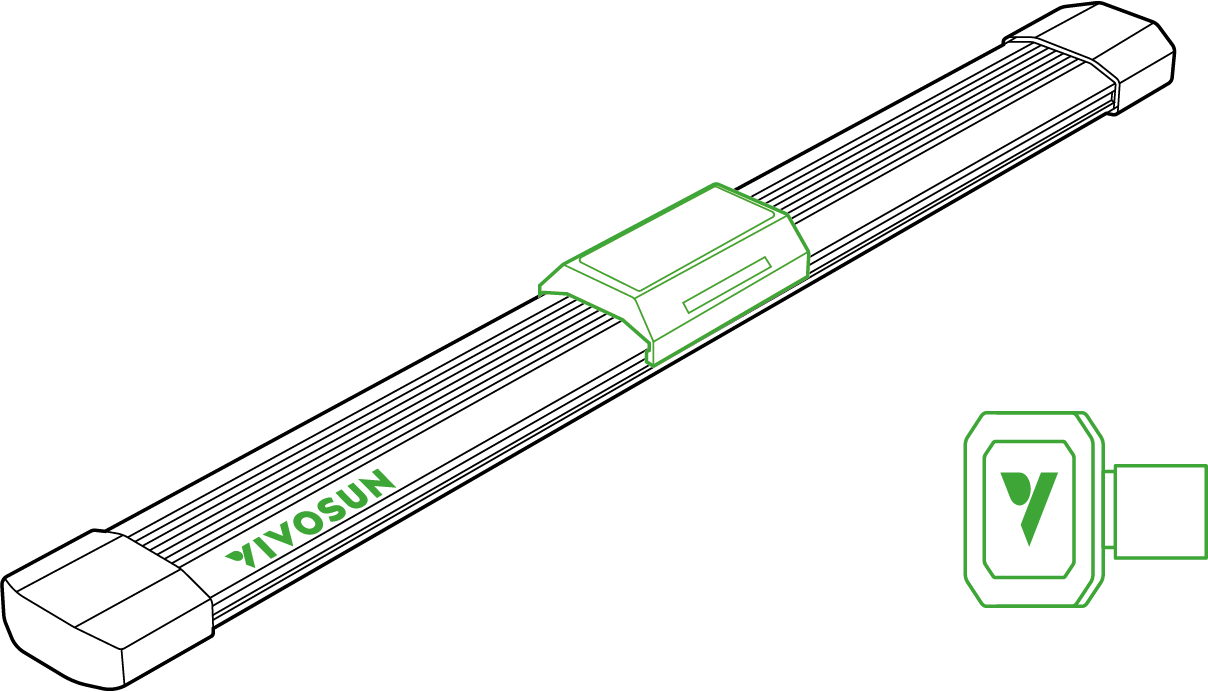

Attach the magnetic clamp to the light bar, then from inside the tent, align it through the tent fabric with the metal plate to secure the installation.

b5445a1fd58848f338a897291077ef45

659e61dedd7b1c1cb2b0df04ca5ba94d

6f6d88aa77cd3a22fe50c179251f81eb

*1. Metal Plate
*2.LumaRay
*3.Tent

Step 4:

Repeat the steps to install the other three light bars.

Wired Connection Method

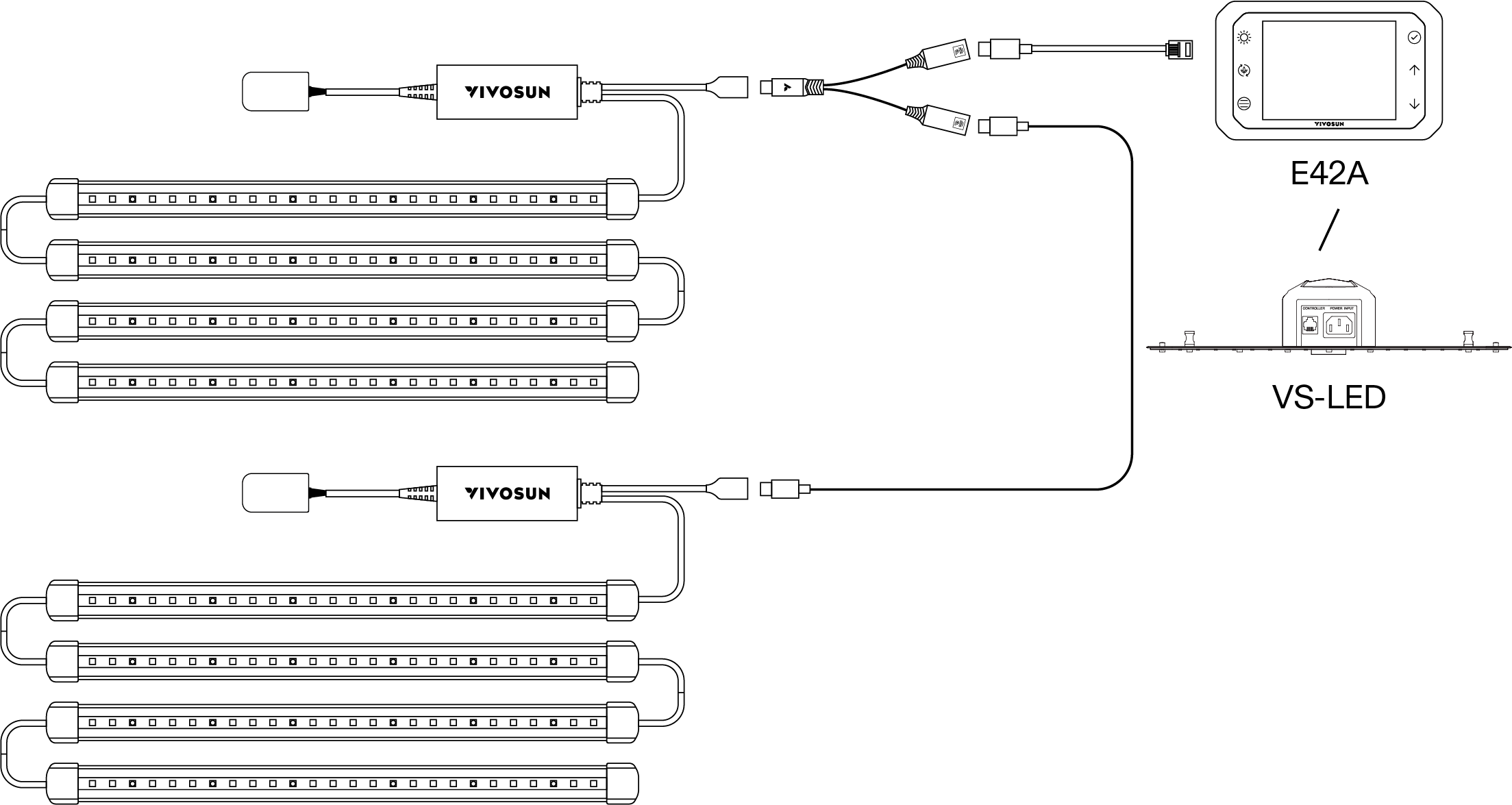

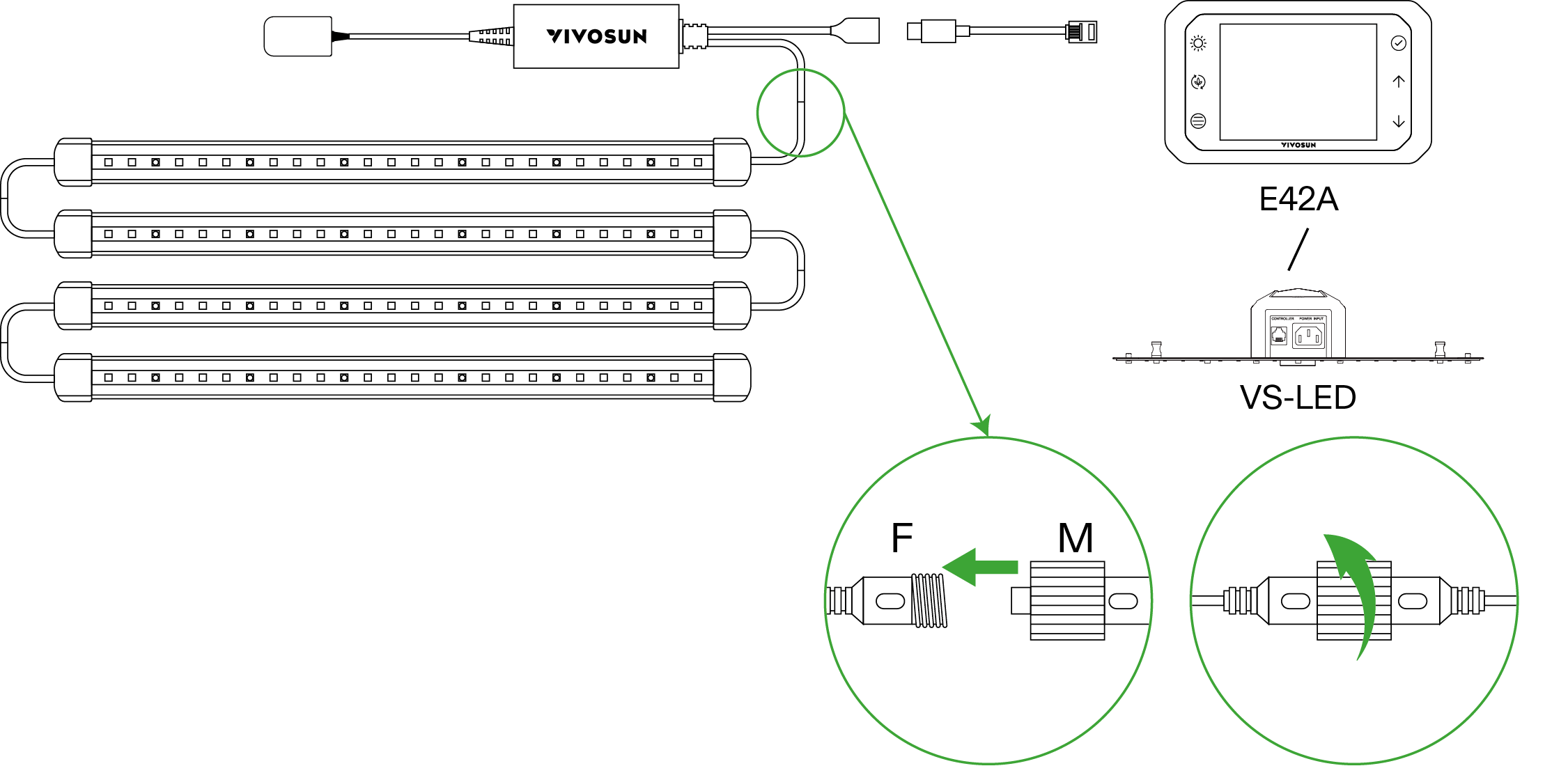

The LumaRay side lighting can connect to E42A and VS-LED by connecting cable.

Wireless Connection Method

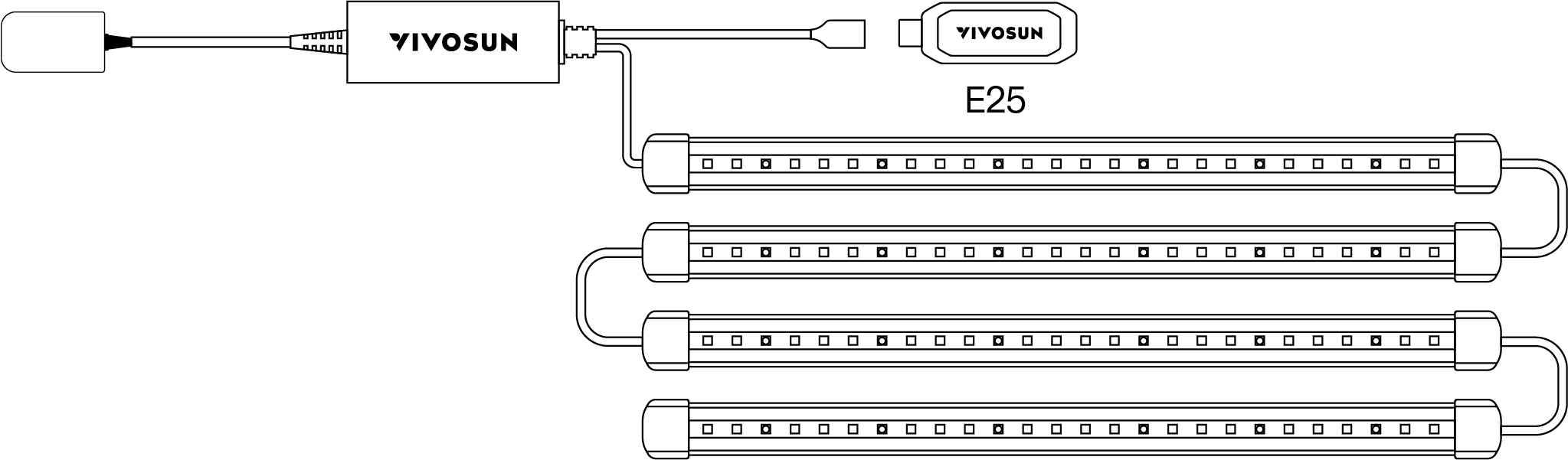

Connect the E25 controller to the USB-C port on the power adapter.

Use the VIVOSUN app to connect the E25 controller to the network and complete the setup.

E25 not included in the package, sold separately.

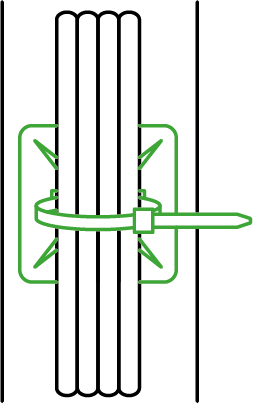

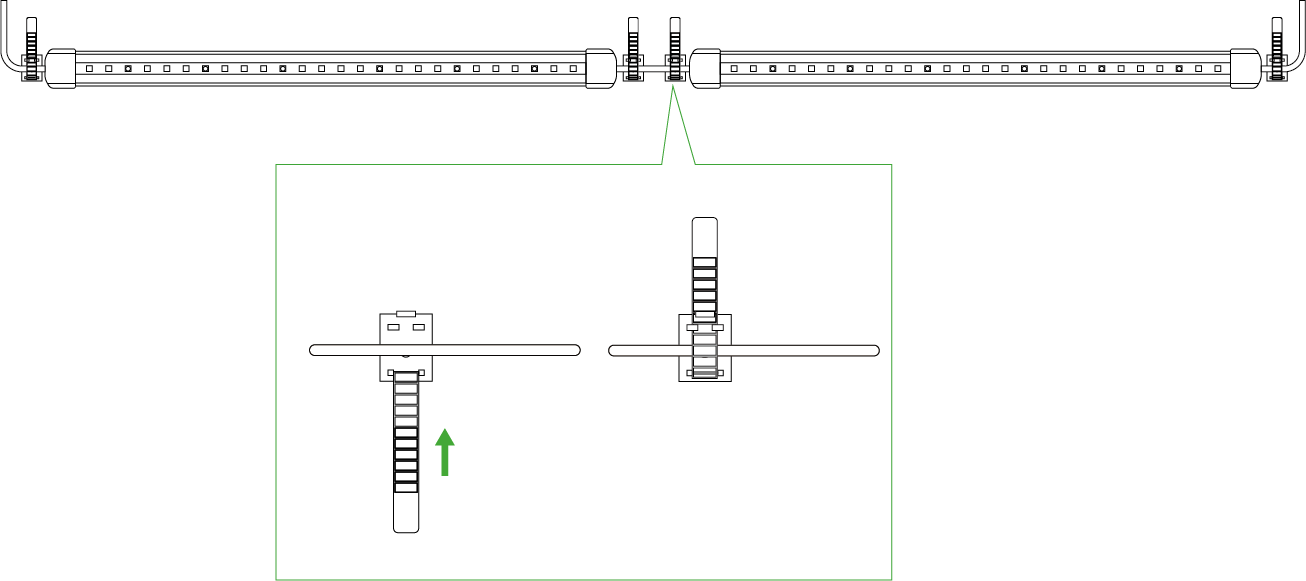

Use zip ties and fasteners to secure any excess cables to the support poles or tent fabric.

ca05ca29dd8e020ef2227293fda2e8b1

6eb5cd1af1d42b973efdb8f5cad04601

1388b590defdd50cdc8dca0582af66d8

How to daisy chain VSL-LRSF50-8

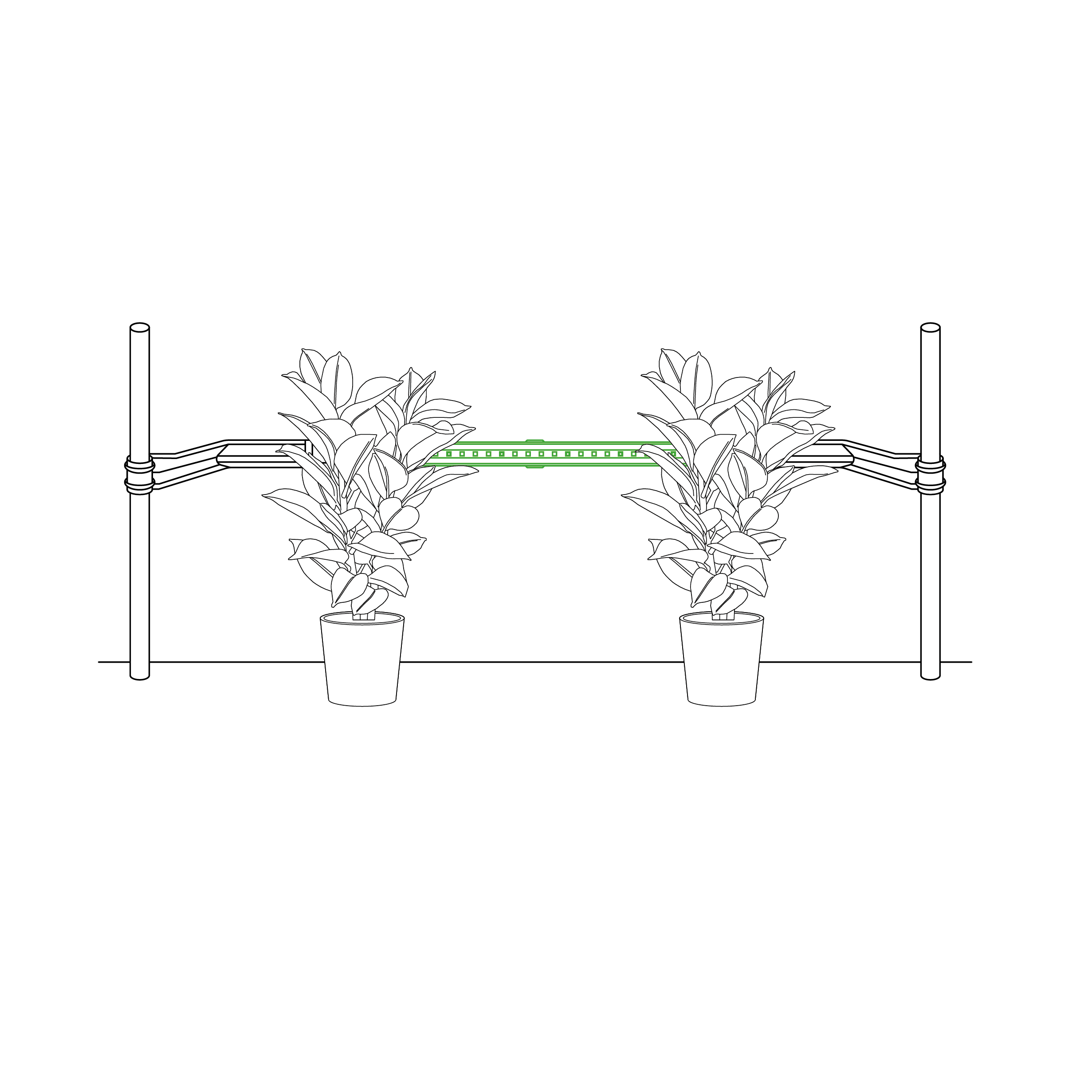

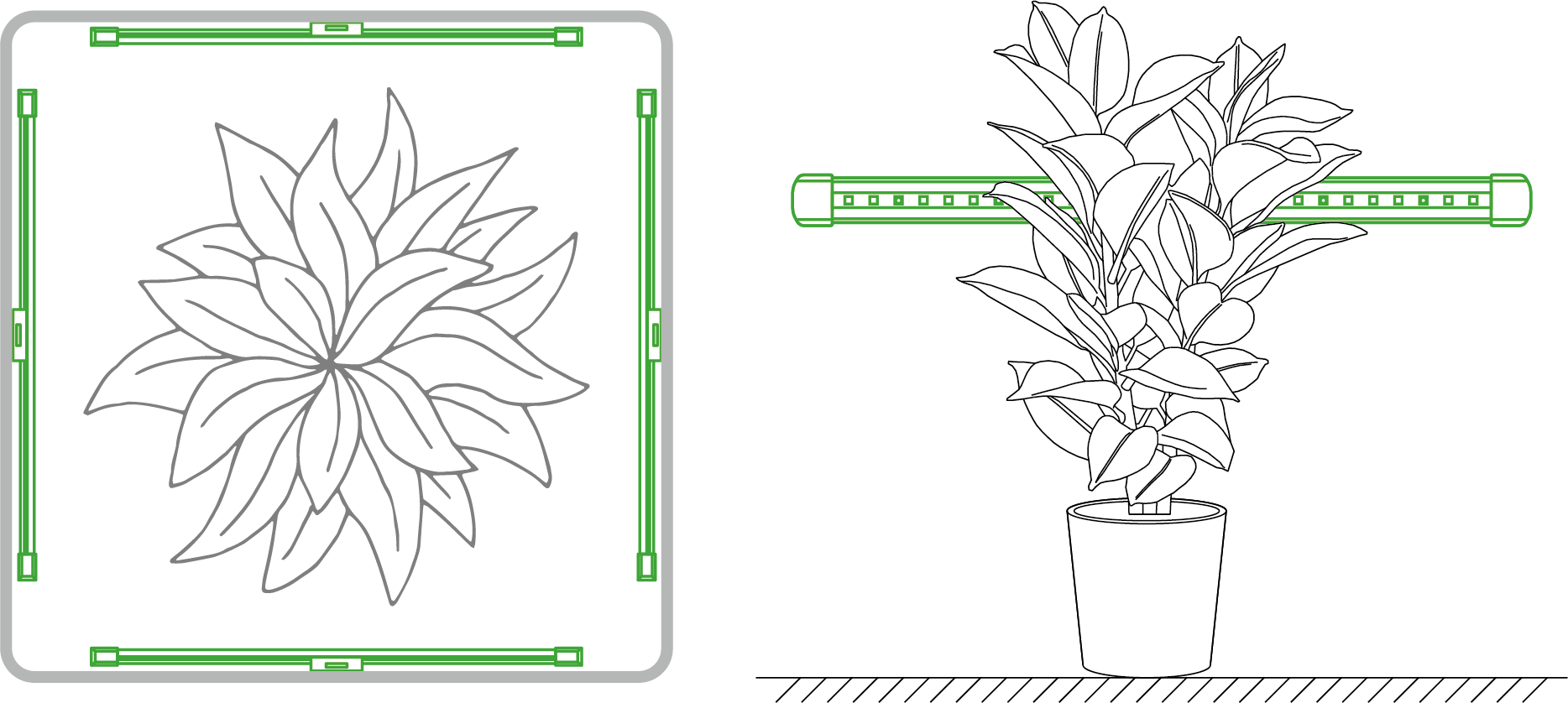

LumaRay side lighting Recommended Installation Distance for Side Supplemental LED Lighting.

Distance Between Light and Plant	Number of Light Bars	Dimming Level
2’’/5.1cm	1	60%
4’’/10.2cm	1	80%
6’’/15.2cm	1	100%
8’’/20.3cm	2	80%
10’’/25.1cm	2	100%

*Please keep more than 2''/5.1cm distance between light and plant.

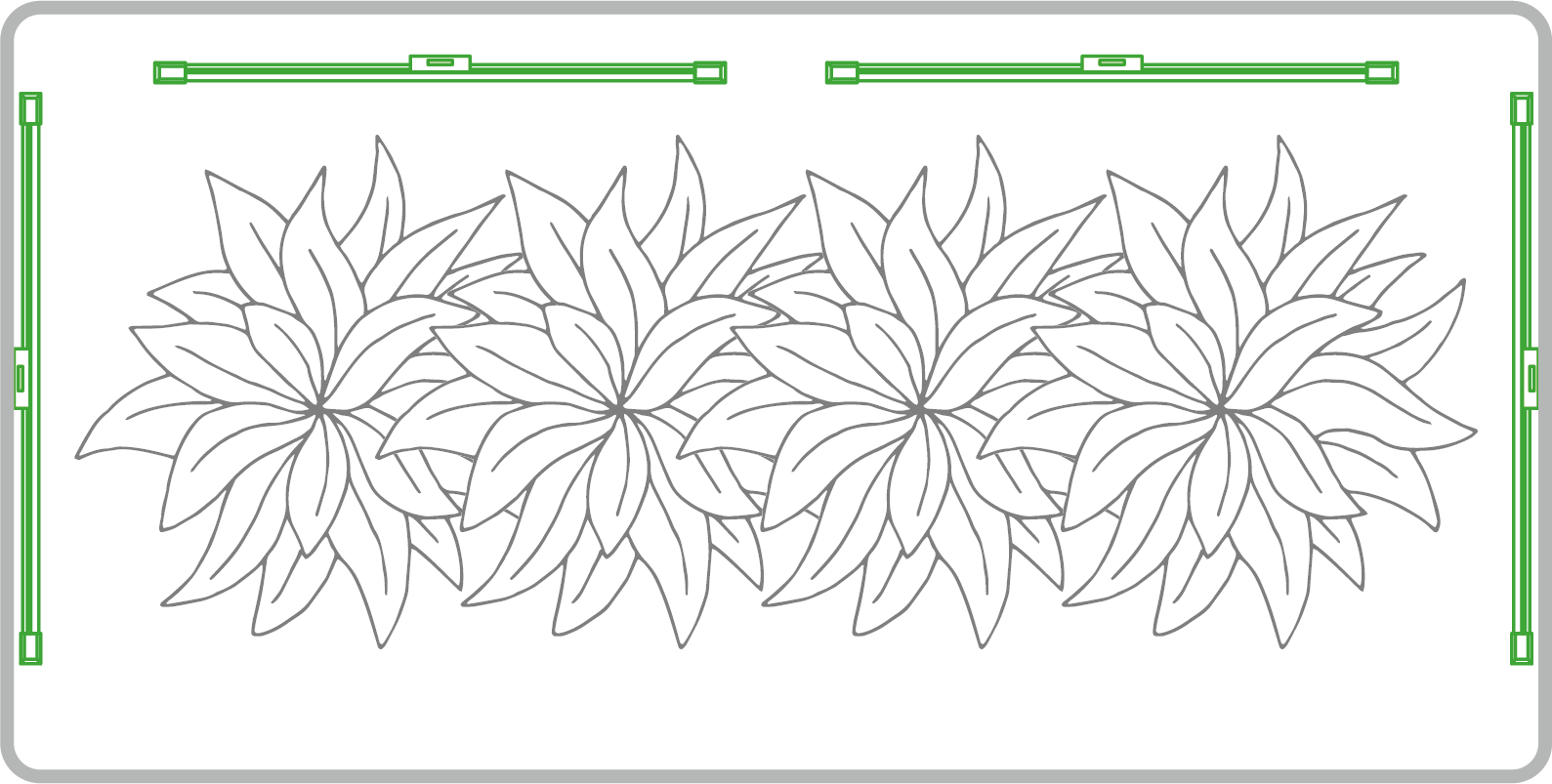

4x2 Tent

2x2 Tent

Warranty

Vivosun provides a 3-year warranty against defects on all LumaRay products purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use.

Our warranty covers the replacement or refund of purchases that exhibit material defects within three years of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility. This policy does not extend to products that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.

Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This 3-year warranty reflects our confidence in the durability of our products under normal use. If any product defects are found, customers are encouraged to contact us immediately. Your satisfaction is our top priority, and we are committed to resolving any issues in a professional and timely manner.

Warning

This appliance can be used by children aged 8 years and above, as well as by individuals with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, provided they have been supervised or instructed on the safe use of the appliance and understand the associated hazards.
User maintenance should not be carried out by children without supervision.
Keep the appliance and its cord out of reach of children under 8 years old.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
Never touch the plug or outlet if your hands are wet.
Use only the cable provided with the device.
Acceptable operating temperatures range from -20°C to 40°C (-4°F to 104°F).
Avoid looking directly at the lights when they are turned on.
Don’t use water or any detergent to clean the product.
If your product is damaged, stop use immediately and contact us for support. Disassembly or modification without Vivosun’s expressed permission will void the product warranty.

3ac8ca6c507d9c968f386431da42ef14

DO NOT dispose of this product with your regular trash. Electrical appliances contain hazardous materials that can harm the environment if not disposed of properly.

Please contact your local government for information on nearby drop-off centers or recycling programs that accept electronic waste.
