English
LumaRay Under Canopy Light Manual
Model Name
-
VSL-LRUC100
-
VSL-LRUC100-2
Product Contents
VSL-LRUC100

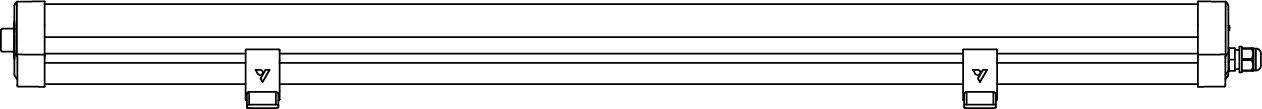

| Image | Quantity |
|---|---|
|
1pc |
|
4pcs |
|
2pcs |
|
2pcs |
|
1pc |
|
1pc |
VSL-LRUC100-2
| Image | Quantity |
|---|---|
|
2pcs |
|
8pcs |
|
4pcs |
|
4pcs |
|
2pcs |
|
2pcs |
Installation

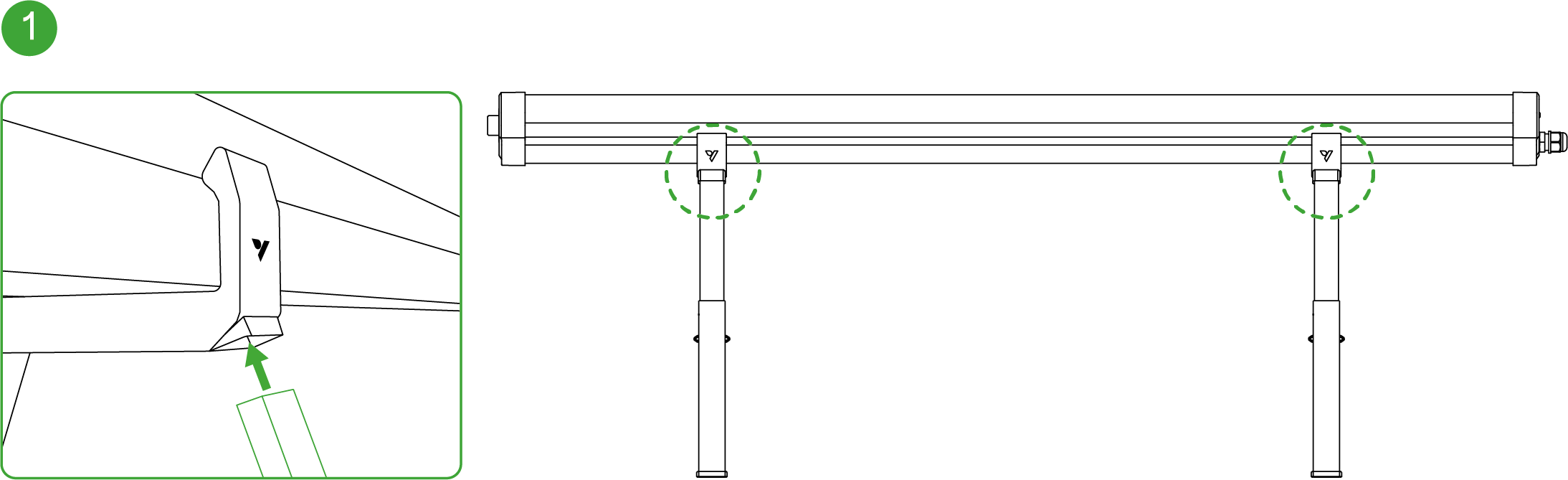

Option 1: Free-standing

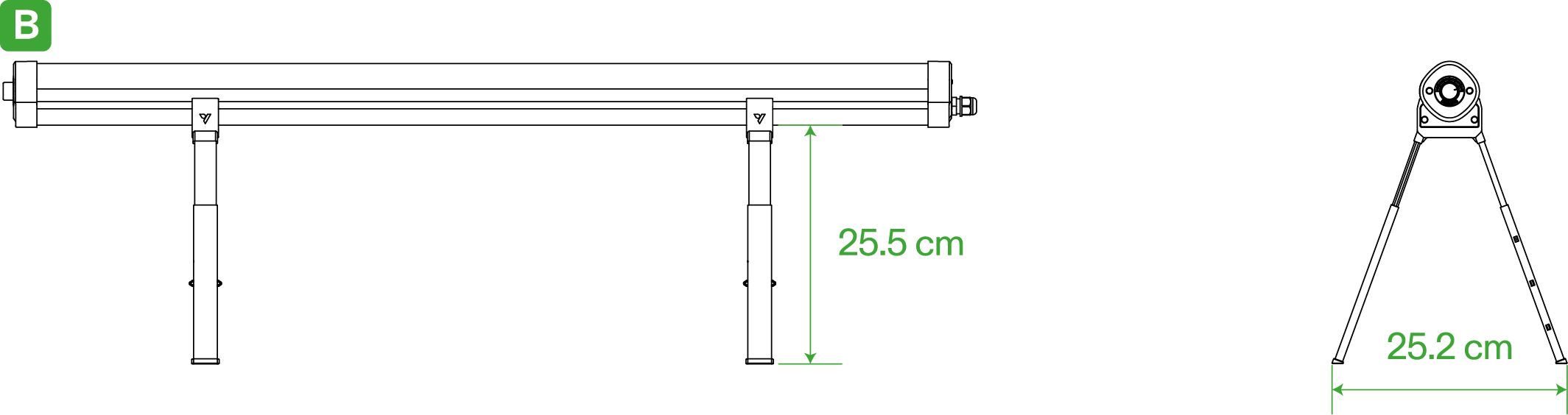

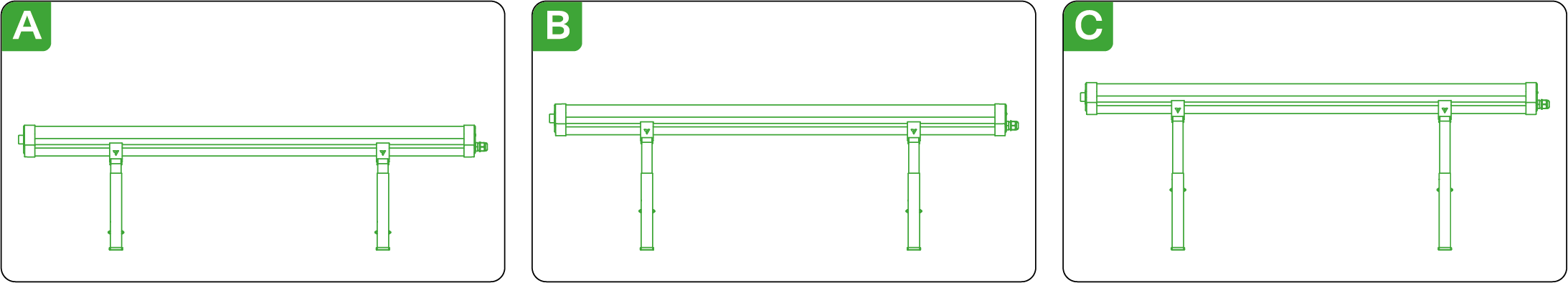

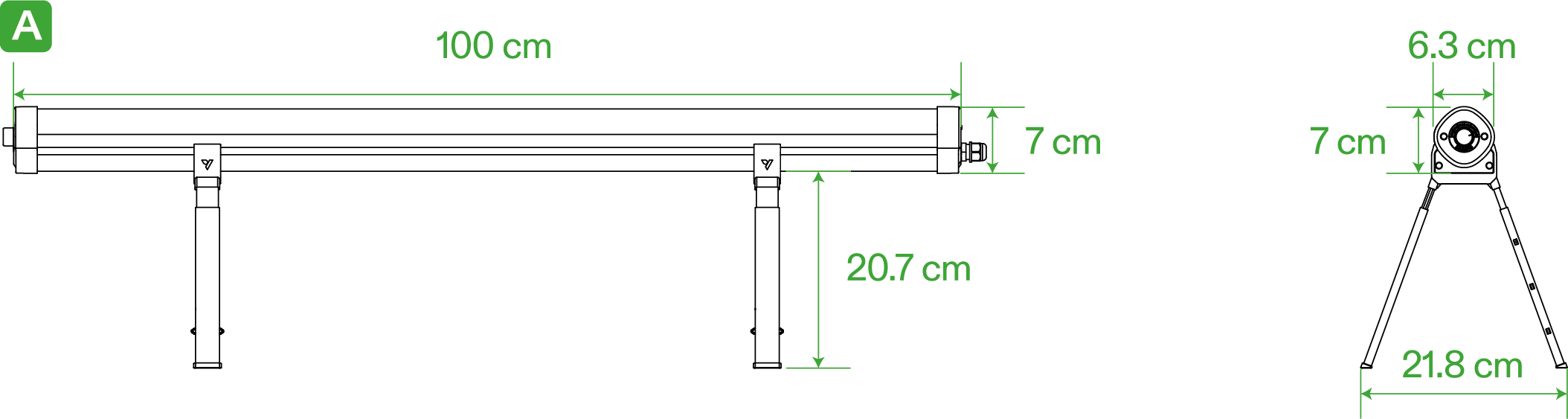

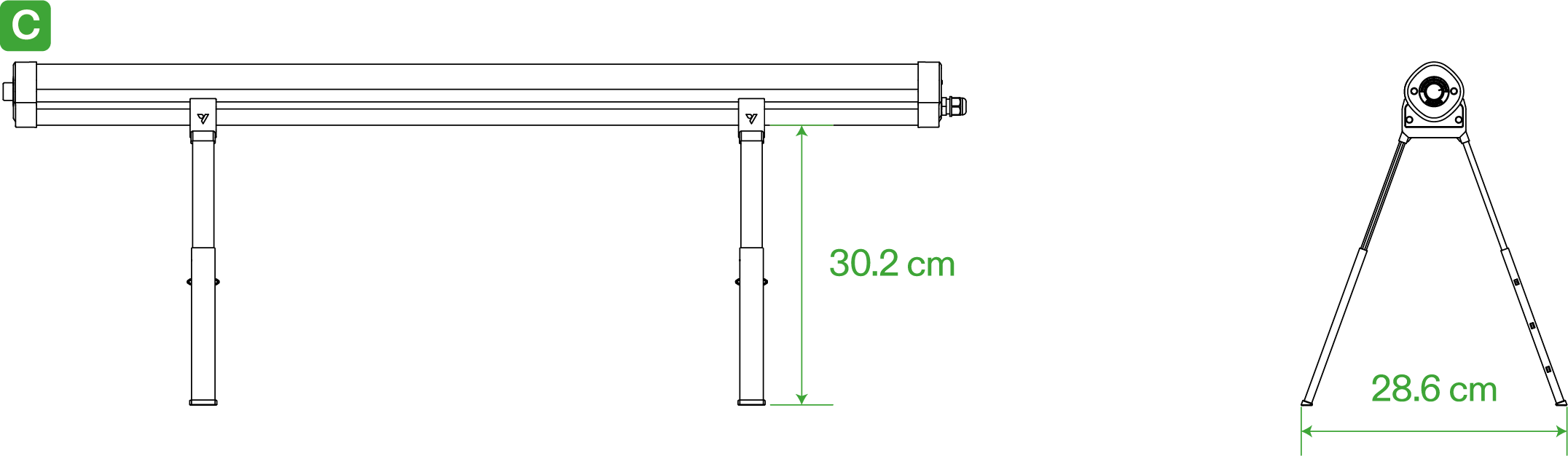

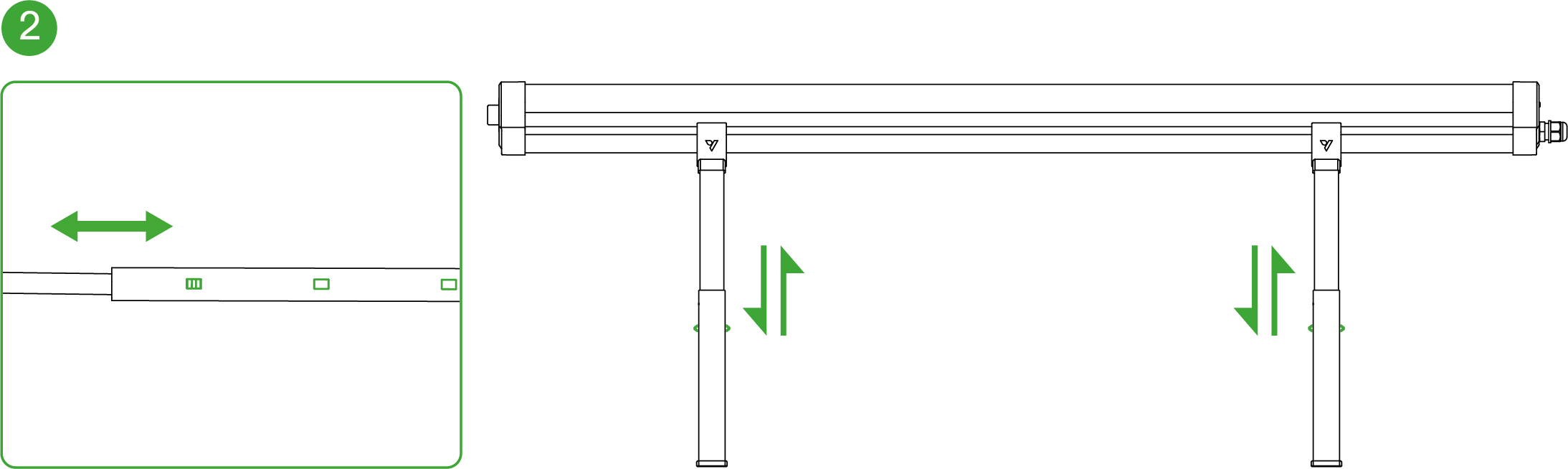

Three Adjustable Heights

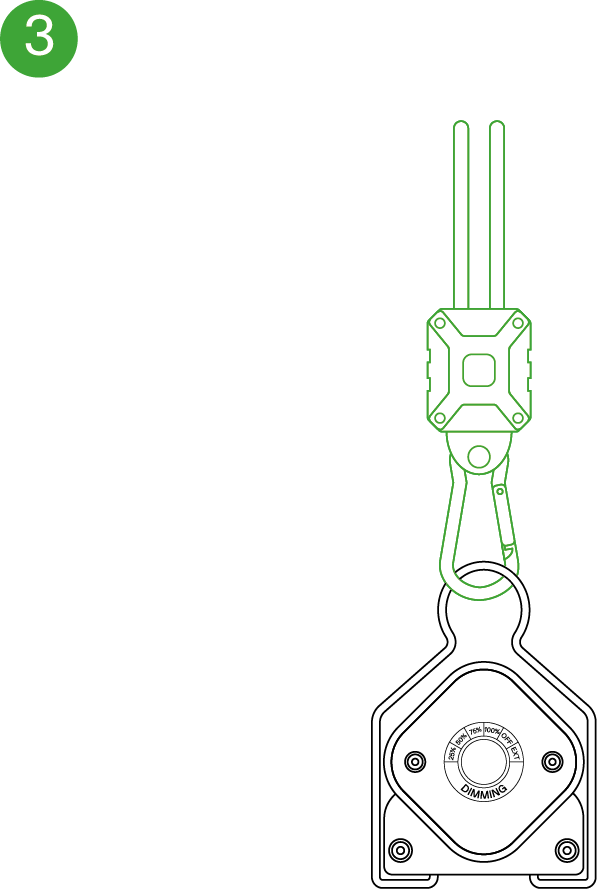

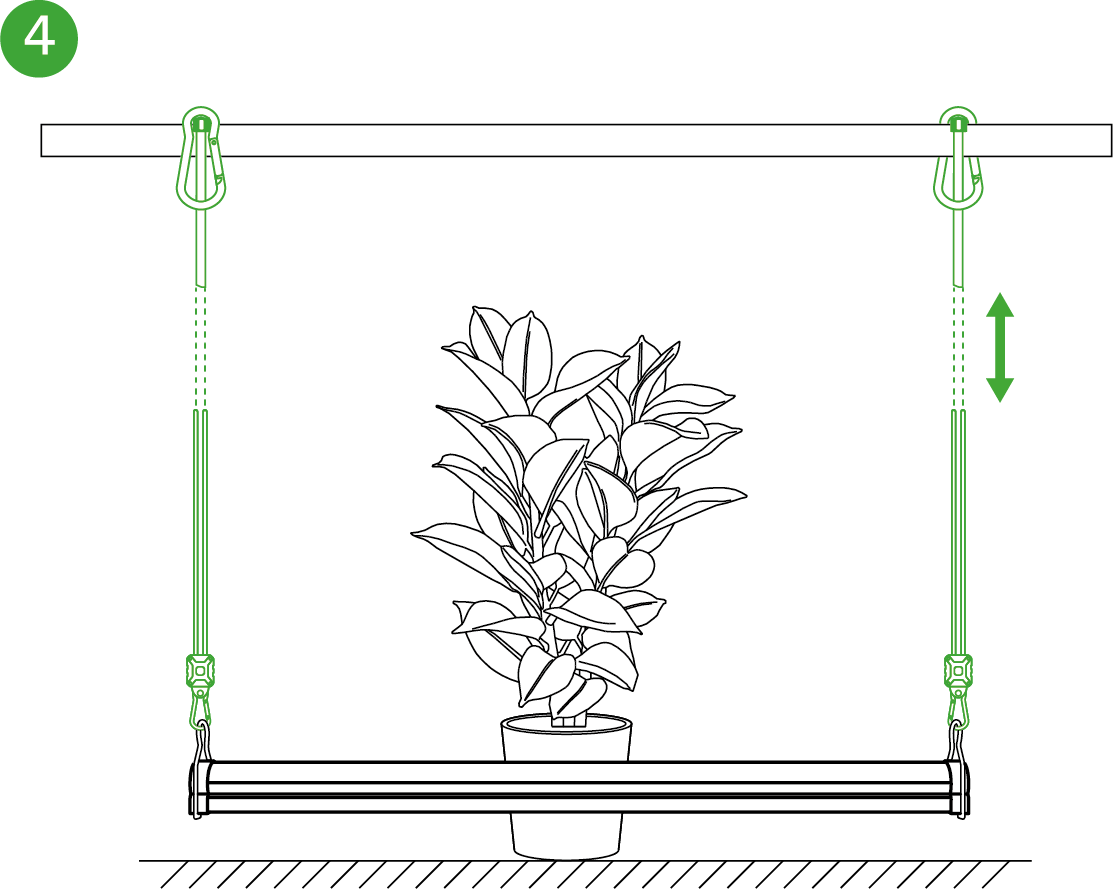

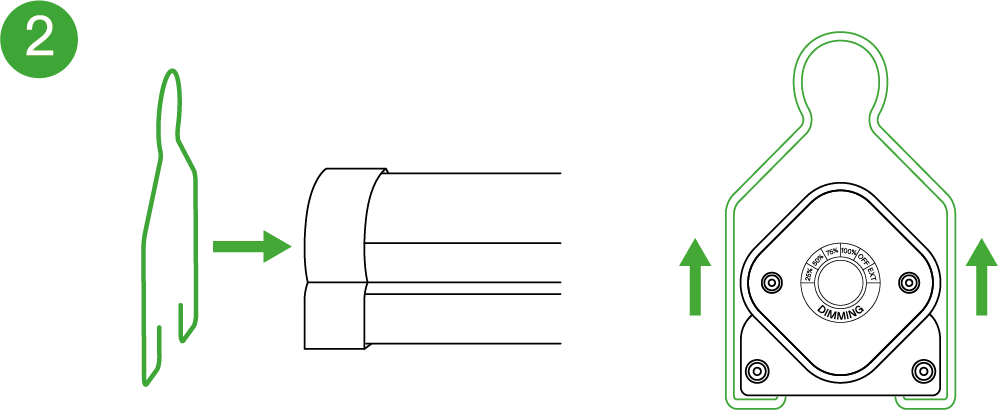

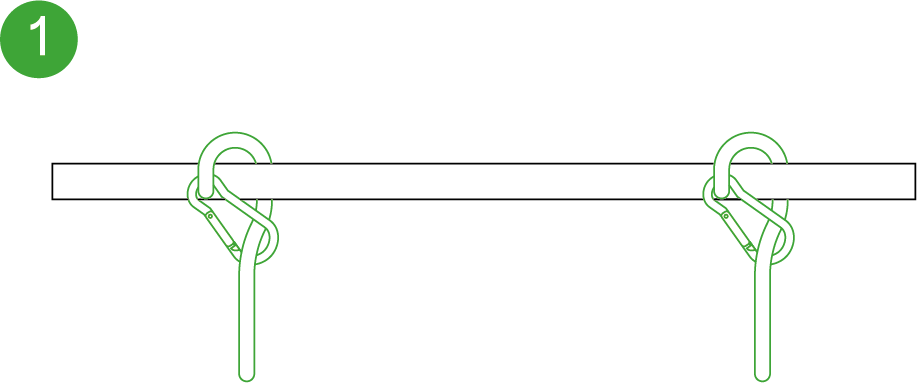

Option 2 : Hanging
|
|
|
|

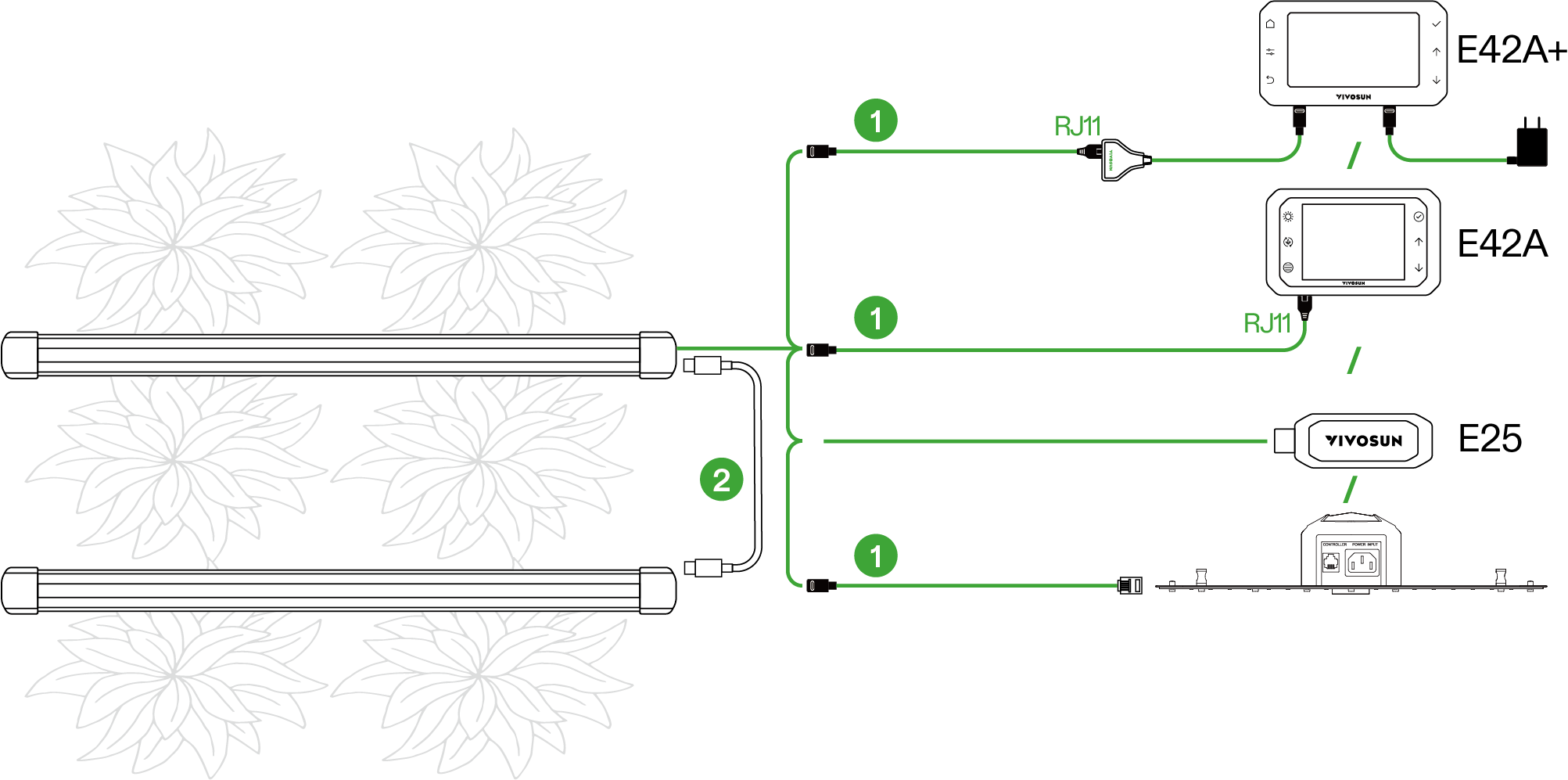

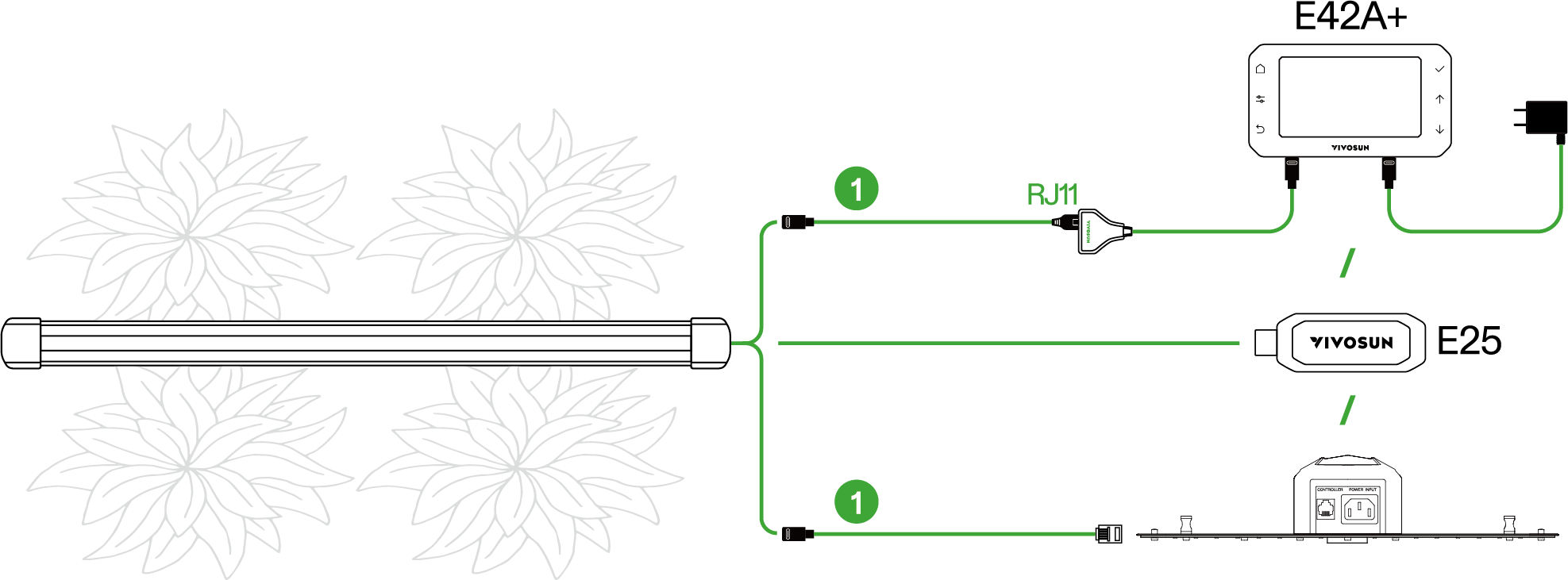

Connection to Controllers and Other Lights
When connecting to E42A/E42A+, please ensure your Lumaray Under Canopy is connected to the RJ11 port or Type C to RJ11 & RJ45 Light Coverter, using the Type C to RJ11 cable (
). Please remember to set the dimming knob on your light to “EXT.” If you daisy-chain multiple lights, all must have their dimming knobs set to “EXT.”
When connecting to E25, please use the Type C port.

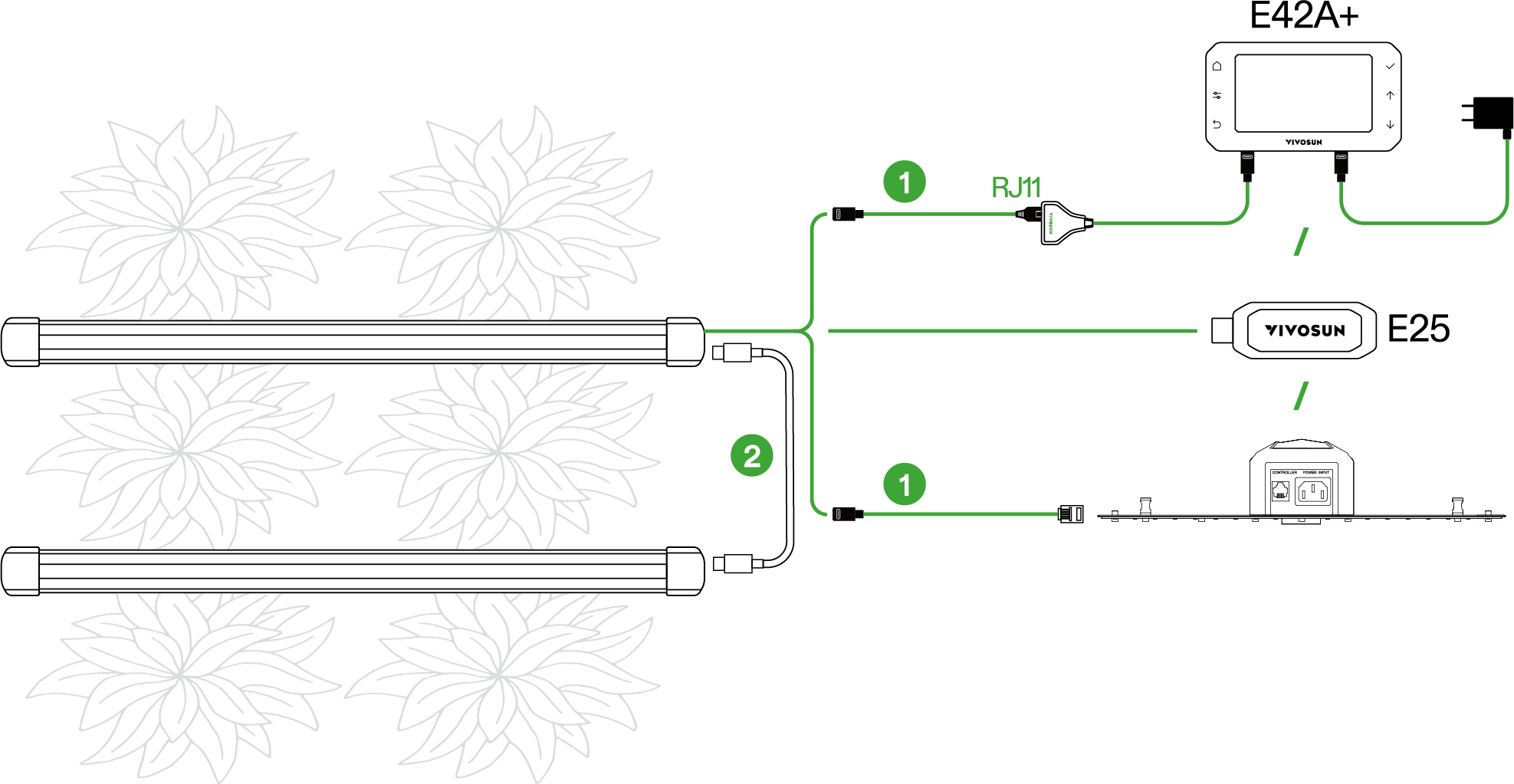

When connecting multiple Lumaray Under Canopy lights, please use the Type C cable (
).
Specifications
Input |
120–240VAC 50/60/Hz MAX 1A |
Power |
100W |
Dimming |
Manual Mode/GrowHub: 25%/50%/75%/100%/OFF Vivosun APP: 25%-100%/OFF |
Daisy Chainning |
6pcs |
Warning
-
This product can be used by children aged 8 years and older, as well as by individuals with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, provided they have been supervised or instructed on the safe use of the appliance and understand the associated hazards.
-
Keep the product and its cord out of reach of children.Children must not play with the product.User maintenance must not be carried out by children without supervision.
-
Never touch the plug or outlet with wet hands.
-
Use only the cable provided with the device.
-
Operating temperatures must remain between -20°C and 35°C (-4°F to 95°F).
-
Avoid looking directly at the lights when they are on.
-
Avoid touching the LED diodes when adjusting the light.
-
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
-
A mechanical ventilation or cooling system is required to maintain the temperature within the growing space below 95°F (35℃) when this product is in operation.
-
Cords are used within their rated ampacity as determined for the maximum temperature of the installed environment specified in the instructions.
-
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
-
For indoor use only.
-
Do not use water or detergent to clean the product.
DO NOT dispose of this product with your regular trash. Electrical appliances contain hazardous materials that can harm the environment if not disposed of properly. Please contact your local government for information on nearby drop-off centers or recycling programs that accept electronic waste.
Warranty
Vivosun offers a 3-year warranty on all LumaRay products purchased directly from us or through authorized dealers. This warranty reflects our commitment to addressing any manufacturing defects or premature failures that occur under normal use.
The warranty covers replacement or refund for any product that exhibits material defects within three years of the original purchase date. To initiate a claim, customers must provide proof of purchase for verification.
Please note that this policy does not cover damage resulting from misuse, abuse, or intentional harm. It also excludes normal wear and tear and cosmetic imperfections such as minor scratches.
All LumaRay products undergo rigorous quality testing, and this warranty stands as a testament to their reliability and durability in everyday use.
If you discover a defect, we encourage you to contact us right away. Your satisfaction is our priority, and we’re committed to resolving issues promptly and professionally.
